+2D Parallax
+===========
+
+Introduction
+------------
+
+Parallax is an effect used to simulate depth by having textures move at different speeds relative to the camera. Godot
+provides the :ref:`Parallax2D<class_parallax2d>` node to achieve this effect. It can still be easy to get tripped
+up though, so this page provides in-depth descriptions of some properties and how to fix some common mistakes.
+
+.. note::
+    This page only covers how to use :ref:`Parallax2D<class_parallax2d>`. This node is still experimental, so the
+    implementation might change in future versions of Godot. However, it is still recommended to use over the
+    :ref:`ParallaxLayer<class_parallaxlayer>` and :ref:`ParallaxBackground<class_parallaxbackground>` nodes.
+
+Scroll scale
+------------
+
+The backbone of the parallax effect is the :ref:`scroll_scale <class_parallax2d_property_scroll_scale>` property.
+It works as a scroll-speed multiplier, allowing layers to move at a different speed than the camera for each axis set.
+A value of 1 makes the parallax node scroll at the same speed as the camera. If you want your image to look further away
+when scrolling, use a value lower than 1, with 0 bringing it to a complete stop. If you want something to appear closer
+to the camera, use a value higher than 1, making it scroll faster.
+
+.. image:: img/2d_parallax_size_viewport.webp
+
+The scene above is comprised of five layers. Some good :ref:`scroll_scale <class_parallax2d_property_scroll_scale>`
+values might be:
+
+- ``(0.7, 1)`` - Forest
+- ``(0.5, 1)`` - Hills
+- ``(0.3, 1)`` - Lower Clouds
+- ``(0.2, 1)`` - Higher Clouds
+- ``(0.1, 1)`` - Sky
+
+The video below displays how these values affect scrolling while in-game:
+
+.. video:: video/2d_parallax_scroll_scale.webm
+   :alt: A scene with five layers scrolling at different speeds
+   :autoplay:
+   :loop:
+   :muted:
+
+Infinite repeat
+---------------
+
+:ref:`Parallax2D<class_parallax2d>` provides a bonus effect that gives textures the illusion of repeating infinitely.
+:ref:`repeat_size<class_parallax2d_property_repeat_size>` tells the node to snap its position forward or back when the
+camera scrolls by the set value. This effect is achieved by adding a single repeat to all the child canvas items offset
+by the value. While the camera scrolls between the image and its repeat, it invisibly snaps back giving the appearance
+of a looping image.
+

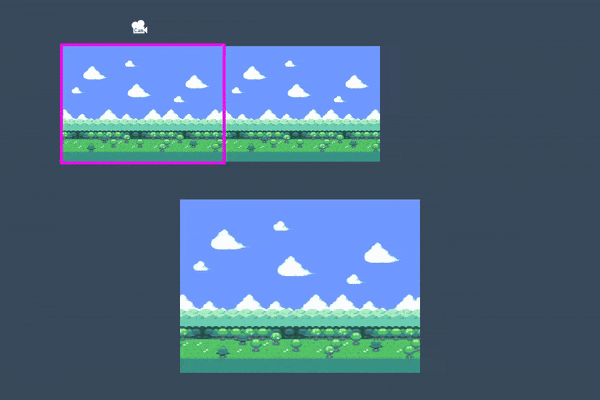

+.. image:: img/2d_parallax_scroll.gif
+
+Being a delicate effect, it's easy for unfamiliar users to make mistakes with their setup. Let's go over the "how" and
+"why" of a few common problems users encounter.
+
+Poor sizing
+~~~~~~~~~~~
+
+The infinite repeat effect is easiest to work with when you have an image designed to repeat seamlessly and is the same
+size or larger than your viewport **before** setting the :ref:`repeat_size<class_parallax2d_property_repeat_size>`. If
+you aren't able to obtain assets that are designed for this task, there are some other things you can do to better
+prepare your image in regards to size.
+
+Here is an example of a texture that is too small for its viewport:
+
+.. image:: img/2d_parallax_size_bad.webp
+

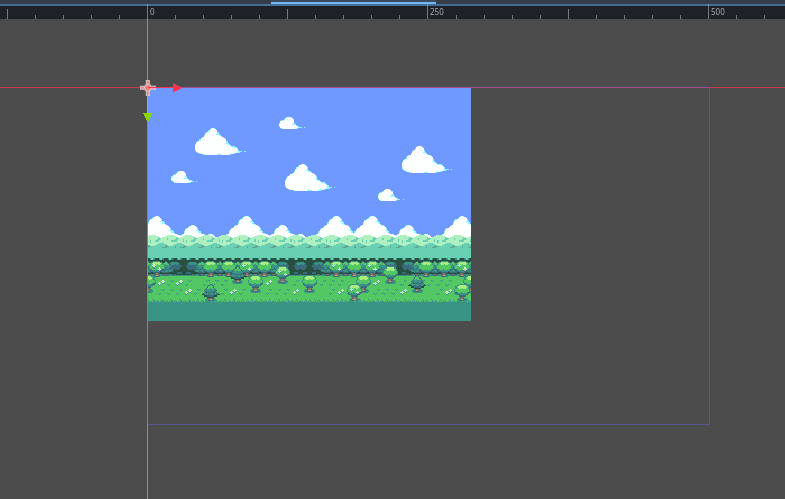

+We can see that the viewport size is 500x300 but the texture is 288x208. If we set the
+:ref:`repeat_size<class_parallax2d_property_repeat_size>` to the size of our image, the infinite repeat effect doesn't
+scroll properly because the original texture doesn't cover the viewport. If we set the
+:ref:`repeat_size<class_parallax2d_property_repeat_size>` to the size of the viewport, we have a large gap. What can we
+do?
+
+Make the viewport smaller
+^^^^^^^^^^^^^^^^^^^^^^^^^
+
+The simplest answer is to make the viewport the same size or smaller than your textures. Click on
+``Project -> Project Settings -> Window`` and change the viewport height and width to match your background.
+
+.. image:: img/2d_parallax_size_viewport.webp
+
+Scale the Parallax2D
+^^^^^^^^^^^^^^^^^^^^
+
+If you're not aiming for a pixel-perfect style, or don't mind a little blurriness, you may opt to scale the textures
+larger to fit your screen. Set the :ref:`scale<class_node2d_property_scale>` of the :ref:`Parallax2D<class_parallax2d>`,
+and all child textures scale with it.
+
+Scale the child nodes
+^^^^^^^^^^^^^^^^^^^^^
+
+Similar to scaling the :ref:`Parallax2D<class_parallax2d>`, you can scale your :ref:`Sprite2D<class_sprite2d>` nodes to
+be large enough to cover the screen. Keep in mind that some settings like
+:ref:`Parallax2D.repeat_size<class_parallax2d_property_repeat_size>` and
+:ref:`Sprite2D.region_rect<class_sprite2d_property_region_rect>` do not take scaling into account, so it's necessary to
+adjust these values based on the scale.
+
+.. image:: img/2d_parallax_size_scale.webp
+
+Repeat the textures
+^^^^^^^^^^^^^^^^^^^
+
+You can also start off on the right foot by preparing child nodes earlier in the process. If you have a
+:ref:`Sprite2D<class_sprite2d>` you'd like to repeat, but is too small, you can do the following to repeat it:
+
+- set :ref:`texture_repeat<class_canvasitem_property_texture_repeat>` to :ref:`CanvasItem.TEXTURE_REPEAT_ENABLED<class_canvasitem_constant_TEXTURE_REPEAT_ENABLED>`
+- set :ref:`region_enabled<class_sprite2d_property_region_enabled>` to ``true``
+- set the :ref:`region_rect<class_sprite2d_property_region_rect>` to a multiple of the size of your texture large enough to cover the viewport.
+
+Below, you can see that repeating the image twice makes it large enough to cover the screen.
+
+.. image:: img/2d_parallax_size_repeat.webp
+
+Poor positioning
+~~~~~~~~~~~~~~~~
+
+It's common to see users mistakenly set all of their textures to be centered at ``(0,0)``:
+

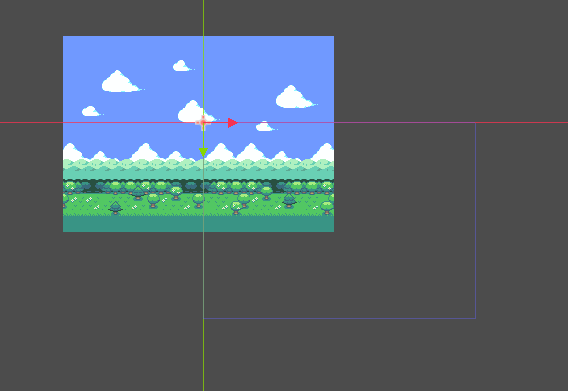

+.. image:: img/2d_parallax_single_centered.webp
+
+This creates problems with the infinite repeat effect and should be avoided. The "infinite repeat canvas" starts at
+``(0,0)`` and expands down and to the right to the size of the :ref:`repeat_size<class_parallax2d_property_repeat_size>`
+value.
+
+.. image:: img/2d_parallax_single_expand.webp
+
+If the textures are centered on the ``(0,0)`` crossing, the infinite repeat canvas is only partly covered, so it
+only partly repeats.
+
+Would increasing ``repeat_times`` fix this?
+^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
+
+Increasing :ref:`repeat_times<class_parallax2d_property_repeat_times>` technically *would* work in some scenarios, but
+is a brute force solution and not the problem it is designed to solve (we'll go over this in a bit). A better fix is to
+understand how the repeat effect works and set up the parallax textures appropriately to begin with.
+
+First, check to see if any textures are spilling over onto the negative parts of the canvas. Make sure the textures
+used in the parallax nodes fit inside the "infinite repeat canvas" starting at ``(0,0)``. That way, if
+:ref:`Parallax2D.repeat_size<class_parallax2d_property_repeat_size>` is set correctly, it should look something like
+this, with one single loop of the image the same size or larger than the viewport:
+
+.. image:: img/2d_parallax_repeat_good_norect.webp
+
+If you think of how the image scrolls across the screen, it starts by displaying what's inside the red rectangle
+(determined by :ref:`repeat_size<class_parallax2d_property_repeat_size>`), and when it reaches what's inside the yellow
+rectangle it zips the image forward to give the illusion of scrolling forever.
+
+.. image:: img/2d_parallax_repeat_good.webp
+
+If you have the image positioned away from the "infinite repeat canvas", when the camera reaches the yellow rectangle,
+half of the image is cut off before it jumps forward like in the image below:
+

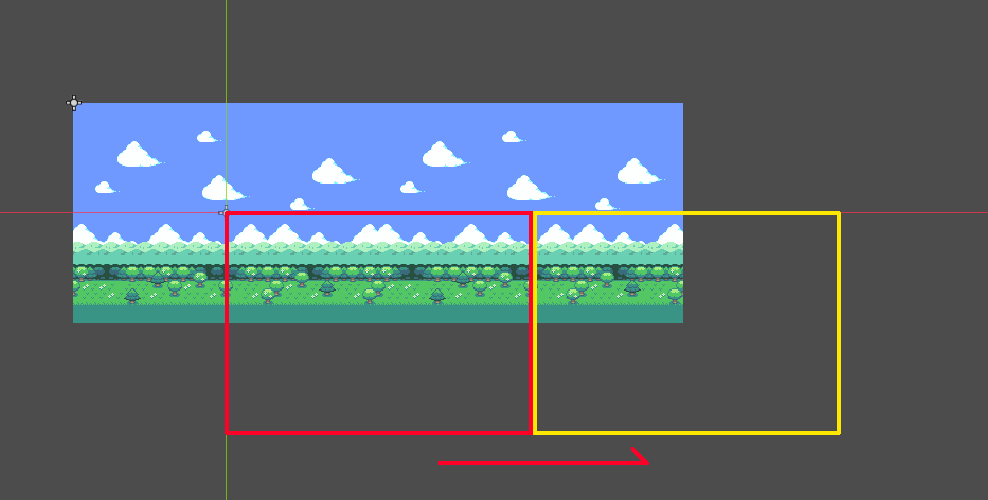

+.. image:: img/2d_parallax_repeat_bad.webp
+
+Scroll offset
+-------------
+
+If your parallax textures are already working correctly, but you prefer it to start at a different point,
+:ref:`Parallax2D<class_parallax2d>` comes with a :ref:`scroll_offset<class_parallax2d_property_scroll_offset>` property
+used to offset where the infinite repeat canvas starts. As an example, if your image is 288x208, setting
+the :ref:`scroll_offset<class_parallax2d_property_scroll_offset>` to ``(-144,0)`` or ``(144,0)`` allows it to begin
+halfway across the image.
+
+Repeat times
+------------
+
+Ideally, following this guide, your parallax textures are large enough to cover the screen even when zoomed out.
+Until now, we have had a perfectly fitting 288x208 texture inside of a 288x208 viewport. However, problems
+occur when we zoom out by setting the :ref:`Camera2D.zoom<class_camera2d_property_zoom>` to ``(0.5, 0.5)``:
+
+.. image:: img/2d_parallax_zoom_single.webp
+
+Even though everything is correctly set for the viewport at the default zoom level, zooming out makes it smaller than
+the viewport, breaking the infinite repeat effect. This is where
+:ref:`repeat_times<class_parallax2d_property_repeat_times>` can help out. Setting a value of ``3`` (one extra
+repeat behind and in front), it is now large enough to accommodate the infinite repeat effect.
+
+.. image:: img/2d_parallax_zoom_repeat_times.webp
+
+If these textures were meant to be repeated vertically, we would have specified a ``y`` value for the
+:ref:`repeat_size<class_parallax2d_property_repeat_size>`. The
+:ref:`repeat_times<class_parallax2d_property_repeat_times>` would automatically add a repeat above and below as well.
+This is only a horizontal parallax, so it leaves an empty block above and below the image. How do we solve this? We
+need to get creative! In this example, we stretch the sky higher, and grass sprite lower. The textures now support the
+normal zoom level and zooming out to half size.
+
+.. image:: img/2d_parallax_zoom_repeat_adjusted.webp
+
+Split screen
+------------
+
+Most tutorials for making a split screen game in Godot begin by writing a small script to assign
+the :ref:`Viewport.world_2d<class_viewport_property_world_2d>` of the first SubViewport to the second, so they have a
+shared display. Questions often pop up about how to share a parallax effect between both screens.
+
+The parallax effect fakes a perspective by moving the positions of different textures in relation to the camera. This is
+understandably problematic if you have multiple cameras, because your textures can't be in two places at once!
+
+This is still achievable by cloning the parallax nodes into the second (or third or fourth)
+:ref:`SubViewport<class_subviewport>`. Here's how it looks for a two player game:
+
+.. image:: img/2d_parallax_splitscreen.webp
+
+Of course, now both backgrounds show in both SubViewports. What we want is for some nodes to be visible in one viewport
+but not another. While technically possible, this is not a feature officially supported by Godot at the moment. There is
+currently a proposal to make this much simpler, so please stay tuned.
+
+As a workaround, you can do the following:
+
+- Set the first SubViewport's :ref:`canvas_cull_mask<class_viewport_property_canvas_cull_mask>` to only layer 1, so it displays all nodes with a :ref:`visibility_layer<class_canvasitem_property_visibility_layer>` of layer 1.
+- Set the second SubViewport's :ref:`canvas_cull_mask<class_viewport_property_canvas_cull_mask>` to only layer 2, so it displays all nodes with a :ref:`visibility_layer<class_canvasitem_property_visibility_layer>` of layer 2.
+- Set the :ref:`visibility_layer<class_canvasitem_property_visibility_layer>` of every node you want to display in both viewports to both layers 1 and 2.
+- Set the :ref:`visibility_layer<class_canvasitem_property_visibility_layer>` of the :ref:`Parallax2D<class_parallax2d>` node and all its descendants in the first :ref:`SubViewport<class_subviewport>` to layer 1.
+- Set the :ref:`visibility_layer<class_canvasitem_property_visibility_layer>` of the :ref:`Parallax2D<class_parallax2d>` node and all its descendants in the second :ref:`SubViewport<class_subviewport>` to layer 2.
+
+Previewing in the editor
+------------------------
+
+Prior to 4.3, the recommendation was to place every layer in their own
+:ref:`ParallaxBackground<class_parallaxbackground>`, enable the
+:ref:`follow_viewport_enabled<class_canvaslayer_property_follow_viewport_enabled>` property, and scale the individual
+layer. This method has always been tricky to get right, but is still achievable by using a
+:ref:`CanvasLayer<class_canvaslayer>` instead of a :ref:`ParallaxBackground<class_parallaxbackground>`.
+
+.. note::
+    Another recommendation is `KoBeWi's "Parallax2D Preview" addon <https://github.com/KoBeWi/Godot-Parallax2D-Preview>`_.
+    It provides a few different preview modes and is very handy!
