Document Theme type variations

tutorials/ui/gui_skinning.rst

@@ -147,6 +147,9 @@ control node in the single ``Theme`` resource.
    input manually the name of a variation that is defined outside of those
    two places, but it is recommended to keep all variations to the project theme.

+You can learn more about creating and using theme type variations in a
+:ref:`dedicated article <doc_gui_theme_type_variations>`.
+
 Customizing a control
 ---------------------


tutorials/ui/gui_theme_type_variations.rst

@@ -0,0 +1,75 @@
+.. _doc_gui_theme_type_variations:
+
+Theme type variations
+=====================
+
+When designing a user interface there may be times when a :ref:`Control <class_Control>` node
+needs to have a different look than what is normally defined by a :ref:`Theme <class_Theme>`.
+Every control node has theme property overrides, which allow you to redefine the styling for
+each individual UI element.
+
+.. figure:: img/themecheck.png
+   :align: center
+
+This approach quickly becomes hard to manage, if you need to share the same custom look
+between several controls. Imagine that you use gray, blue, and red variants of :ref:`Button <class_Button>`
+throughout your project. Setting it up every time you add a new button element to your interface
+is a tedious task.
+
+To help with the organization and to better utilize the :ref:`power of themes <doc_gui_skinning>`
+you can use theme type variations. These work like normal theme types, but instead
+of being self-sufficient and standalone they extend another, base type.
+
+Following the previous example, your theme can have some styles, colors, and fonts
+defined for the ``Button`` type, customizing the looks of every button element in your UI.
+To then have a gray, red, or blue button you would create a new type, e.g. ``GrayButton``, and
+mark it as a variation of the base ``Button`` type.
+
+Type variations can replace some aspects of the base type, but keep others.
+They can also define properties that the base style hasn't defined. For example,
+your ``GrayButton`` can override the ``normal`` style from the base ``Button``
+and add ``font_color`` that ``Button`` has never defined. The control will use
+a combination of both types giving priority to the type variation.
+
+.. note::
+   The way controls resolve what theme items they use from each type and each
+   theme is better described in the :ref:`Customizing a project <doc_gui_theme_in_project>`
+   section of the "Introduction to GUI skinning" article.
+
+Creating a type variation
+-------------------------
+

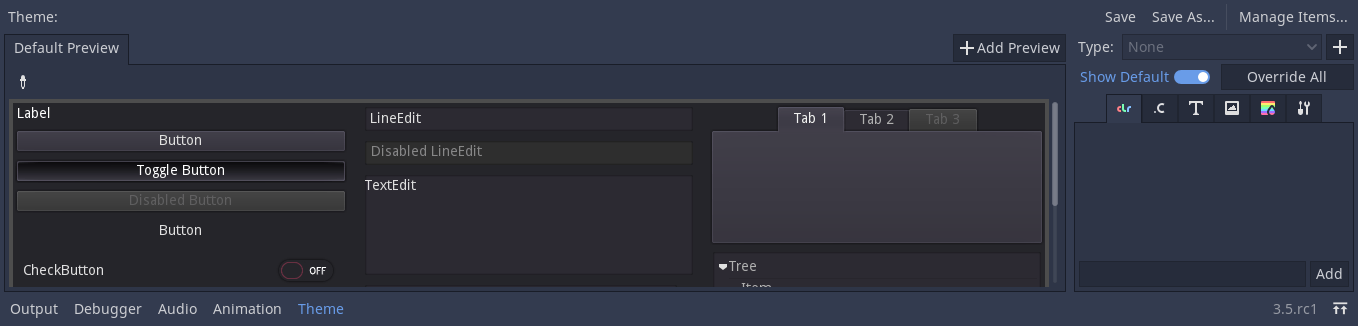

+To create a type variation open the theme editor, then click the plus icon
+next to the **Type** dropdown on the right side of the editor. Type in what
+you want to name your theme type variation in the text box, then click **Add Type**.
+
+Below the **Type** dropdown are the property tabs. Switch to the tab with a wrench
+and screwdriver icon.
+
+.. figure:: img/base_type.png
+   :align: center
+
+Click on the plus icon next to the **Base Type** field. You can select the base type
+there, which would typically be the name of a control node class (e.g., ``Button``, ``Label``, etc).
+Type variations can also chain and extend other type variations. This works in the
+same way control nodes inherit styling of their base class. For example, ``CheckButton``
+inherits styles from ``Button`` because corresponding node types extend each other.
+
+After you select the base type, you should now be able to see its properties on the other
+tabs in the theme editor. You can edit them as usual.
+
+Using a type variation
+----------------------
+
+Now that a type variation has been created you can apply it to your nodes.
+In the inspector dock, under the **Theme** property of a control node,
+you can find the **Theme Type Variation** property. It is empty by default,
+which means that only the base type has an effect on this node.
+
+You can either select a type variations from a dropdown list, or input its name
+manually. Variations appear on the list only if the type variation belongs to
+the project-wide theme, which you can configure in the project settings. For
+any other case you have to input the name of the variation manually. Click on
+the pencil icon to the right. Then type in the name of the type variation and click the
+check mark icon or press enter. If a type variation with that name exists it
+will now be used by the node.

tutorials/ui/index.rst

@@ -52,6 +52,7 @@ explain the benefits of that system and how to set it up in your projects.

    gui_skinning
    gui_using_theme_editor
+   gui_theme_type_variations
    gui_using_fonts

 Control node tutorials
