Pārlūkot izejas kodu

Add script class docs

Will Nations 7 gadi atpakaļ
vecāks
revīzija
af7625768f

+ 18 - 3
getting_started/scripting/gdscript/gdscript_basics.rst

@@ -59,6 +59,10 @@ here's a simple example of how GDScript looks.

     extends BaseClass

+    # optional script class with optional icon
+
+    class_name MyClass, "res://path/to/optional/icon.svg"
+
     # Member Variables

     var a = 5
@@ -865,9 +869,13 @@ Classes
 ~~~~~~~

 By default, the body of a script file is an unnamed class and it can
-only be referenced externally as a resource or file. Class syntax is
-meant to be compact and can only contain member variables or
-functions. Static functions are allowed, but not static members (this is
+only be referenced externally as a resource or file. Users can also define
+an explicit name for a script using the 'class_name' keyword, optionally
+followed by a path to an image resource. Named scripts appear in Godot
+Engine's editor with their base class icon or the custom defined icon.
+
+Class syntax is meant to be very compact and can only contain member variables
+or functions. Static functions are allowed, but not static members (this is
 in the spirit of thread safety, since scripts can be initialized in
 separate threads without the user knowing). In the same way, member
 variables (including arrays and dictionaries) are initialized every time
@@ -878,11 +886,18 @@ Below is an example of a class file.
 ::

     # Saved as a file named 'myclass.gd'.
+
+    class_name MyClass

     var a = 5

     func print_value_of_a():
         print(a)
+
+    func print_script_three_times():
+        print(get_script())
+        print(ResourceLoader.load("res://myclass.gd"))
+        print(MyClass)

 Inheritance
 ^^^^^^^^^^^

+ 32 - 0
getting_started/step_by_step/scripting_continued.rst

@@ -381,3 +381,35 @@ The advantage of this two-step process is that a packed scene may be
 kept loaded and ready to use so that you can create as many
 instances as desired. This is especially useful to quickly instance
 several enemies, bullets, and other entities in the active scene.
+
+Script Classes
+--------------
+
+Godot has a "Script Class" feature to register individual scripts with the
+Editor. By default, unnamed scripts are only accessible by loading the file
+directly. Users name the script and give it an optional icon. These name-script
+pairings are then supplied to scripting languages in Godot. The named scripts
+that derive Node or Resource will show up in their respective creation dialogs
+in the Editor.
+
+At this time...
+
+- Only GDScript and NativeScript (C++ and other GDNative-powered languages) can register scripts.
+- Only GDScript creates global variables for each named script.
+
+.. tabs::
+ .. code-tab:: gdscript GDScript
+
+    extends Node
+
+    # Declare the class name here
+    class_name ScriptName, "res://path/to/optional/icon.svg"
+
+    func _ready():
+        var this = ScriptName           # script
+        var cppNode = MyCppNode.new()   # instance of a script
+
+        cppNode.queue_free()
+

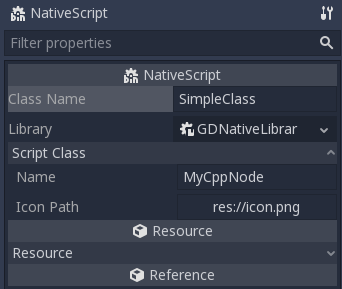

+.. image:: img/script_class_nativescript_example.png
+

BIN
img/script_class_nativescript_example.png
