When dealing with 3D assets, Godot has a flexible and configurable importer.
|
|
|
|
|
|
-Godot works with *scenes*. This means that the entire scene being worked on in your favorite 3D DCC will be
|
|
|
-transferred as close as possible.
|
|
|
+Godot works with *scenes*. This means that the entire scene being worked on in
|
|
|
+your favorite 3D modeling software will be transferred as close as possible.
|
|
|
|
|
|
Godot supports the following 3D *scene file formats*:
|
|
|
|
|
|
-- glTF 2.0 **(recommended)**. Godot has full support for both text (``.gltf``) and binary (``.glb``) formats.
|
|
|
+- glTF 2.0 **(recommended)**. Godot has full support for both text (``.gltf``)
|
|
|
+ and binary (``.glb``) formats.
|
|
|
- ``.blend`` (Blender). This works by calling Blender to export to glTF in a
|
|
|
transparent manner (requires Blender to be installed).
|
|
|
- DAE (COLLADA), an older format that is fully supported.
|
|
|
@@ -24,13 +25,12 @@ Godot supports the following 3D *scene file formats*:
|
|
|
This requires installing an external program that links against the proprietary FBX SDK,
|
|
|
so we recommend using other formats listed above (if suitable for your workflow).
|
|
|
|
|
|
-Just copy the scene file together with the texture to the project repository, and Godot will do a full import.
|
|
|
-
|
|
|
-It is important that the mesh is not deformed by bones when exporting. Make sure that the skeleton is reset to its T-pose
|
|
|
-or default rest pose before exporting with your favorite 3D editor.
|
|
|
+Copy the scene file together with the textures and mesh data (if separate) to
|
|
|
+the project repository, then Godot will do a full import when focusing the
|
|
|
+editor window.
|
|
|
|
|
|
Exporting glTF 2.0 files from Blender (recommended)
|
|
|
-~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
|
|
|
+---------------------------------------------------
|
|
|
|
|
|
There are 3 ways to export glTF files from Blender:
|
|
|
|
|
|
@@ -76,10 +76,10 @@ files are fine.
|
|
|
Blender's Materials tab, then export the scene to glTF again.
|
|
|
|
|
|
Importing ``.blend`` files directly within Godot
|
|
|
-~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
|
|
|
+------------------------------------------------
|
|
|
|
|
|
.. note::
|
|
|
-
|
|
|
+
|
|
|
This functionality requires Blender 3.0 or later.
|
|
|
|
|
|
From Godot 4.0 onwards, the editor can directly import ``.blend`` files by
|
|
|
@@ -109,12 +109,12 @@ advanced Project Settings.
|
|
|
a free download, this may add friction when working on the project.
|
|
|
``.blend`` import is also not available on the Android and web editors, as
|
|
|
these platforms can't call external programs.
|
|
|
-
|
|
|
+
|
|
|
If this is problematic, consider using glTF scenes exported from Blender
|
|
|
instead.
|
|
|
|
|
|
Exporting DAE files from Blender
|
|
|
-~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
|
|
|
+--------------------------------
|
|
|
|
|
|
Blender has built-in COLLADA support, but it does not work properly for the
|
|
|
needs of game engines and shouldn't be used as-is. However, scenes exported with
|
|
|
@@ -125,7 +125,7 @@ For complex scenes or scenes that contain animations, Godot provides a
|
|
|
that will correctly export COLLADA scenes for use in Godot.
|
|
|
|
|
|
Importing OBJ files in Godot
|
|
|
-~~~~~~~~~~~~~~~~~~~~~~~~~~~~
|
|
|
+----------------------------
|
|
|
|
|
|
OBJ is one of the simplest 3D formats out there, so Godot should be able to
|
|
|
import most OBJ files successfully. However, OBJ is also a very limited format:
|
|
|
@@ -151,7 +151,7 @@ There are 2 ways to use OBJ meshes in Godot:
|
|
|
overbright).
|
|
|
|
|
|
Importing FBX files in Godot
|
|
|
-~~~~~~~~~~~~~~~~~~~~~~~~~~~~
|
|
|
+----------------------------
|
|
|
|
|
|
When opening a project containing FBX scenes, you will see a dialog asking you
|
|
|
to configure FBX import. Click the link in the dialog to download a fbx2gltf
|
|
|
@@ -168,7 +168,7 @@ advanced Project Settings.
|
|
|
`FBX import page of the Godot website <https://godotengine.org/fbx-import>`__.
|
|
|
|
|
|
Exporting textures separately
|
|
|
-~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
|
|
|
+-----------------------------
|
|
|
|
|
|
While textures can be exported with a model in certain file formats, such as glTF 2.0, you can also export them
|
|
|
separately. Godot uses PBR (physically based rendering) for its materials, so if a texturing program can export PBR
|
|
|
@@ -178,7 +178,7 @@ textures they can work in Godot. This includes the `Substance suite <https://www
|
|
|
.. note:: For more information on Godot's materials, see :ref:`doc_standard_material_3d`.
|
|
|
|
|
|
Exporting considerations
|
|
|
-~~~~~~~~~~~~~~~~~~~~~~~~
|
|
|
+------------------------
|
|
|
|
|
|
Since GPUs can only render triangles, meshes that contain quads or N-gons have
|
|
|
to be *triangulated* before they can be rendered. Godot can triangulate meshes
|
|
|
@@ -188,327 +188,559 @@ the scene will lead to more consistent results and should be done whenever
|
|
|
possible.
|
|
|
|
|
|
To avoid issues with incorrect triangulation after importing in Godot, it is
|
|
|
-recommended to make the 3D DCC triangulate objects on its own. In Blender, this
|
|
|
-can be done by adding a Triangulate modifier to your objects and making sure
|
|
|
-**Apply Modifiers** is checked in the export dialog. Alternatively, depending on
|
|
|
-the exporter, you may be able to find and enable a **Triangulate Faces** option
|
|
|
-in the export dialog.
|
|
|
+recommended to make the 3D modeling software triangulate objects on its own. In
|
|
|
+Blender, this can be done by adding a Triangulate modifier to your objects and
|
|
|
+making sure **Apply Modifiers** is checked in the export dialog. Alternatively,
|
|
|
+depending on the exporter, you may be able to find and enable a **Triangulate
|
|
|
+Faces** option in the export dialog.
|
|
|
|
|
|
To avoid issues with 3D selection in the editor, it is recommended to apply the
|
|
|
-object transform in the 3D DCC before exporting the scene.
|
|
|
-
|
|
|
-Import workflows
|
|
|
-----------------
|
|
|
-
|
|
|
-Godot scene importer allows different workflows regarding how data is imported. Depending on many options, it is possible to
|
|
|
-import a scene with:
|
|
|
-
|
|
|
-* External materials (default): Where each material is saved to a file resource. Modifications to them are kept.
|
|
|
-* External meshes: Where each mesh is saved to a different file. Many users prefer to deal with meshes directly.
|
|
|
-* External animations: Allowing saved animations to be modified and merged when sources change.
|
|
|
-* External scenes: Save each of the root nodes of the imported scenes as a separate scene.
|
|
|
-* Single scene: A single scene file with everything built in.
|
|
|
-
|
|
|
-.. image:: img/scene_import1.png
|
|
|
+object transform in the 3D modeling software before exporting the scene.
|
|
|
|
|
|
-As different developers have different needs, this import process is highly customizable.
|
|
|
-
|
|
|
-Import options
|
|
|
---------------
|
|
|
+.. note::
|
|
|
|
|
|
-The importer has several options, which will be discussed below:
|
|
|
+ It is important that the mesh is not deformed by bones when exporting. Make sure
|
|
|
+ that the skeleton is reset to its T-pose or default rest pose before exporting
|
|
|
+ with your favorite 3D editor.
|
|
|
|
|
|
-.. image:: img/scene_import2.png
|
|
|
+Import workflows
|
|
|
+----------------
|
|
|
|
|
|
-Nodes
|
|
|
-~~~~~
|
|
|
+Since Godot can only save its own scene format (``.tscn``/``.scn``), Godot
|
|
|
+cannot save over the original 3D scene file (which uses a different format).
|
|
|
+This is also a safer approach as it avoids making accidental changes to the
|
|
|
+source file.
|
|
|
+
|
|
|
+To allow customizing the scene and its materials, Godot's scene importer allows
|
|
|
+for different workflows regarding how data is imported.
|
|
|
+
|
|
|
+.. figure:: img/importing_3d_scenes_import_dock.webp
|
|
|
+ :align: center
|
|
|
+ :alt: Import dock after selecting a 3D scene in the FileSystem dock
|
|
|
+
|
|
|
+ Import dock after selecting a 3D scene in the FileSystem dock
|
|
|
+
|
|
|
+This import process is customizable using 3 separate interfaces, depending on your needs:
|
|
|
+
|
|
|
+- The **Import** dock, after selecting the 3D scene by clicking it once in the
|
|
|
+ FileSystem dock.
|
|
|
+- The **Advanced Import Settings** dialog, which can be accessed by double-clicking
|
|
|
+ the 3D scene in the FileSystem dock or by clicking the **Advanced…** button in
|
|
|
+ the Import dock. This allows you to customize per-object options in Godot.
|
|
|
+- :ref:`Import hints <doc_importing_3d_scenes_import_hints>`, which are special
|
|
|
+ suffixes added to object names in the 3D modeling software. This allows you to
|
|
|
+ customize per-object options in the 3D modeling software.
|
|
|
+
|
|
|
+For basic customization, using the Import dock suffices. However, for more
|
|
|
+complex operations such as defining material overrides on a per-material basis,
|
|
|
+you'll need to use the Advanced Import Settings dialog, import hints, or possibly both.
|
|
|
+
|
|
|
+.. _doc_importing_3d_scenes_using_the_import_dock:
|
|
|
+
|
|
|
+Using the Import dock
|
|
|
+^^^^^^^^^^^^^^^^^^^^^
|
|
|
+
|
|
|
+The following options can be adjusted in the Import dock after selecting a 3D
|
|
|
+scene in the FileSystem dock:
|
|
|
+
|
|
|
+- **Root Type:** The node type to use as a root node. Using node types that
|
|
|
+ inherit from Node3D is recommended. Otherwise, you'll lose the ability to
|
|
|
+ position the node directly in the 3D editor.
|
|
|
+- **Root Name:** The name of the root node in the imported scene. This is
|
|
|
+ generally not noticeable when instancing the scene in the editor (or
|
|
|
+ drag-and-dropping from the FileSystem dock), as the root node is renamed to
|
|
|
+ match the filename in this case.
|
|
|
+- **Apply Root Scale:** If enabled, **Root Scale** will be *applied* on the
|
|
|
+ meshes and animations directly, while keeping the root node's scale to the
|
|
|
+ default `(1, 1, 1)`. This means that if you add a child node later on within
|
|
|
+ the imported scene, it won't be scaled. If disabled, **Root Scale** will
|
|
|
+ multiply the scale of the root node instead.
|
|
|
+
|
|
|
+**Meshes**
|
|
|
+
|
|
|
+- **Ensure Tangents:** If checked, generate vertex tangents using
|
|
|
+ `Mikktspace <http://www.mikktspace.com/>`__ if the input meshes don't have
|
|
|
+ tangent data. When possible, it's recommended to let the 3D modeling software
|
|
|
+ generate tangents on export instead on relying on this option. Tangents are
|
|
|
+ required for correct display of normal and height maps, along with any
|
|
|
+ material/shader features that require tangents. If you don't need material
|
|
|
+ features that require tangents, disabling this can reduce output file size and
|
|
|
+ speed up importing if the source 3D file doesn't contain tangents.
|
|
|
+- **Generate LODs:** If checked, generates lower detail variants of the
|
|
|
+ mesh which will be displayed in the distance to improve rendering performance.
|
|
|
+ Not all meshes benefit from LOD, especially if they are never rendered from
|
|
|
+ far away. Disabling this can reduce output file size and speed up importing.
|
|
|
+ See :ref:`doc_mesh_lod` for more information.
|
|
|
+- **Create Shadow Meshes:** If checked, enables the generation of
|
|
|
+ shadow meshes on import. This optimizes shadow rendering without reducing
|
|
|
+ quality by welding vertices together when possible. This in turn reduces the
|
|
|
+ memory bandwidth required to render shadows. Shadow mesh generation currently
|
|
|
+ doesn't support using a lower detail level than the source mesh (but shadow
|
|
|
+ rendering will make use of LODs when relevant).
|
|
|
+- **Light Baking:** Configures the meshes'
|
|
|
+ :ref:`global illumination mode <class_GeometryInstance3D_property_gi_mode>`
|
|
|
+ in the 3D scene. If set to **Static Lightmaps**, sets the meshes' GI mode to
|
|
|
+ **Static** and generates UV2 on import for :ref:`lightmap baking <doc_using_lightmap_gi>`.
|
|
|
+- **Lightmap Texel Size:** Only visible if **Light Baking** is set to **Static
|
|
|
+ Lightmaps**. Controls the size of each texel on the baked lightmap. A smaller
|
|
|
+ value results in more precise lightmaps, at the cost of larger lightmap sizes
|
|
|
+ and longer bake times.
|
|
|
+
|
|
|
+**Skins**
|
|
|
+
|
|
|
+- **Use Named Skins:** If checked, use named :ref:`Skins <class_Skin>` for animation.
|
|
|
+ The :ref:`class_MeshInstance3D` node contains 3 properties of relevance here: a skeleton
|
|
|
+ NodePath pointing to the Skeleton3D node (usually ``..``), a mesh, and a skin:
|
|
|
+
|
|
|
+ - The :ref:`class_Skeleton3D` node contains a list of bones with names, their pose and rest,
|
|
|
+ a name and a parent bone.
|
|
|
+ - The mesh is all of the raw vertex data needed to display a mesh. In terms of the mesh,
|
|
|
+ it knows how vertices are weight-painted and uses some internal numbering
|
|
|
+ often imported from 3D modeling software.
|
|
|
+ - The skin contains the information necessary to bind this mesh onto this Skeleton3D.
|
|
|
+ For every one of the internal bone IDs chosen by the 3D modeling software, it contains two things.
|
|
|
+ Firstly, a Matrix known as the Bind Pose Matrix, Inverse Bind Matrix, or IBM for short.
|
|
|
+ Secondly, the Skin contains each bone's name (if **Use Named Skins** is enabled),
|
|
|
+ or the bone's index within the Skeleton3D list (if **Use Named Skins** is disabled).
|
|
|
+
|
|
|
+Together, this information is enough to tell Godot how to use the bone poses in
|
|
|
+the Skeleton3D node to render the mesh from each MeshInstance3D. Note that each
|
|
|
+MeshInstance3D may share binds, as is common in models exported from Blender, or
|
|
|
+each MeshInstance3D may use a separate Skin object, as is common in models
|
|
|
+exported from other tools such as Maya.
|
|
|
+
|
|
|
+
|
|
|
+**Animation**
|
|
|
+
|
|
|
+- **Import:** If checked, import animations from the 3D scene.
|
|
|
+- **FPS:** The number of frames per second to use for baking animation curves to
|
|
|
+ a series of points with linear interpolation. It's recommended to configure
|
|
|
+ this value to match the value you're using as a baseline in your 3D modeling
|
|
|
+ software. Higher values result in more precise animation with fast movement
|
|
|
+ changes, at the cost of higher file sizes and memory usage. Thanks to
|
|
|
+ interpolation, there is usually not much benefit in going above 30 FPS (as the
|
|
|
+ animation will still appear smooth at higher rendering framerates).
|
|
|
+- **Trimming:** Trim the beginning and end of animations if there are no
|
|
|
+ keyframe changes. This can reduce output file size and memory usage with
|
|
|
+ certain 3D scenes, depending on the contents of their animation tracks.
|
|
|
+- **Remove Immutable Tracks:** Remove animation tracks that only contain default
|
|
|
+ values. This can reduce output file size and memory usage with certain 3D
|
|
|
+ scenes, depending on the contents of their animation tracks.
|
|
|
+
|
|
|
+**Import Script**
|
|
|
+
|
|
|
+- **Path:** Path to an import script, which can run code *after*
|
|
|
+ the import process has completed for custom processing.
|
|
|
+ See :ref:`doc_importing_3d_scenes_import_script` for more information.
|
|
|
+
|
|
|
+**glTF**
|
|
|
+
|
|
|
+- **Embedded Texture Handling:** Controls how textures embedded within glTF
|
|
|
+ scenes should be handled. **Discard All Textures** will not import any
|
|
|
+ textures, which is useful if you wish to manually set up materials in Godot
|
|
|
+ instead. **Extract Textures** extracts textures to external images, resulting
|
|
|
+ in smaller file sizes and more control over import options. **Embed as Basis
|
|
|
+ Universal** and **Embed as Uncompressed** keeps the textures embedded in the
|
|
|
+ imported scene, with and without VRAM compression respectively.
|
|
|
+
|
|
|
+Using the Advanced Import Settings dialog
|
|
|
+^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
|
|
|
+
|
|
|
+The first tab you'll see is the **Scene** tab. The options available in the
|
|
|
+panel on the right are identical to the Import dock, but you have access to a 3D
|
|
|
+preview. The 3D preview can be rotated by holding down the left mouse button
|
|
|
+then dragging the mouse. Zoom can be adjusted using the mouse wheel.
|
|
|
+
|
|
|
+.. figure:: img/importing_3d_scenes_advanced_import_settings_scene.webp
|
|
|
+ :align: center
|
|
|
+ :alt: Advanced Import Settings dialog (Scene tab)
|
|
|
+
|
|
|
+ Advanced Import Settings dialog (Scene tab).
|
|
|
+ Credit: `Modern Arm Chair 01 - Poly Haven <https://polyhaven.com/a/modern_arm_chair_01>`__
|
|
|
+
|
|
|
+**Configuring node import options**
|
|
|
+
|
|
|
+You can select individual nodes that compose the scene while in the **Scene**
|
|
|
+tab using the tree view at the left:
|
|
|
+
|
|
|
+.. figure:: img/importing_3d_scenes_advanced_import_settings_node.webp
|
|
|
+ :align: center
|
|
|
+ :alt: Selecting a node in the Advanced Import Settings dialog (Scene tab)
|
|
|
+
|
|
|
+ Selecting a node in the Advanced Import Settings dialog (Materials tab)
|
|
|
+
|
|
|
+This exposes several per-node import options:
|
|
|
+
|
|
|
+- **Skip Import:** If checked, the node will not be present in the final
|
|
|
+ imported scene. Enabling this disables all other options.
|
|
|
+- **Generate > Physics:** If checked, generates a PhysicsBody3D *parent* node
|
|
|
+ with collision shapes that are *siblings* to the MeshInstance3D node.
|
|
|
+- **Generate > NavMesh:** If checked, generates a NavigationRegion3D *child*
|
|
|
+ node for :ref:`navigation <doc_navigation_overview_3d>`. **Mesh + NavMesh**
|
|
|
+ will keep the original mesh visible, while **NavMesh Only** will only import
|
|
|
+ the navigation mesh (without a visual representation). **NavMesh Only** is
|
|
|
+ meant to be used when you've manually authored a simplified mesh for navigation.
|
|
|
+- **Generate > NavMesh:** If checked, generates an OccluderInstance3D *sibling*
|
|
|
+ node for :ref:`occlusion culling <doc_occlusion_culling>` using the mesh's
|
|
|
+ geometry as a basis for the occluder's shape. **Mesh + Occluder** will keep
|
|
|
+ the original mesh visible, while **Occluder Only** will only import the
|
|
|
+ occluder (without a visual representation). **Occluder Only** is meant to be
|
|
|
+ used when you've manually authored a simplified mesh for occlusion culling.
|
|
|
+
|
|
|
+These options are only visible if some of the above options are enabled:
|
|
|
+
|
|
|
+- **Physics > Body Type:** Only visible if **Generate > Physics** is enabled.
|
|
|
+ Controls the PhysicsBody3D that should be created. **Static** creates a
|
|
|
+ StaticBody3D, **Dynamic** creates a RigidBody3D, **Area** creates an Area3D.
|
|
|
+- **Physics > Shape Type:** Only visible if **Generate > Physics** is enabled.
|
|
|
+ **Trimesh** allows for precise per-triangle collision, but it can only be used
|
|
|
+ with a **Static** body type. Other types are less precise and may require
|
|
|
+ manual configuration, but can be used with any body type. For static level
|
|
|
+ geometry, use **Trimesh**. For dynamic geometry, use primitive shapes if
|
|
|
+ possible for better performance, or use one of the convex decomposition modes
|
|
|
+ if the shape is large and complex.
|
|
|
+- **Decomposition > Advanced:** Only visible if **Physics > Shape Type** is
|
|
|
+ **Decompose Convex**. If checked, allows adjusting advanced decomposition
|
|
|
+ options. If disabled, only a preset **Precision** can be adjusted (which is
|
|
|
+ usually sufficient).
|
|
|
+- **Decomposition > Precision:** Only visible if **Physics > Shape Type** is
|
|
|
+ **Decompose Convex**. Controls the precision to use for convex decomposition.
|
|
|
+ Higher values result in more detailed collision, at the cost of slower
|
|
|
+ generation and increased CPU usage during physics simulation. To improve
|
|
|
+ performance, it's recommended to keep this value as low as possible for your
|
|
|
+ use cases.
|
|
|
+- **Occluder > Simplification Distance:** Only visible if **Generate >
|
|
|
+ Occluder** is set to **Mesh + Occluder** or **Occluder Only**. Higher values
|
|
|
+ result in a occluder mesh with fewer vertices (resulting in decreased CPU
|
|
|
+ utilization), at the cost of more occlusion culling issues (such as false
|
|
|
+ positives or false negatives). If you run into objects disappearing when they
|
|
|
+ shouldn't when the camera is near a certain mesh, try decreasing this value.
|
|
|
+
|
|
|
+**Configuring mesh and material import options**
|
|
|
+
|
|
|
+In the Advanced Import Settings dialog, there are 2 ways to select individual
|
|
|
+meshes or materials:
|
|
|
+
|
|
|
+- Switch to the **Meshes** or **Materials** tab in the top-left corner of the dialog.
|
|
|
+- Stay in the **Scene** tab, but unfold the options on the tree view on the
|
|
|
+ left. After choosing a mesh or material, this presents the same information as
|
|
|
+ the **Meshes** and **Materials** tabs, but in a tree view instead of a list.
|
|
|
+
|
|
|
+If you select a mesh, different options will appear in the panel on the right:
|
|
|
+
|
|
|
+.. figure:: img/importing_3d_scenes_advanced_import_settings_meshes.webp
|
|
|
+ :align: center
|
|
|
+ :alt: Advanced Import Settings dialog (Meshes tab)
|
|
|
+
|
|
|
+ Advanced Import Settings dialog (Meshes tab)
|
|
|
+
|
|
|
+The options are as follows:
|
|
|
+
|
|
|
+- **Save to File:** Saves the :ref:`class_Mesh` *resource* to an external file
|
|
|
+ (this isn't a scene file). You generally don't need to use this for placing
|
|
|
+ the mesh in a 3D scene – instead, you should instance the 3D scene directly.
|
|
|
+ However, having direct access to the Mesh resource is useful for specific
|
|
|
+ nodes, such as :ref:`class_MeshInstance3D`, :ref:`class_MultiMeshInstance3D`,
|
|
|
+ :ref:`class_GPUParticles3D` or :ref:`class_CPUParticles3D`.
|
|
|
+ - You will also need to specify an output file path using the option that
|
|
|
+ appears after enabling **Save to File**. It's recommended to use the ``.res``
|
|
|
+ output file extension for smaller file sizes and faster loading speeds, as
|
|
|
+ ``.tres`` is inefficient for writing large amounts of data.
|
|
|
+- **Generate > Shadow Meshes:** Per-mesh override for the **Meshes > Create
|
|
|
+ Shadow Meshes** scene-wide import option described in
|
|
|
+ :ref:`doc_importing_3d_scenes_using_the_import_dock`. **Default** will use the
|
|
|
+ scene-wide import option, while **Enable** or **Disable** can forcibly enable
|
|
|
+ or disable this behavior on a specific mesh.
|
|
|
+- **Generate > Lightmap UV:** Per-mesh override for the **Meshes > Light
|
|
|
+ Baking** scene-wide import option described in
|
|
|
+ :ref:`doc_importing_3d_scenes_using_the_import_dock`. **Default** will use the
|
|
|
+ scene-wide import option, while **Enable** or **Disable** can forcibly enable
|
|
|
+ or disable this behavior on a specific mesh.
|
|
|
+ - Setting this to **Enable** on a scene with the **Static** light baking mode
|
|
|
+ is equivalent to configuring this mesh to use **Static Lightmaps**. Setting this
|
|
|
+ to **Disable** on a scene with the **Static Lightmaps** light baking mode is
|
|
|
+ equivalent to configuring this mesh to use **Static** instead.
|
|
|
+- **Generate > LODs:** Per-mesh override for the **Meshes > Generate LODs**
|
|
|
+ scene-wide import option described in
|
|
|
+ :ref:`doc_importing_3d_scenes_using_the_import_dock`. **Default** will use the
|
|
|
+ scene-wide import option, while **Enable** or **Disable** can forcibly enable
|
|
|
+ or disable this behavior on a specific mesh.
|
|
|
+- **LODs > Normal Split Angle:** The minimum angle difference between two
|
|
|
+ vertices required to preserve a geometry edge in mesh LOD generation. If
|
|
|
+ running into visual issues with LOD generation, decreasing this value may help
|
|
|
+ (at the cost of less efficient LOD generation).
|
|
|
+- **LODs > Normal Merge Angle:** The minimum angle difference between two
|
|
|
+ vertices required to preserve a geometry edge in mesh LOD generation. If
|
|
|
+ running into visual issues with LOD generation, decreasing this value may help
|
|
|
+ (at the cost of less efficient LOD generation).
|
|
|
+
|
|
|
+If you select a material, only one option will appear in the panel on the right:
|
|
|
+
|
|
|

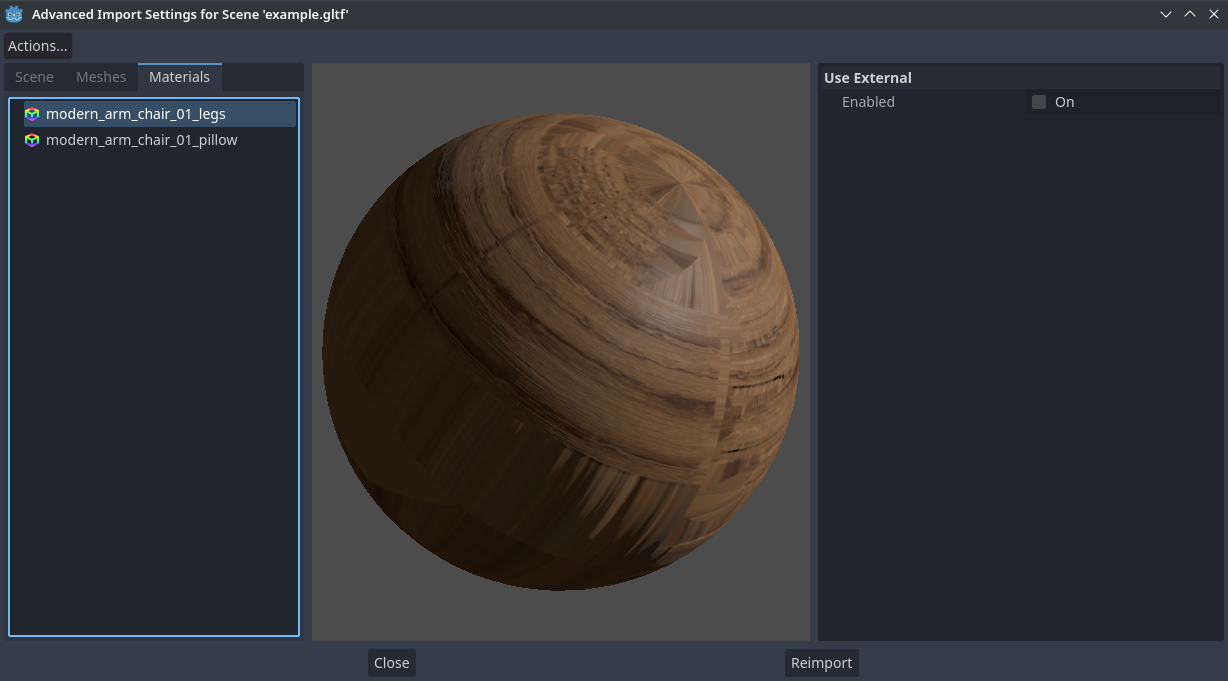

+.. figure:: img/importing_3d_scenes_advanced_import_settings_materials.webp
|
|
|
+ :align: center
|
|
|
+ :alt: Advanced Import Settings dialog (Materials tab)
|
|
|
+
|
|
|
+ Advanced Import Settings dialog (Materials tab)
|
|
|
+
|
|
|
+When **Use External** is checked and an output path is specified, this lets you
|
|
|
+use an external material instead of the material that is included in the
|
|
|
+original 3D scene file; see the section below.
|
|
|
+
|
|
|
+Extracting materials to separate files
|
|
|
+^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
|
|
|
+
|
|
|
+While Godot can import materials authored in 3D modeling software, the default
|
|
|
+configuration may not be suitable for your needs. For example:
|
|
|
+
|
|
|
+- You want to configure material features not supported by your 3D application.
|
|
|
+- You want to use a different texture filtering mode, as this option is
|
|
|
+ configured in the material since Godot 4.0 (and not in the image).
|
|
|
+- You want to replace one of the materials with an entirely different material,
|
|
|
+ such as a custom shader.
|
|
|
+
|
|
|
+To be able to modify the 3D scene's materials in the Godot editor, you need to
|
|
|
+use *external* material resources.
|
|
|
+
|
|
|
+In the top-left corner of the Advanced Import Settings dialog, choose
|
|
|
+**Actions… > Extract Materials**:
|
|
|
+
|
|
|
+.. figure:: img/importing_3d_scenes_advanced_import_settings_extract_materials.webp
|
|
|
+ :align: center
|
|
|
+ :alt: Extracting all built-in materials to external resources in the Advanced Import Settings dialog
|
|
|
+
|
|
|
+ Extracting all built-in materials to external resources in the Advanced Import Settings dialog
|
|
|
+
|
|
|
+After choosing this option, select a folder to extract material ``.tres`` files
|
|
|
+to, then confirm the extraction:
|
|
|
+
|
|
|
+.. figure:: img/importing_3d_scenes_advanced_import_settings_extract_materials_confirm.webp
|
|
|
+ :align: center
|
|
|
+ :alt: Confirming material extraction in the Advanced Import Settings subdialog
|
|
|
+
|
|
|
+ Confirming material extraction in the Advanced Import Settings subdialog
|
|
|
|
|
|
-Root Type
|
|
|
-^^^^^^^^^
|
|
|
+.. note::
|
|
|
|
|
|
-By default, the type of the root node in imported scenes is "Node3D", but this can be modified.
|
|
|
+ After extracting materials, the 3D scene will automatically be configured to
|
|
|
+ use external material references. As a result, you don't need to manually
|
|
|
+ enable **Use External** on every material to make the external ``.tres``
|
|
|
+ material effective.
|
|
|
|
|
|
-Root Name
|
|
|
-^^^^^^^^^
|
|
|
+When **Use External** is enabled, remember that the Advanced Import Settings
|
|
|
+dialog will keep displaying the mesh's original materials (the ones designed in
|
|
|
+the 3D modeling software). This means your customizations to the materials won't
|
|
|
+be visible within this dialog. To preview your modified materials, you need to
|
|
|
+place the imported 3D scene in another scene using the editor.
|
|
|
|
|
|
-Allows setting a specific name to the generated root node.
|
|
|
+Godot will not overwrite changes made to extracted materials when the source 3D
|
|
|
+scene is reimported. However, if the material name is changed in the source 3D
|
|
|
+file, the link between the original material and the extracted material will be
|
|
|
+lost. As a result, you'll need to use the Advanced Import Settings dialog to
|
|
|
+associate the renamed material to the existing extracted material.
|
|
|
|
|
|
-Root Scale
|
|
|
-^^^^^^^^^^
|
|
|
+The above can be done in the dialog's **Materials** tab by selecting the
|
|
|
+material, enabling **Save to File**, then specifying the save path using the
|
|
|
+**Path** option that appears after enabling **Save to File**.
|
|
|
|
|
|
-The scale of the root node.
|
|
|
+.. _doc_importing_3d_scenes_import_script:
|
|
|
|
|
|
-Custom Script
|
|
|
-^^^^^^^^^^^^^
|
|
|
+Using import scripts for automation
|
|
|
+^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
|
|
|
|
|
|
A special script to process the whole scene after import can be provided.
|
|
|
-This is great for post processing, changing materials, doing funny stuff
|
|
|
-with the geometry etc.
|
|
|
+This is great for post-processing, changing materials, doing funny stuff with
|
|
|
+the geometry, and more.
|
|
|
|
|
|
-Create a script like this:
|
|
|
+Create a script that is not attached to any node by right-clicking in the
|
|
|
+FileSystem dock and choosing **New > Script…**. In the script editor, write the
|
|
|
+following:
|
|
|
|
|
|
::
|
|
|
|
|
|
- tool # Needed so it runs in the editor.
|
|
|
+ @tool # Needed so it runs in editor.
|
|
|
extends EditorScenePostImport
|
|
|
|
|
|
+ # This sample changes all node names.
|
|
|
+ # Called right after the scene is imported and gets the root node.
|
|
|
+ func _post_import(scene):
|
|
|
+ # Change all node names to "modified_[oldnodename]"
|
|
|
+ iterate(scene)
|
|
|
+ return scene # Remember to return the imported scene
|
|
|
|
|
|
- func post_import(scene):
|
|
|
- # Do your stuff here.
|
|
|
- return scene # remember to return the imported scene
|
|
|
-
|
|
|
-The ``post_import`` function takes the imported scene as argument (the
|
|
|
-parameter is actually the root node of the scene). The scene that
|
|
|
-will finally be used must be returned. It can be a different one.
|
|
|
-
|
|
|
-Storage
|
|
|
-^^^^^^^
|
|
|
-
|
|
|
-By default, Godot imports a single scene. This option allows specifying
|
|
|
-that nodes below the root will each be a separate scene and instanced
|
|
|
-into the imported one.
|
|
|
-
|
|
|
-Of course, instancing such imported scenes in other places manually works, too.
|
|
|
-
|
|
|
-
|
|
|
-Materials
|
|
|
-~~~~~~~~~
|
|
|
-
|
|
|
-Location
|
|
|
-^^^^^^^^
|
|
|
-
|
|
|
-Godot supports materials in meshes or nodes. By default, materials will be put
|
|
|
-on each node.
|
|
|
-
|
|
|
-Storage
|
|
|
-^^^^^^^
|
|
|
-
|
|
|
-Materials can be stored within the scene or in external files. By default,
|
|
|
-they are stored in external files so editing them is possible. This is because
|
|
|
-most 3D DCCs don't have the same material options as those present in Godot.
|
|
|
-
|
|
|
-When materials are built-in, they will be lost each time the source scene
|
|
|
-is modified and re-imported.
|
|
|
-
|
|
|
-.. note::
|
|
|
+ # Recursive function that is called on every node
|
|
|
+ # (for demonstration purposes; EditorScenePostImport only requires a `_post_import(scene)` function).
|
|
|
+ func iterate(node):
|
|
|
+ if node != null:
|
|
|
+ print_rich("Post-import: [b]%s[/b] -> [b]%s[/b]" % [node.name, "modified_" + node.name])
|
|
|
+ node.name = "modified_" + node.name
|
|
|
+ for child in node.get_children():
|
|
|
+ iterate(child)
|
|
|
|
|
|
- Godot will not reimport materials that are stored in external files unless
|
|
|
- you remove the associated ``.material`` file before reimporting.
|
|
|
|
|
|
- To force reimporting materials every time the 3D scene is reimported, change
|
|
|
- the material storage mode in the 3D scene by selecting it in the FileSystem
|
|
|
- dock, going to the Import dock then setting **Material > Storage** to
|
|
|
- **Built-In** instead of **Files**.
|
|
|
+The ``_post_import(scene: Node)`` function takes the imported scene as argument
|
|
|
+(the parameter is actually the root node of the scene). The scene that will
|
|
|
+finally be used **must** be returned (even if the scene can be entirely different).
|
|
|
|
|
|
-Keep On Reimport
|
|
|
-^^^^^^^^^^^^^^^^
|
|
|
+Using animation libraries
|
|
|
+^^^^^^^^^^^^^^^^^^^^^^^^^
|
|
|
|
|
|
-Once materials are edited to use Godot features, the importer will keep the
|
|
|
-edited ones and ignore the ones coming from the source scene. This option
|
|
|
-is only present if materials are saved as files.
|
|
|
+As of Godot 4.0, you can choose to import **only** animations from a glTF file and
|
|
|
+nothing else. This is used in some asset pipelines to distribute animations
|
|
|
+separately from models. For example, this allows you to use one set of
|
|
|
+animations for several characters, without having to duplicate animation data in
|
|
|
+every character.
|
|
|
|
|
|
-Meshes
|
|
|
-~~~~~~
|
|
|
+To do so, select the glTF file in the FileSystem dock, then change the import
|
|
|
+mode to Animation Library in the Import dock:
|
|
|
|
|
|
-Compress
|
|
|
-^^^^^^^^
|
|
|
+.. figure:: img/importing_3d_scenes_changing_import_type.webp
|
|
|
+ :align: center
|
|
|
+ :alt: Changing the import type to Animation Library in the Import dock
|
|
|
|
|
|
-Makes meshes use less precise numbers for multiple aspects of the mesh in order
|
|
|
-to save space.
|
|
|
+ Changing the import type to Animation Library in the Import dock
|
|
|
|
|
|
-These are:
|
|
|
- * Transform Matrix (Location, rotation, and scale) : 32-bit float to 16-bit signed integer.
|
|
|
- * Vertices : 32-bit float to 16-bit signed integer.
|
|
|
- * Normals : 32-bit float to 32-bit unsigned integer.
|
|
|
- * Tangents : 32-bit float to 32-bit unsigned integer.
|
|
|
- * Vertex Colors : 32-bit float to 32-bit unsigned integer.
|
|
|
- * UV : 32-bit float to 32-bit unsigned integer.
|
|
|
- * UV2 : 32-bit float to 32-bit unsigned integer.
|
|
|
- * Vertex weights : 32-bit float to 16-bit unsigned integer.
|
|
|
- * Armature bones : 32-bit float to 16-bit unsigned integer.
|
|
|
- * Array index : 32-bit or 16-bit unsigned integer based on how many elements there are.
|
|
|
+Click **Reimport** and restart the editor when prompted. After restarting, the
|
|
|
+glTF file will be imported as an :ref:`class_AnimationLibrary` instead of a
|
|
|
+:ref:`class_PackedScene`. This animation library can then be referenced in an
|
|
|
+:ref:`class_AnimationPlayer` node.
|
|
|
|
|
|
-Additional info:
|
|
|
- * UV2 = The second UV channel for detail textures and baked lightmap textures.
|
|
|
- * Array index = An array of numbers that number each element of the arrays above; i.e. they number the vertices and normals.
|
|
|
+The import options that are visible after changing the import mode to Animation
|
|
|
+Library act the same as when using the Scene import mode. See
|
|
|
+:ref:`doc_importing_3d_scenes_using_the_import_dock` for more information.
|
|
|
|
|
|
-In some cases, this might lead to loss of precision, so disabling this option
|
|
|
-may be needed. For instance, if a mesh is very big or there are multiple meshes
|
|
|
-being imported that cover a large area, compressing the import of this mesh(es)
|
|
|
-may lead to gaps in geometry or vertices not being exactly where they should be.
|
|
|
-
|
|
|
-Ensure Tangents
|
|
|
-^^^^^^^^^^^^^^^
|
|
|
-
|
|
|
-If textures with normal mapping are to be used, meshes need to have tangent arrays.
|
|
|
-This option ensures that these are generated if not present in the source scene.
|
|
|
-Godot uses `Mikktspace <http://www.mikktspace.com/>`__ for this,
|
|
|
-but it's always better to have them generated in the exporter.
|
|
|
-
|
|
|
-Storage
|
|
|
-^^^^^^^
|
|
|
-
|
|
|
-Meshes can be stored in separate files (resources) instead of built-in. This does
|
|
|
-not have much practical use unless one wants to build objects with them directly.
|
|
|
-
|
|
|
-This option is provided to help those who prefer working directly with meshes
|
|
|
-instead of scenes.
|
|
|
-
|
|
|
-Light Baking
|
|
|
-^^^^^^^^^^^^
|
|
|
-
|
|
|
-Whether or not the mesh is used in baked lightmaps.
|
|
|
-
|
|
|
-- **Disabled:** The mesh is not used in baked lightmaps.
|
|
|
-- **Enable:** The mesh is used in baked lightmaps.
|
|
|
-- **Gen Lightmaps:** The mesh is used in baked lightmaps, and unwraps a second UV layer for lightmaps.
|
|
|
-
|
|
|
-.. note:: For more information on light baking see :ref:`doc_using_lightmap_gi`.
|
|
|
-
|
|
|
-External Files
|
|
|
-~~~~~~~~~~~~~~
|
|
|
-
|
|
|
-Generated meshes and materials can be optionally stored in a subdirectory with the
|
|
|
-name of the scene.
|
|
|
-
|
|
|
-Animation options
|
|
|
------------------
|
|
|
-
|
|
|
-Godot provides many options regarding how animation data is dealt with. Some exporters
|
|
|
-(such as Blender) can generate many animations in a single file. Others, such as
|
|
|
-3DS Max or Maya, need many animations put into the same timeline or, at worst, put
|
|
|
-each animation in a separate file.
|
|
|
-
|
|
|
-.. image:: img/scene_import3.png
|
|
|
-
|
|
|
-Import of animations is enabled by default.
|
|
|
-
|
|
|
-.. attention::
|
|
|
-
|
|
|
- To modify animations from an imported 3D scene, you need to change the animation
|
|
|
- storage option from **Built-In** to **Files** in the Import dock. Otherwise,
|
|
|
- changes made to animations from Godot will be lost when the project is run.
|
|
|
-
|
|
|
-FPS
|
|
|
-~~~
|
|
|
-
|
|
|
-Most 3D export formats store animation timeline in seconds instead of frames. To ensure
|
|
|
-animations are imported as faithfully as possible, please specify the frames per second
|
|
|
-used to edit them. Failing to do this may result in shaky animations.
|
|
|
-
|
|
|
-Filter Script
|
|
|
-~~~~~~~~~~~~~
|
|
|
+Filter script
|
|
|
+^^^^^^^^^^^^^
|
|
|
|
|
|
-It is possible to specify a filter script in a special syntax to decide which tracks from which
|
|
|
-animations should be kept.
|
|
|
+It is possible to specify a filter script in a special syntax to decide which
|
|
|
+tracks from which animations should be kept.
|
|
|
|
|
|
-The filter script is executed against each imported animation. The syntax consists of two types of
|
|
|
-statements, the first for choosing which animations to filter, and the second for filtering
|
|
|
-individual tracks within the matched animation. All name patterns are performed using a case
|
|
|
-insensitive expression match, using ``?`` and ``*`` wildcards (using ``String.matchn()`` under the
|
|
|
-hood).
|
|
|
+The filter script is executed against each imported animation. The syntax
|
|
|
+consists of two types of statements, the first for choosing which animations to
|
|
|
+filter, and the second for filtering individual tracks within the matched
|
|
|
+animation. All name patterns are performed using a case-insensitive expression
|
|
|
+match, with support for ``?`` and ``*`` wildcards (using
|
|
|
+:ref:`String.matchn() <class_String_method_matchn>` under the hood).
|
|
|
|
|
|
-The script must start with an animation filter statement (as denoted by the line beginning with an
|
|
|
-``@``). For example, if we would like to apply filters to all imported animations which have a name
|
|
|
-ending in ``"_Loop"``::
|
|
|
+The script must start with an animation filter statement (as denoted by the line
|
|
|
+beginning with an ``@``). For example, if we would like to apply filters to all
|
|
|
+imported animations which have a name ending in ``"_Loop"``::
|
|
|
|
|
|
@+*_Loop
|
|
|
|
|
|
-Similarly, additional patterns can be added to the same line, separated by commas. Here is a
|
|
|
-modified example to additionally *include* all animations with names that begin with ``"Arm_Left"``,
|
|
|
-but also *exclude* all animations which have names ending in ``"Attack"``::
|
|
|
+Similarly, additional patterns can be added to the same line, separated by
|
|
|
+commas. Here is a modified example to additionally *include* all animations with
|
|
|
+names that begin with ``"Arm_Left"``, but also *exclude* all animations which
|
|
|
+have names ending in ``"Attack"``::
|
|
|
|
|
|
@+*_Loop, +Arm_Left*, -*Attack
|
|
|
|
|
|
-Following the animation selection filter statement, we add track filtering patterns to indicate
|
|
|
-which animation tracks should be kept or discarded. If no track filter patterns are specified, then
|
|
|
-all tracks within the matched animations will be discarded!
|
|
|
+Following the animation selection filter statement, we add track filtering
|
|
|
+patterns to indicate which animation tracks should be kept or discarded. If no
|
|
|
+track filter patterns are specified, then all tracks within the matched
|
|
|
+animations will be discarded!
|
|
|
|
|
|
-It's important to note that track filter statements are applied in order for each track within the
|
|
|
-animation, this means that one line may include a track, a later rule can still discard it.
|
|
|
-Similarly, a track excluded by an early rule may then be re-included once again by a filter rule
|
|
|
-further down in the filter script.
|
|
|
+It's important to note that track filter statements are applied in order for
|
|
|
+each track within the animation, this means that one line may include a track, a
|
|
|
+later rule can still discard it. Similarly, a track excluded by an early rule
|
|
|
+may then be re-included once again by a filter rule further down in the filter
|
|
|
+script.
|
|
|
|
|
|
-For example: include all tracks in animations with names ending in ``"_Loop"``, but discard any
|
|
|
-tracks affecting a ``"Skeleton"`` which end in ``"Control"``, unless they have ``"Arm"`` in their
|
|
|
-name::
|
|
|
+For example: include all tracks in animations with names ending in ``"_Loop"``,
|
|
|
+but discard any tracks affecting a ``"Skeleton"`` which end in ``"Control"``,
|
|
|
+unless they have ``"Arm"`` in their name::
|
|
|
|
|
|
@+*_Loop
|
|
|
+*
|
|
|
-Skeleton:*Control
|
|
|
+*Arm*
|
|
|
|
|
|
-In the above example, tracks like ``"Skeleton:Leg_Control"`` would be discarded, while tracks such
|
|
|
-as ``"Skeleton:Head"`` or ``"Skeleton:Arm_Left_Control"`` would be retained.
|
|
|
+In the above example, tracks like ``"Skeleton:Leg_Control"`` would be discarded,
|
|
|
+while tracks such as ``"Skeleton:Head"`` or ``"Skeleton:Arm_Left_Control"``
|
|
|
+would be retained.
|
|
|
|
|
|
Any track filter lines that do not begin with a ``+`` or ``-`` are ignored.
|
|
|
|
|
|
Storage
|
|
|
-~~~~~~~
|
|
|
+^^^^^^^
|
|
|
|
|
|
-By default, animations are saved as built-in. It is possible to save them to a file instead. This
|
|
|
-allows adding custom tracks to the animations and keeping them after a reimport.
|
|
|
+By default, animations are saved as built-in. It is possible to save them to a
|
|
|
+file instead. This allows adding custom tracks to the animations and keeping
|
|
|
+them after a reimport.
|
|
|
|
|
|
Optimizer
|
|
|
-~~~~~~~~~
|
|
|
+^^^^^^^^^
|
|
|
|
|
|
-When animations are imported, an optimizer is run, which reduces the size of the animation considerably.
|
|
|
-In general, this should always be turned on unless you suspect that an animation might be broken due to it being enabled.
|
|
|
+When animations are imported, an optimizer is run, which reduces the size of the
|
|
|
+animation considerably. In general, this should always be turned on unless you
|
|
|
+suspect that an animation might be broken due to it being enabled.
|
|
|
|
|
|
Clips
|
|
|
-~~~~~
|
|
|
-
|
|
|
-It is possible to specify multiple animations from a single timeline as clips. For this to work, the model
|
|
|
-must have only one animation that is named ``default``. To create clips, change the clip amount to something
|
|
|
-greater than zero. You can then name a clip, specify which frames it starts and stops on, and choose whether
|
|
|
-the animation loops or not.
|
|
|
+^^^^^
|
|
|
|
|
|
-.. If this PR (https://github.com/godotengine/godot/pull/36709) is merged for Godot 4.0 this section must
|
|
|
- be updated to reflect that for the 4.0 documentation.
|
|
|
+It is possible to specify multiple animations from a single timeline as clips.
|
|
|
+For this to work, the model must have only one animation that is named
|
|
|
+``default``. To create clips, change the clip amount to something greater than
|
|
|
+zero. You can then name a clip, specify which frames it starts and stops on, and
|
|
|
+choose whether the animation loops or not.
|
|
|
|
|
|
Scene inheritance
|
|
|
-----------------
|
|
|
|
|
|
-In many cases, it may be desired to make modifications to the imported scene. By default, this is not possible because
|
|
|
-if the source asset changes (source ``.dae``, ``.gltf``, ``.obj`` file re-exported from 3D modelling app), Godot will re-import the whole scene.
|
|
|
+In many cases, it may be desired to make manual modifications to the imported
|
|
|
+scene. By default, this is not possible because if the source 3D asset changes,
|
|
|
+Godot will re-import the *whole* scene.
|
|
|
+
|
|
|
+However, it is possible to make local modifications by using *scene
|
|
|

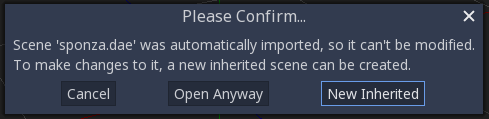

+inheritance*. If you try to open the imported scene using **Scene > Open
|
|
|
+Scene…** or **Scene > Quick Open Scene…**, the following dialog will appear:
|
|
|
+
|
|
|
+.. figure:: img/importing_3d_scenes_create_inherited_scene_dialog.webp
|
|
|
+ :align: center
|
|
|
+ :alt: Dialog when opening an imported 3D scene in the editor
|
|
|
|
|
|
-It is possible, however, to make local modifications by using *Scene Inheritance*. Try to open the imported scene and the
|
|
|
-following dialog will appear:
|
|
|
+ Dialog when opening an imported 3D scene in the editor
|
|
|
|
|
|
-.. image:: img/scene_import4.png
|
|
|
+In inherited scenes, the only limitations for modification are:
|
|
|
|
|
|
-In inherited scenes, the only limitations for modifications are:
|
|
|
+- Nodes from the base scene can't be removed, but additional nodes can be added
|
|
|
+ anywhere.
|
|
|
+- Subresources can't be edited. Instead, you need to save them externally as
|
|
|
+ described above.
|
|
|
|
|
|
-* Nodes can't be removed (but can be added anywhere).
|
|
|
-* Sub-Resources can't be edited (save them externally as described above for this)
|
|
|
+Other than that, everything is allowed.
|
|
|
|
|
|
-Other than that, everything is allowed!
|
|
|
+.. _doc_importing_3d_scenes_import_hints:
|
|
|
|
|
|
Import hints
|
|
|
------------
|
|
|
|
|
|
-Many times, when editing a scene, there are common tasks that need to be done after exporting:
|
|
|
+Many times, when editing a scene, there are common tasks that need to be done
|
|
|
+after exporting:
|
|
|
|
|
|
- Adding collision detection to objects.
|
|
|
- Setting objects as navigation meshes.
|
|
|
-- Deleting nodes that are not used in the game engine (like specific lights used for modelling).
|
|
|
+- Deleting nodes that are not used in the game engine (like specific lights used
|
|
|
+ for modelling).
|
|
|
|
|
|
To simplify this workflow, Godot offers several suffixes that can be added to
|
|
|
the names of the objects in your 3D modelling software. When imported, Godot
|
|
|
will detect suffixes in object names and will perform actions automatically.
|
|
|
|
|
|
-.. note::
|
|
|
+.. warning::
|
|
|
|
|
|
- All the suffixes described below are *case-sensitive*.
|
|
|
+ All the suffixes described below are **case-sensitive**.
|
|
|
|
|
|
Remove nodes (-noimp)
|
|
|
-~~~~~~~~~~~~~~~~~~~~~
|
|
|
+^^^^^^^^^^^^^^^^^^^^^
|
|
|
|
|
|
Objects that have the ``-noimp`` suffix will be removed at import-time no matter
|
|
|
what their type is. They will not appear in the imported scene.
|
|
|
|
|
|
+This is equivalent to enabling **Skip Import** for a node in the Advanced Import
|
|
|
+Settings dialog.
|
|
|
+
|
|
|
Create collisions (-col, -convcol, -colonly, -convcolonly)
|
|
|
-~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
|
|
|
+^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
|
|
|
|
|
|
The option ``-col`` will work only for Mesh objects. If it is detected, a child
|
|
|
static collision node will be added, using the same geometry as the mesh. This
|
|
|
@@ -533,19 +765,24 @@ To solve this, the ``-colonly`` modifier exists. It will remove the mesh upon
|
|
|
importing and will create a :ref:`class_StaticBody3D` collision instead.
|
|
|
This helps the visual mesh and actual collision to be separated.
|
|
|
|
|
|
-The option ``-convcolonly`` works in a similar way, but will create a :ref:`class_ConvexPolygonShape3D` instead.
|
|
|
+The option ``-convcolonly`` works in a similar way, but will create a
|
|
|
+:ref:`class_ConvexPolygonShape3D` instead using convex decomposition.
|
|
|
+
|
|
|
+With Collada files, the option ``-colonly`` can also be used with Blender's
|
|
|

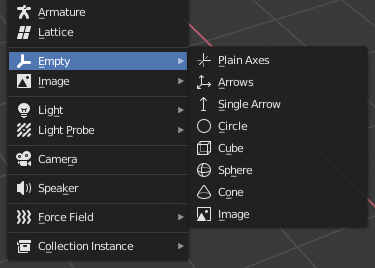

+empty objects. On import, it will create a :ref:`class_StaticBody3D` with a
|
|
|
+collision node as a child. The collision node will have one of a number of
|
|
|
+predefined shapes, depending on Blender's empty draw type:
|
|
|
|
|
|
-With Collada files the option ``-colonly`` can also be used with Blender's empty objects.
|
|
|
-On import, it will create a :ref:`class_StaticBody3D` with
|
|
|
-a collision node as a child. The collision node will have one of a number of predefined shapes,
|
|
|
-depending on Blender's empty draw type:
|
|
|
+.. figure:: img/importing_3d_scenes_blender_empty_draw_types.webp
|
|
|
+ :align: center
|
|
|
+ :alt: Choosing a draw type for an Empty on creation in Blender
|
|
|
|
|
|
-.. image:: img/3dimp_BlenderEmptyDrawTypes.png
|
|
|
+ Choosing a draw type for an Empty on creation in Blender
|
|
|
|
|
|
-- Single arrow will create a :ref:`class_SeparationRayShape3D`.
|
|
|
-- Cube will create a :ref:`class_BoxShape3D`.
|
|
|
-- Image will create a :ref:`class_WorldBoundaryShape3D`.
|
|
|
-- Sphere (and the others not listed) will create a :ref:`class_SphereShape3D`.
|
|
|
+- Single arrow will create a :ref:`class_SeparationRayShape3D`.
|
|
|
+- Cube will create a :ref:`class_BoxShape3D`.
|
|
|
+- Image will create a :ref:`class_WorldBoundaryShape3D`.
|
|
|
+- Sphere (and the others not listed) will create a :ref:`class_SphereShape3D`.
|
|
|
|
|
|
When possible, **try to use a few primitive collision shapes** instead of triangle
|
|
|
mesh or convex shapes. Primitive shapes often have the best performance and
|
|
|
@@ -566,33 +803,33 @@ reliability.
|
|
|
shapes.
|
|
|
|
|
|
Create navigation (-navmesh)
|
|
|
-~~~~~~~~~~~~~~~~~~~~~~~~~~~~
|
|
|
+^^^^^^^^^^^^^^^^^^^^^^^^^^^^
|
|
|
|
|
|
A mesh node with the ``-navmesh`` suffix will be converted to a navigation mesh.
|
|
|
The original Mesh object will be removed at import-time.
|
|
|
|
|
|
Create a VehicleBody (-vehicle)
|
|
|
-~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
|
|
|
+^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
|
|
|
|
|
|
A mesh node with the ``-vehicle`` suffix will be imported as a child to a
|
|
|
:ref:`class_VehicleBody3D` node.
|
|
|
|
|
|
Create a VehicleWheel (-wheel)
|
|
|
-~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
|
|
|
+^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
|
|
|
|
|
|
A mesh node with the ``-wheel`` suffix will be imported as a child to a
|
|
|
:ref:`class_VehicleWheel3D` node.
|
|
|
|
|
|
Rigid Body (-rigid)
|
|
|
-~~~~~~~~~~~~~~~~~~~
|
|
|
+^^^^^^^^^^^^^^^^^^^
|
|
|
|
|
|
A mesh node with the ``-rigid`` suffix will be imported as a :ref:`class_RigidBody3D`.
|
|
|
|
|
|
Animation loop (-loop, -cycle)
|
|
|
-~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
|
|
|
+^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
|
|
|
|
|
|
-Animation clips in the COLLADA document that start or end with the token ``loop`` or ``cycle``
|
|
|
-will be imported as a Godot Animation with the loop flag set.
|
|
|
+Animation clips in the source 3D file that start or end with the token ``loop`` or ``cycle``
|
|
|
+will be imported as a Godot :ref:`class_Animation` with the loop flag set.
|
|
|
**Unlike the other suffixes described above, this does not require a hyphen.**
|
|
|
|
|
|
In Blender, this requires using the NLA Editor and naming the Action with the ``loop`` or
|
Hugo Locurcio
