@@ -24,11 +24,7 @@ Node3D node
|
|
|
Following this reasoning, the 3D engine uses the :ref:`Node3D <class_Node3D>`
|
|
|
node for everything 3D.
|
|
|
|
|
|
-.. note:: Be aware that "Spatial" Nodes are now called "Node3D"
|
|
|
- starting with Godot 4. Any Godot 3.x references to "Spatial"
|
|
|
- Nodes refer to "Node3D" in Godot 4.
|
|
|
-
|
|
|
-.. image:: img/tuto_3d1.png
|
|
|
+.. image:: img/tuto_3d1.webp
|
|
|
|
|
|

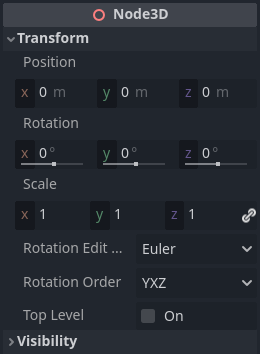

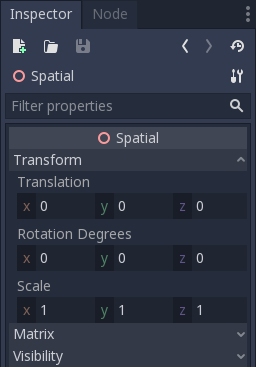

Node3Ds have a local transform, which is relative to the parent
|
|
|
node (as long as the parent node is also of **or inherits from** the type
|
|
|
@@ -37,7 +33,7 @@ Node3D). This transform can be accessed as a 4×3
|
|
|
members representing location, Euler rotation (X, Y and Z angles) and
|
|
|
scale.
|
|
|
|
|
|
-.. image:: img/tuto_3d2.png
|
|
|
+.. image:: img/tuto_3d2.webp
|
|
|
|
|
|
3D content
|
|
|
~~~~~~~~~~
|
|
|

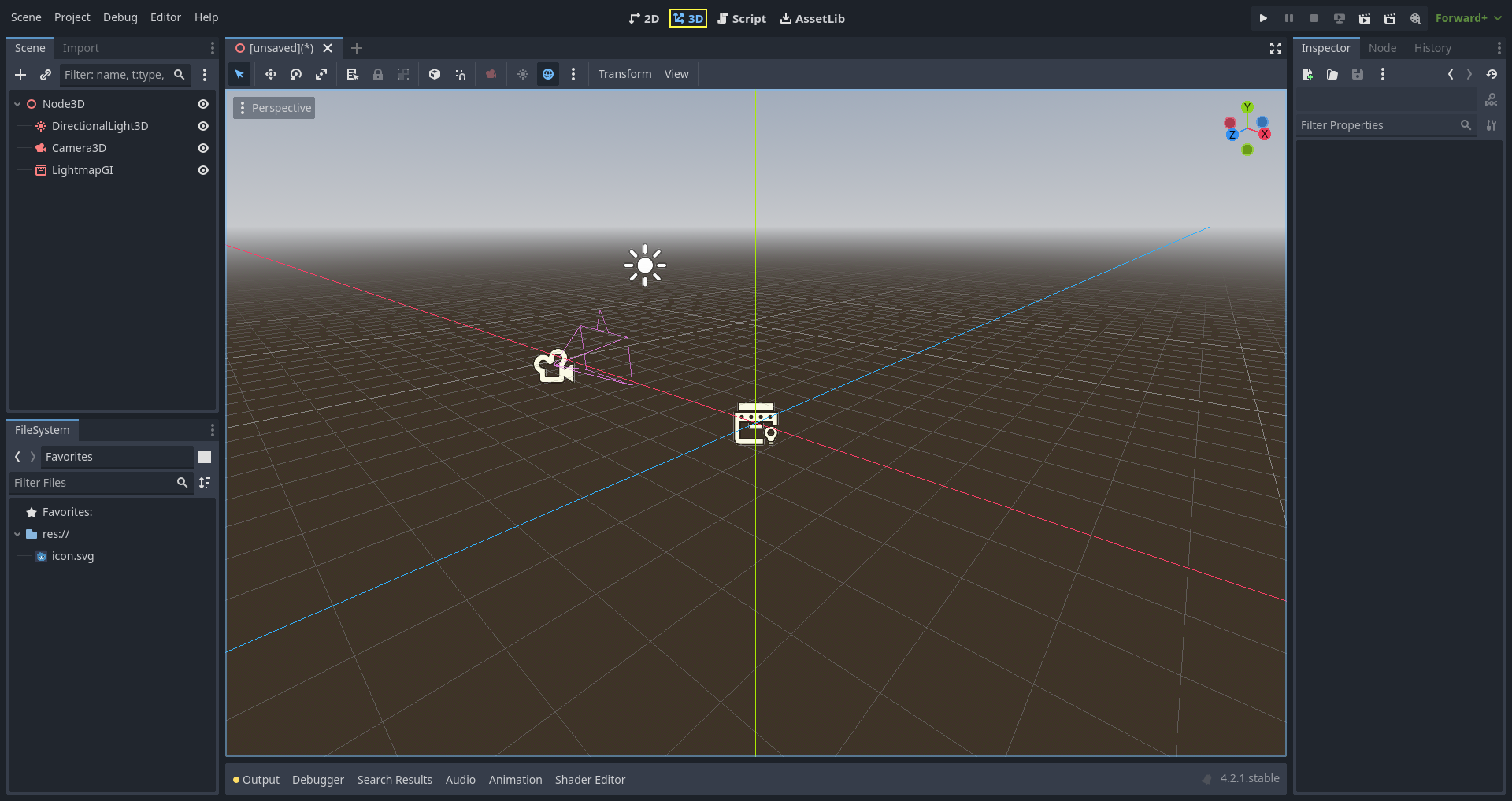

@@ -117,14 +113,14 @@ Editing 3D scenes is done in the 3D tab. This tab can be selected
|
|
|
manually, but it will be automatically enabled when a Node3D node is
|
|
|
selected.
|
|
|
|
|
|
-.. image:: img/tuto_3d3.png
|
|
|
+.. image:: img/tuto_3d3.webp
|
|
|
|
|
|
Default 3D scene navigation controls are similar to Blender (aiming to
|
|
|
have some sort of consistency in the free software pipeline..), but
|
|
|
options are included to customize mouse buttons and behavior to be
|
|
|
similar to other tools in the Editor Settings:
|
|
|
|
|
|
-.. image:: img/tuto_3d4.png
|
|
|
+.. image:: img/tuto_3d4.webp
|
|
|
|
|
|
Coordinate system
|
|
|
-----------------
|
|
|

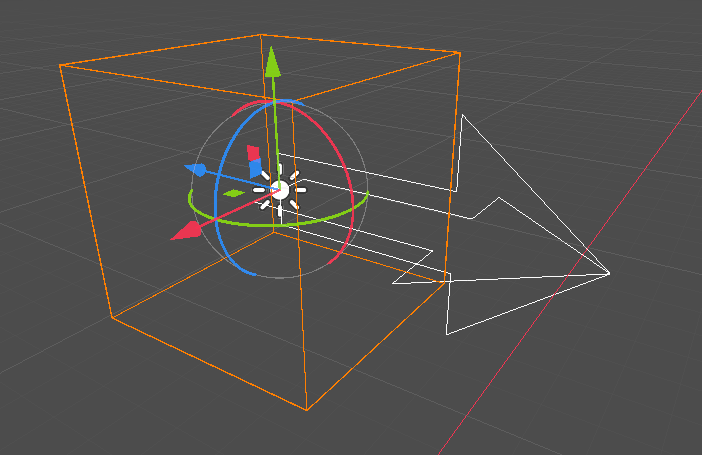

@@ -167,7 +163,7 @@ respectively. This convention applies to the grid and other gizmos too
|
|
|
(and also to the shader language, ordering of components for
|
|
|
Vector3, Color, etc.).
|
|
|
|
|
|
-.. image:: img/tuto_3d5.png
|
|
|
+.. image:: img/tuto_3d5.webp
|
|
|
|
|
|
Some useful keybindings:
|
|
|
|
|
|
@@ -210,26 +206,37 @@ View menu
|
|
|
|
|
|
The view options are controlled by the "View" menu in the viewport's toolbar.
|
|
|
|
|
|
-.. image:: img/tuto_3d6.png
|
|
|
+.. image:: img/tuto_3d6.webp
|
|
|
|
|
|

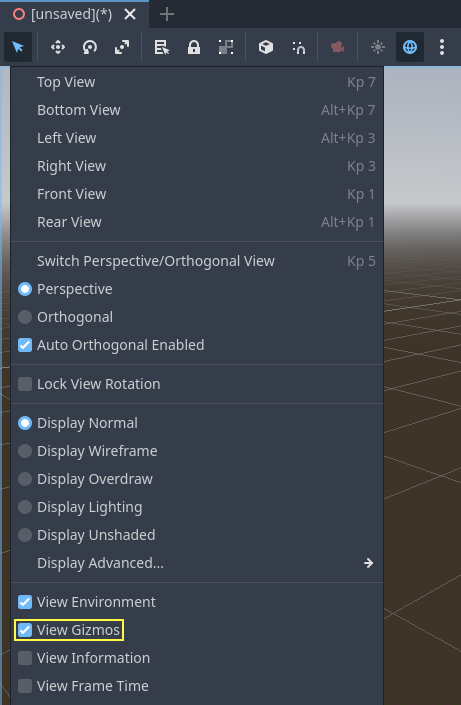

You can hide the gizmos in the 3D view of the editor through this menu:
|
|
|
|
|
|
-.. image:: img/tuto_3d6_1.png
|
|
|
+.. image:: img/tuto_3d6_1.webp
|
|
|
|
|
|

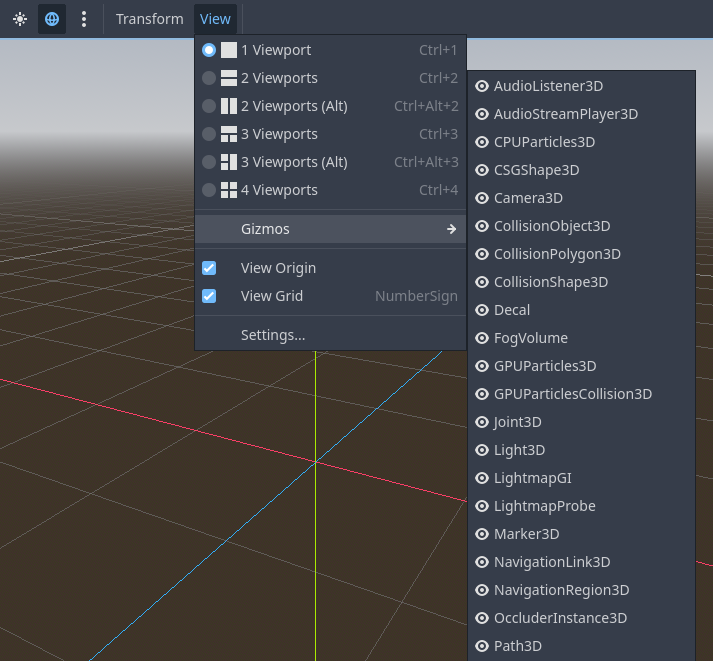

To hide a specific type of gizmos, you can toggle them off in the "View" menu.
|
|
|
|
|
|
-.. image:: img/tuto_3d6_2.png
|
|
|
+.. image:: img/tuto_3d6_2.webp
|
|
|
+
|
|
|
+preview environment and light
|
|
|
+-----------------------------
|
|
|
+
|
|
|
+By default, any 3D scene that doesn't have a :ref:`WorldEnvironment <class_WorldEnvironment>`
|
|
|
+node, or a :ref:`DirectionalLight3D <class_DirectionalLight3D>`, will have
|
|
|
+a preview turned on for what it's missing to light the scene.
|
|
|
|
|
|
-Default environment
|
|
|
--------------------
|
|
|
+The preview light and environment will only be visible in the scene while
|
|
|
+in the editor. If you run the scene or export the project they will not
|
|
|
+affect the scene.
|
|
|
|
|
|
-When created from the Project Manager, the 3D environment has a default sky.
|
|
|
+The preview light and environment can be turned on or off from the top menu
|
|
|
+by clicking on their respective icon, and the 3 dots dropdown menu next to
|
|
|
+those icons can be used to adjust the properties of the preview environment
|
|
|
+and light.
|
|
|
|
|
|
-.. image:: img/tuto_3d8.png
|
|
|
+.. image:: img/tuto_3d8.webp
|
|
|
|
|
|
-Given how physically-based rendering works, it is advised to always try to
|
|
|
-work with a default environment in order to provide indirect and reflected
|
|
|
-light to your objects.
|
|
|
+The same preview sun and environment is used for every scene in the same project,
|
|
|
+So only make adjustments that would apply to all of the scenes you will need a preview
|
|
|
+light and environment for.
|
|
|
|
|
|
Cameras
|
|
|
-------
|
|
|
@@ -239,7 +246,7 @@ displayed unless a :ref:`Camera3D <class_Camera3D>` is
|
|
|
also added to the scene. Cameras can work in either orthogonal or
|
|
|
perspective projections:
|
|
|
|
|
|
-.. image:: img/tuto_3d10.png
|
|
|
+.. image:: img/tuto_3d10.webp
|
|
|
|
|
|
Cameras are associated with (and only display to) a parent or grandparent
|
|
|
viewport. Since the root of the scene tree is a viewport, cameras will
|
