@@ -57,14 +57,15 @@ Mid level abstraction
|
|
|
Before going into how we would like to synchronize a game across the network, it can be helpful to understand how the base network API for synchronization works.
|
|
|
|
|
|
Godot uses a mid-level object :ref:`NetworkedMultiplayerPeer <class_NetworkedMultiplayerPeer>`.
|
|
|
-This object is not meant to be created directly, but is designed so that several implementations can provide it:
|
|
|
-
|
|
|

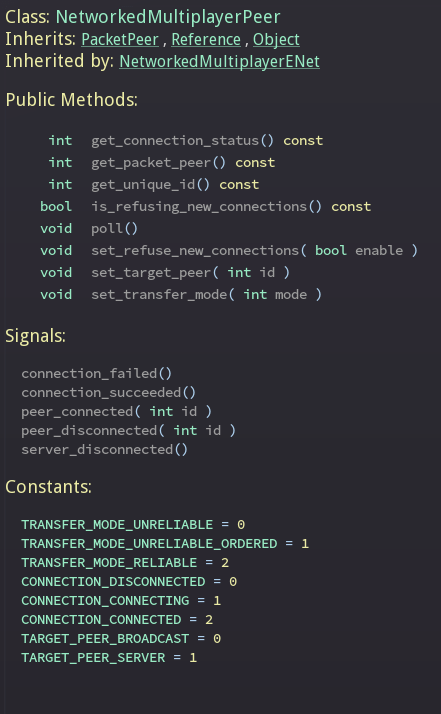

-.. image:: img/nmpeer.png
|
|
|
+This object is not meant to be created directly, but is designed so that several implementations can provide it.
|
|
|
|
|
|
This object extends from :ref:`PacketPeer <class_PacketPeer>`, so it inherits all the useful methods for serializing, sending and receiving data. On top of that, it adds methods to set a peer, transfer mode, etc. It also includes signals that will let you know when peers connect or disconnect.
|
|
|
|
|
|
This class interface can abstract most types of network layers, topologies and libraries. By default, Godot
|
|
|
-provides an implementation based on ENet (:ref:`NetworkedMultiplayerEnet <class_NetworkedMultiplayerENet>`), but this could be used to implement mobile APIs (for adhoc WiFi, Bluetooth) or custom device/console-specific networking APIs.
|
|
|
+provides an implementation based on ENet (:ref:`NetworkedMultiplayerEnet <class_NetworkedMultiplayerENet>`),
|
|
|
+one based on WebRTC (:ref:`WebRTCMultiplayer <class_WebRTCMultiplayer>`), and one based on WebSocket
|
|
|
+(:ref:`WebSocketMultiplayerPeer <class_WebSocketMultiplayerPeer>`), but this could be used to implement
|
|
|
+mobile APIs (for adhoc WiFi, Bluetooth) or custom device/console-specific networking APIs.
|
|
|
|
|
|
For most common cases, using this object directly is discouraged, as Godot provides even higher level networking facilities.
|
|
|
Yet it is made available in case a game has specific needs for a lower level API.
|
