+#include "raylib.h"
|
|
|
+#include "rlgl.h"
|
|
|
+#include <math.h>
|
|
|
+
|
|
|
+// Draw rectangle with rounded edges and horizontal gradient, with options to choose side of roundness
|
|
|
+// Adapted from both `DrawRectangleRounded` and `DrawRectangleGradientH`
|
|
|
+void DrawRectangleRoundedGradientH(Rectangle rec, float roundnessLeft, float roundnessRight, int segments, Color left, Color right)
|
|
|
+{
|
|
|
+ // Neither side is rounded
|
|
|
+ if ((roundnessLeft <= 0.0f && roundnessRight <= 0.0f) || (rec.width < 1) || (rec.height < 1 ))
|
|
|
+ {
|
|
|
+ DrawRectangleGradientEx(rec, left, left, right, right);
|
|
|
+ return;
|
|
|
+ }
|
|
|
+
|
|
|
+ if (roundnessLeft >= 1.0f) roundnessLeft = 1.0f;
|
|
|
+ if (roundnessRight >= 1.0f) roundnessRight = 1.0f;
|
|
|
+
|
|
|
+ // Calculate corner radius both from right and left
|
|
|
+ float recSize = rec.width > rec.height ? rec.height : rec.width;
|
|
|
+ float radiusLeft = (recSize*roundnessLeft)/2;
|
|
|
+ float radiusRight = (recSize*roundnessRight)/2;
|
|
|
+
|
|
|
+ if (radiusLeft <= 0.0f) radiusLeft = 0.0f;
|
|
|
+ if (radiusRight <= 0.0f) radiusRight = 0.0f;
|
|
|
+
|
|
|
+ if (radiusRight <= 0.0f && radiusLeft <= 0.0f) return;
|
|
|
+
|
|
|
+ float stepLength = 90.0f/(float)segments;
|
|
|
+
|
|
|
+ /*
|
|
|
+ Diagram Copied here for reference, original at `DrawRectangleRounded` source code
|
|
|
+
|
|
|
+ P0____________________P1
|
|
|
+ /| |\
|
|
|
+ /1| 2 |3\
|
|
|
+ P7 /__|____________________|__\ P2
|
|
|
+ | |P8 P9| |
|
|
|
+ | 8 | 9 | 4 |
|
|
|
+ | __|____________________|__ |
|
|
|
+ P6 \ |P11 P10| / P3
|
|
|
+ \7| 6 |5/
|
|
|
+ \|____________________|/
|
|
|
+ P5 P4
|
|
|
+ */
|
|
|
+
|
|
|
+ // Coordinates of the 12 points also apdated from `DrawRectangleRounded`
|
|
|
+ const Vector2 point[12] = {
|
|
|
+ // PO, P1, P2
|
|
|
+ {(float)rec.x + radiusLeft, rec.y}, {(float)(rec.x + rec.width) - radiusRight, rec.y}, { rec.x + rec.width, (float)rec.y + radiusRight },
|
|
|
+ // P3, P4
|
|
|
+ {rec.x + rec.width, (float)(rec.y + rec.height) - radiusRight}, {(float)(rec.x + rec.width) - radiusRight, rec.y + rec.height},
|
|
|
+ // P5, P6, P7
|
|
|
+ {(float)rec.x + radiusLeft, rec.y + rec.height}, { rec.x, (float)(rec.y + rec.height) - radiusLeft}, {rec.x, (float)rec.y + radiusLeft},
|
|
|
+ // P8, P9
|
|
|
+ {(float)rec.x + radiusLeft, (float)rec.y + radiusLeft}, {(float)(rec.x + rec.width) - radiusRight, (float)rec.y + radiusRight},
|
|
|
+ // P10, P11
|
|
|
+ {(float)(rec.x + rec.width) - radiusRight, (float)(rec.y + rec.height) - radiusRight}, {(float)rec.x + radiusLeft, (float)(rec.y + rec.height) - radiusLeft}
|
|
|
+ };
|
|
|
+
|
|
|
+ const Vector2 centers[4] = { point[8], point[9], point[10], point[11] };
|
|
|
+ const float angles[4] = { 180.0f, 270.0f, 0.0f, 90.0f };
|
|
|
+
|
|
|
+#if defined(SUPPORT_QUADS_DRAW_MODE)
|
|
|
+ rlSetTexture(GetShapesTexture().id);
|
|
|
+ Rectangle shapeRect = GetShapesTextureRectangle();
|
|
|
+
|
|
|
+ rlBegin(RL_QUADS);
|
|
|
+ // Draw all the 4 corners: [1] Upper Left Corner, [3] Upper Right Corner, [5] Lower Right Corner, [7] Lower Left Corner
|
|
|
+ for (int k = 0; k < 4; ++k)
|
|
|
+ {
|
|
|
+ Color color;
|
|
|
+ float radius;
|
|
|
+ if (k == 0) color = left, radius = radiusLeft; // [1] Upper Left Corner
|
|
|
+ if (k == 1) color = right, radius = radiusRight; // [3] Upper Right Corner
|
|
|
+ if (k == 2) color = right, radius = radiusRight; // [5] Lower Right Corner
|
|
|
+ if (k == 3) color = left, radius = radiusLeft; // [7] Lower Left Corner
|
|
|
+ float angle = angles[k];
|
|
|
+ const Vector2 center = centers[k];
|
|
|
+
|
|
|
+ for (int i = 0; i < segments/2; i++)
|
|
|
+ {
|
|
|
+ rlColor4ub(color.r, color.g, color.b, color.a);
|
|
|
+ rlTexCoord2f(shapeRect.x/texShapes.width, shapeRect.y/texShapes.height);
|
|
|
+ rlVertex2f(center.x, center.y);
|
|
|
+
|
|
|
+ rlTexCoord2f((shapeRect.x + shapeRect.width)/texShapes.width, shapeRect.y/texShapes.height);
|
|
|
+ rlVertex2f(center.x + cosf(DEG2RAD*(angle + stepLength*2))*radius, center.y + sinf(DEG2RAD*(angle + stepLength*2))*radius);
|
|
|
+
|
|
|
+ rlTexCoord2f((shapeRect.x + shapeRect.width)/texShapes.width, (shapeRect.y + shapeRect.height)/texShapes.height);
|
|
|
+ rlVertex2f(center.x + cosf(DEG2RAD*(angle + stepLength))*radius, center.y + sinf(DEG2RAD*(angle + stepLength))*radius);
|
|
|
+
|
|
|
+ rlTexCoord2f(shapeRect.x/texShapes.width, (shapeRect.y + shapeRect.height)/texShapes.height);
|
|
|
+ rlVertex2f(center.x + cosf(DEG2RAD*angle)*radius, center.y + sinf(DEG2RAD*angle)*radius);
|
|
|
+
|
|
|
+ angle += (stepLength*2);
|
|
|
+ }
|
|
|
+
|
|
|
+ // End one even segments
|
|
|
+ if ( segments % 2)
|
|
|
+ {
|
|
|
+ rlTexCoord2f(shapeRect.x/texShapes.width, shapeRect.y/texShapes.height);
|
|
|
+ rlVertex2f(center.x, center.y);
|
|
|
+
|
|
|
+ rlTexCoord2f((shapeRect.x + shapeRect.width)/texShapes.width, (shapeRect.y + shapeRect.height)/texShapes.height);
|
|
|
+ rlVertex2f(center.x + cosf(DEG2RAD*(angle + stepLength))*radius, center.y + sinf(DEG2RAD*(angle + stepLength))*radius);
|
|
|
+
|
|
|
+ rlTexCoord2f(shapeRect.x/texShapes.width, (shapeRect.y + shapeRect.height)/texShapes.height);
|
|
|
+ rlVertex2f(center.x + cosf(DEG2RAD*angle)*radius, center.y + sinf(DEG2RAD*angle)*radius);
|
|
|
+
|
|
|
+ rlTexCoord2f((shapeRect.x + shapeRect.width)/texShapes.width, shapeRect.y/texShapes.height);
|
|
|
+ rlVertex2f(center.x, center.y);
|
|
|
+ }
|
|
|
+ }
|
|
|
+
|
|
|
+ //
|
|
|
+ // Here we use the `Diagram` to guide ourselves to which point receives what color.
|
|
|
+ //
|
|
|
+ // By choosing the color correctly associated with a pointe the gradient effect
|
|
|
+ // will naturally come from OpenGL interpolation.
|
|
|
+ //
|
|
|
+
|
|
|
+ // [2] Upper Rectangle
|
|
|
+ rlColor4ub(left.r, left.g, left.b, left.a);
|
|
|
+ rlTexCoord2f(shapeRect.x/texShapes.width, shapeRect.y/texShapes.height);
|
|
|
+ rlVertex2f(point[0].x, point[0].y);
|
|
|
+ rlTexCoord2f(shapeRect.x/texShapes.width, (shapeRect.y + shapeRect.height)/texShapes.height);
|
|
|
+ rlVertex2f(point[8].x, point[8].y);
|
|
|
+
|
|
|
+ rlColor4ub(right.r, right.g, right.b, right.a);
|
|
|
+ rlTexCoord2f((shapeRect.x + shapeRect.width)/texShapes.width, (shapeRect.y + shapeRect.height)/texShapes.height);
|
|
|
+ rlVertex2f(point[9].x, point[9].y);
|
|
|
+
|
|
|
+ rlColor4ub(right.r, right.g, right.b, right.a);
|
|
|
+ rlTexCoord2f((shapeRect.x + shapeRect.width)/texShapes.width, shapeRect.y/texShapes.height);
|
|
|
+ rlVertex2f(point[1].x, point[1].y);
|
|
|
+
|
|
|
+ // [4] Left Rectangle
|
|
|
+ rlColor4ub(right.r, right.g, right.b, right.a);
|
|
|
+ rlTexCoord2f(shapeRect.x/texShapes.width, shapeRect.y/texShapes.height);
|
|
|
+ rlVertex2f(point[2].x, point[2].y);
|
|
|
+ rlTexCoord2f(shapeRect.x/texShapes.width, (shapeRect.y + shapeRect.height)/texShapes.height);
|
|
|
+ rlVertex2f(point[9].x, point[9].y);
|
|
|
+ rlTexCoord2f((shapeRect.x + shapeRect.width)/texShapes.width, (shapeRect.y + shapeRect.height)/texShapes.height);
|
|
|
+ rlVertex2f(point[10].x, point[10].y);
|
|
|
+ rlTexCoord2f((shapeRect.x + shapeRect.width)/texShapes.width, shapeRect.y/texShapes.height);
|
|
|
+ rlVertex2f(point[3].x, point[3].y);
|
|
|
+
|
|
|
+ // [6] Bottom Rectangle
|
|
|
+ rlColor4ub(left.r, left.g, left.b, left.a);
|
|
|
+ rlTexCoord2f(shapeRect.x/texShapes.width, shapeRect.y/texShapes.height);
|
|
|
+ rlVertex2f(point[11].x, point[11].y);
|
|
|
+ rlTexCoord2f(shapeRect.x/texShapes.width, (shapeRect.y + shapeRect.height)/texShapes.height);
|
|
|
+ rlVertex2f(point[5].x, point[5].y);
|
|
|
+
|
|
|
+ rlColor4ub(right.r, right.g, right.b, right.a);
|
|
|
+ rlTexCoord2f((shapeRect.x + shapeRect.width)/texShapes.width, (shapeRect.y + shapeRect.height)/texShapes.height);
|
|
|
+ rlVertex2f(point[4].x, point[4].y);
|
|
|
+ rlTexCoord2f((shapeRect.x + shapeRect.width)/texShapes.width, shapeRect.y/texShapes.height);
|
|
|
+ rlVertex2f(point[10].x, point[10].y);
|
|
|
+
|
|
|
+ // [8] left Rectangle
|
|
|
+ rlColor4ub(left.r, left.g, left.b, left.a);
|
|
|
+ rlTexCoord2f(shapeRect.x/texShapes.width, shapeRect.y/texShapes.height);
|
|
|
+ rlVertex2f(point[7].x, point[7].y);
|
|
|
+ rlTexCoord2f(shapeRect.x/texShapes.width, (shapeRect.y + shapeRect.height)/texShapes.height);
|
|
|
+ rlVertex2f(point[6].x, point[6].y);
|
|
|
+ rlTexCoord2f((shapeRect.x + shapeRect.width)/texShapes.width, (shapeRect.y + shapeRect.height)/texShapes.height);
|
|
|
+ rlVertex2f(point[11].x, point[11].y);
|
|
|
+ rlTexCoord2f((shapeRect.x + shapeRect.width)/texShapes.width, shapeRect.y/texShapes.height);
|
|
|
+ rlVertex2f(point[8].x, point[8].y);
|
|
|
+
|
|
|
+ // [9] Middle Rectangle
|
|
|
+ rlColor4ub(left.r, left.g, left.b, left.a);
|
|
|
+ rlTexCoord2f(shapeRect.x/texShapes.width, shapeRect.y/texShapes.height);
|
|
|
+ rlVertex2f(point[8].x, point[8].y);
|
|
|
+ rlTexCoord2f(shapeRect.x/texShapes.width, (shapeRect.y + shapeRect.height)/texShapes.height);
|
|
|
+ rlVertex2f(point[11].x, point[11].y);
|
|
|
+
|
|
|
+ rlColor4ub(right.r, right.g, right.b, right.a);
|
|
|
+ rlTexCoord2f((shapeRect.x + shapeRect.width)/texShapes.width, (shapeRect.y + shapeRect.height)/texShapes.height);
|
|
|
+ rlVertex2f(point[10].x, point[10].y);
|
|
|
+ rlTexCoord2f((shapeRect.x + shapeRect.width)/texShapes.width, shapeRect.y/texShapes.height);
|
|
|
+ rlVertex2f(point[9].x, point[9].y);
|
|
|
+
|
|
|
+ rlEnd();
|
|
|
+ rlSetTexture(0);
|
|
|
+#else
|
|
|
+
|
|
|
+ //
|
|
|
+ // Here we use the `Diagram` to guide ourselves to which point receives what color.
|
|
|
+ //
|
|
|
+ // By choosing the color correctly associated with a pointe the gradient effect
|
|
|
+ // will naturally come from OpenGL interpolation.
|
|
|
+ // But this time instead of Quad, we think in triangles.
|
|
|
+ //
|
|
|
+
|
|
|
+ rlBegin(RL_TRIANGLES);
|
|
|
+
|
|
|
+ // Draw all of the 4 corners: [1] Upper Left Corner, [3] Upper Right Corner, [5] Lower Right Corner, [7] Lower Left Corner
|
|
|
+ for (int k = 0; k < 4; ++k)
|
|
|
+ {
|
|
|
+ Color color;
|
|
|
+ float radius;
|
|
|
+ if (k == 0) color = left, radius = radiusLeft; // [1] Upper Left Corner
|
|
|
+ if (k == 1) color = right, radius = radiusRight; // [3] Upper Right Corner
|
|
|
+ if (k == 2) color = right, radius = radiusRight; // [5] Lower Right Corner
|
|
|
+ if (k == 3) color = left, radius = radiusLeft; // [7] Lower Left Corner
|
|
|
+ float angle = angles[k];
|
|
|
+ const Vector2 center = centers[k];
|
|
|
+ for (int i = 0; i < segments; i++)
|
|
|
+ {
|
|
|
+ rlColor4ub(color.r, color.g, color.b, color.a);
|
|
|
+ rlVertex2f(center.x, center.y);
|
|
|
+ rlVertex2f(center.x + cosf(DEG2RAD*(angle + stepLength))*radius, center.y + sinf(DEG2RAD*(angle + stepLength))*radius);
|
|
|
+ rlVertex2f(center.x + cosf(DEG2RAD*angle)*radius, center.y + sinf(DEG2RAD*angle)*radius);
|
|
|
+ angle += stepLength;
|
|
|
+ }
|
|
|
+ }
|
|
|
+
|
|
|
+ // [2] Upper Rectangle
|
|
|
+ rlColor4ub(left.r, left.g, left.b, left.a);
|
|
|
+ rlVertex2f(point[0].x, point[0].y);
|
|
|
+ rlVertex2f(point[8].x, point[8].y);
|
|
|
+ rlColor4ub(right.r, right.g, right.b, right.a);
|
|
|
+ rlVertex2f(point[9].x, point[9].y);
|
|
|
+ rlVertex2f(point[1].x, point[1].y);
|
|
|
+ rlColor4ub(left.r, left.g, left.b, left.a);
|
|
|
+ rlVertex2f(point[0].x, point[0].y);
|
|
|
+ rlColor4ub(right.r, right.g, right.b, right.a);
|
|
|
+ rlVertex2f(point[9].x, point[9].y);
|
|
|
+
|
|
|
+ // [4] Right Rectangle
|
|
|
+ rlColor4ub(right.r, right.g, right.b, right.a);
|
|
|
+ rlVertex2f(point[9].x, point[9].y);
|
|
|
+ rlVertex2f(point[10].x, point[10].y);
|
|
|
+ rlVertex2f(point[3].x, point[3].y);
|
|
|
+ rlVertex2f(point[2].x, point[2].y);
|
|
|
+ rlVertex2f(point[9].x, point[9].y);
|
|
|
+ rlVertex2f(point[3].x, point[3].y);
|
|
|
+
|
|
|
+ // [6] Bottom Rectangle
|
|
|
+ rlColor4ub(left.r, left.g, left.b, left.a);
|
|
|
+ rlVertex2f(point[11].x, point[11].y);
|
|
|
+ rlVertex2f(point[5].x, point[5].y);
|
|
|
+ rlColor4ub(right.r, right.g, right.b, right.a);
|
|
|
+ rlVertex2f(point[4].x, point[4].y);
|
|
|
+ rlVertex2f(point[10].x, point[10].y);
|
|
|
+ rlColor4ub(left.r, left.g, left.b, left.a);
|
|
|
+ rlVertex2f(point[11].x, point[11].y);
|
|
|
+ rlColor4ub(right.r, right.g, right.b, right.a);
|
|
|
+ rlVertex2f(point[4].x, point[4].y);
|
|
|
+
|
|
|
+ // [8] Left Rectangle
|
|
|
+ rlColor4ub(left.r, left.g, left.b, left.a);
|
|
|
+ rlVertex2f(point[7].x, point[7].y);
|
|
|
+ rlVertex2f(point[6].x, point[6].y);
|
|
|
+ rlVertex2f(point[11].x, point[11].y);
|
|
|
+ rlVertex2f(point[8].x, point[8].y);
|
|
|
+ rlVertex2f(point[7].x, point[7].y);
|
|
|
+ rlVertex2f(point[11].x, point[11].y);
|
|
|
+
|
|
|
+ // [9] Middle Rectangle
|
|
|
+ rlColor4ub(left.r, left.g, left.b, left.a);
|
|
|
+ rlVertex2f(point[8].x, point[8].y);
|
|
|
+ rlVertex2f(point[11].x, point[11].y);
|
|
|
+ rlColor4ub(right.r, right.g, right.b, right.a);
|
|
|
+ rlVertex2f(point[10].x, point[10].y);
|
|
|
+ rlVertex2f(point[9].x, point[9].y);
|
|
|
+ rlColor4ub(left.r, left.g, left.b, left.a);
|
|
|
+ rlVertex2f(point[8].x, point[8].y);
|
|
|
+ rlColor4ub(right.r, right.g, right.b, right.a);
|
|
|
+ rlVertex2f(point[10].x, point[10].y);
|
|
|
+ rlEnd();
|
|
|
+#endif
|
|
|
+}
|
|
|
+
|
|
|
+int main(int argc, char *argv[])
|
|
|
+{
|
|
|
+ // Initialization
|
|
|
+ //--------------------------------------------------------------------------------------
|
|
|
+ const int screenWidth = 800;
|
|
|
+ const int screenHeight = 450;
|
|
|
+ InitWindow(screenWidth, screenHeight, "raylib [shapes] example - rectangle avanced");
|
|
|
+ SetTargetFPS(60);
|
|
|
+ //--------------------------------------------------------------------------------------
|
|
|
+
|
|
|
+ // Main game loop
|
|
|
+ while (!WindowShouldClose()) // Detect window close button or ESC key
|
|
|
+ {
|
|
|
+ // Update rectangle bounds
|
|
|
+ //----------------------------------------------------------------------------------
|
|
|
+ double width = GetScreenWidth()/2.0, height = GetScreenHeight()/6.0;
|
|
|
+ Rectangle rec = {
|
|
|
+ GetScreenWidth() / 2.0 - width/2,
|
|
|
+ GetScreenHeight() / 2.0 - (5)*(height/2),
|
|
|
+ width, height
|
|
|
+ };
|
|
|
+ //--------------------------------------------------------------------------------------
|
|
|
+
|
|
|
+ // Draw
|
|
|
+ //----------------------------------------------------------------------------------
|
|
|
+ BeginDrawing();
|
|
|
+ ClearBackground(RAYWHITE);
|
|
|
+
|
|
|

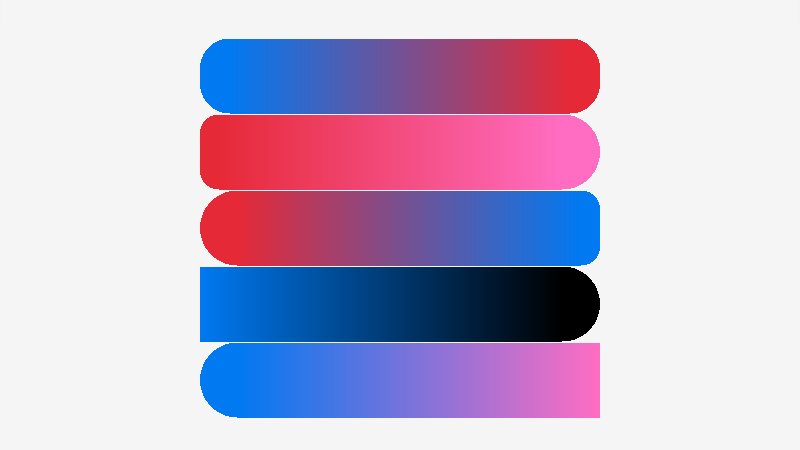

+ // Draw All Rectangles with different roundess for each side and different gradients
|
|
|
+ DrawRectangleRoundedGradientH(rec, 0.8, 0.8, 36, BLUE, RED);
|
|
|
+
|
|
|
+ rec.y += rec.height + 1;
|
|
|
+ DrawRectangleRoundedGradientH(rec, 0.5, 1.0, 36, RED, PINK);
|
|
|
+
|
|
|
+ rec.y += rec.height + 1;
|
|
|
+ DrawRectangleRoundedGradientH(rec, 1.0, 0.5, 36, RED, BLUE);
|
|
|
+
|
|
|
+ rec.y += rec.height + 1;
|
|
|
+ DrawRectangleRoundedGradientH(rec, 0.0, 1.0, 36, BLUE, BLACK);
|
|
|
+
|
|
|
+ rec.y += rec.height + 1;
|
|
|
+ DrawRectangleRoundedGradientH(rec, 1.0, 0.0, 36, BLUE, PINK);
|
|
|
+ EndDrawing();
|
|
|
+ //--------------------------------------------------------------------------------------
|
|
|
+ }
|
|
|
+
|
|
|
+ // De-Initialization
|
|
|
+ //--------------------------------------------------------------------------------------
|
|
|
+ CloseWindow(); // Close window and OpenGL context
|
|
|
+ //--------------------------------------------------------------------------------------
|
|
|
+ return 0;
|
|
|
+}
|
|
|
+
|
