+<html lang="en">
|
|
|
+ <head>
|
|
|
+ <title>three.js webgpu - mrt readback</title>
|
|
|
+ <meta charset="utf-8">
|
|
|
+ <link rel="shortcut icon" href="#">
|
|
|
+ <meta name="viewport" content="width=device-width, user-scalable=no, minimum-scale=1.0, maximum-scale=1.0">
|
|
|
+ <link type="text/css" rel="stylesheet" href="main.css">
|
|
|
+ </head>
|
|
|
+ <body>
|
|
|
+ <div id="info">
|
|
|
+ <a href="https://threejs.org" target="_blank" rel="noopener">three.js</a> webgpu - mrt readback
|
|
|
+ </div>
|
|
|
+
|
|
|
+ <script type="importmap">
|
|
|
+ {
|
|
|
+ "imports": {
|
|
|
+ "three": "../build/three.module.js",
|
|
|
+ "three/addons/": "./jsm/",
|
|
|
+ "three/nodes": "./jsm/nodes/Nodes.js"
|
|
|
+ }
|
|
|
+ }
|
|
|
+ </script>
|
|
|
+
|
|
|
+ <script type="module">
|
|
|
+
|
|
|
+ import * as THREE from 'three';
|
|
|
+
|
|
|
+ import { OrbitControls } from 'three/addons/controls/OrbitControls.js';
|
|
|
+ import { GUI } from 'three/addons/libs/lil-gui.module.min.js';
|
|
|
+
|
|
|
+ import { MeshBasicNodeMaterial, NodeMaterial, mix, modelNormalMatrix, normalGeometry, normalize, outputStruct, step, texture, uniform, uv, varying, vec2, vec4 } from 'three/nodes';
|
|
|
+ import WebGPU from 'three/addons/capabilities/WebGPU.js';
|
|
|
+ import WebGL from 'three/addons/capabilities/WebGL.js';
|
|
|
+
|
|
|
+ import WebGPURenderer from 'three/addons/renderers/webgpu/WebGPURenderer.js';
|
|
|
+
|
|
|
+ import QuadMesh from 'three/addons/objects/QuadMesh.js';
|
|
|
+
|
|
|
+ let camera, scene, renderer, torus;
|
|
|
+ let quadMesh, renderTarget, readbackTarget, material, readbackMaterial, pixelBuffer, pixelBufferTexture;
|
|
|
+
|
|
|
+ const gui = new GUI();
|
|
|
+
|
|
|
+ const options = {
|
|
|
+ selection: 'mrt',
|
|
|
+ };
|
|
|
+
|
|
|
+ gui.add( options, 'selection', [ 'mrt', 'diffuse', 'normal' ] );
|
|
|
+
|
|
|
+ class WriteGBufferMaterial extends NodeMaterial {
|
|
|
+
|
|
|
+ constructor( diffuseTexture ) {
|
|
|
+
|
|
|
+ super();
|
|
|
+
|
|
|
+ this.lights = false;
|
|
|
+ this.fog = false;
|
|
|
+ this.colorSpaced = false;
|
|
|
+
|
|
|
+ this.diffuseTexture = diffuseTexture;
|
|
|
+
|
|
|
+ const vUv = varying( uv() );
|
|
|
+
|
|
|
+ const transformedNormal = modelNormalMatrix.mul( normalGeometry );
|
|
|
+ const vNormal = varying( normalize( transformedNormal ) );
|
|
|
+
|
|
|
+ const repeat = uniform( vec2( 5, 0.5 ) );
|
|
|
+
|
|
|
+ const gColor = texture( this.diffuseTexture, vUv.mul( repeat ) );
|
|
|
+ const gNormal = vec4( normalize( vNormal ), 1.0 );
|
|
|
+
|
|
|
+ this.fragmentNode = outputStruct( gColor, gNormal );
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ class ReadGBufferMaterial extends NodeMaterial {
|
|
|
+
|
|
|
+ constructor( tDiffuse, tNormal ) {
|
|
|
+
|
|
|
+ super();
|
|
|
+
|
|
|
+ this.lights = false;
|
|
|
+ this.fog = false;
|
|
|
+
|
|
|
+ const vUv = varying( uv() );
|
|
|
+
|
|
|
+ const diffuse = texture( tDiffuse, vUv );
|
|
|
+ const normal = texture( tNormal, vUv );
|
|
|
+
|
|
|

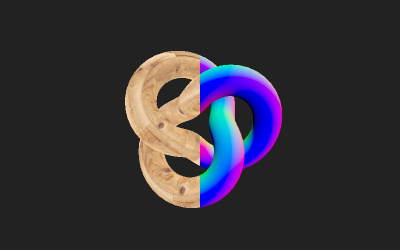

+ this.fragmentNode = mix( diffuse, normal, step( 0.5, vUv.x ) );
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ init();
|
|
|
+
|
|
|
+ function init() {
|
|
|
+
|
|
|
+ if ( WebGPU.isAvailable() === false && WebGL.isWebGL2Available() === false ) {
|
|
|
+
|
|
|
+ document.body.appendChild( WebGPU.getErrorMessage() );
|
|
|
+
|
|
|
+ throw new Error( 'No WebGPU or WebGL2 support' );
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ renderer = new WebGPURenderer( { antialias: true } );
|
|
|
+ renderer.setPixelRatio( window.devicePixelRatio );
|
|
|
+ renderer.setSize( window.innerWidth, window.innerHeight );
|
|
|
+ renderer.setAnimationLoop( render );
|
|
|
+ document.body.appendChild( renderer.domElement );
|
|
|
+
|
|
|
+ // Create a multi render target with Float buffers
|
|
|
+
|
|
|
+ renderTarget = new THREE.RenderTarget(
|
|
|
+ window.innerWidth * window.devicePixelRatio,
|
|
|
+ window.innerHeight * window.devicePixelRatio,
|
|
|
+ { count: 2, minFilter: THREE.NearestFilter, magFilter: THREE.NearestFilter }
|
|
|
+ );
|
|
|
+
|
|
|
+ // Name our G-Buffer attachments for debugging
|
|
|
+
|
|
|
+ renderTarget.textures[ 0 ].name = 'diffuse';
|
|
|
+ renderTarget.textures[ 1 ].name = 'normal';
|
|
|
+
|
|
|
+
|
|
|
+ // Init readback render target, readback data texture, readback material
|
|
|
+ // Be careful with the size! 512 is already big. Reading data back from the GPU is computationally intensive
|
|
|
+
|
|
|
+ const size = 512;
|
|
|
+
|
|
|
+ readbackTarget = new THREE.RenderTarget( size, size, { count: 2 } );
|
|
|
+
|
|
|
+ pixelBuffer = new Uint8Array( size ** 2 * 4 ).fill( 0 );
|
|
|
+ pixelBufferTexture = new THREE.DataTexture( pixelBuffer, size, size );
|
|
|
+ pixelBufferTexture.type = THREE.UnsignedByteType;
|
|
|
+ pixelBufferTexture.format = THREE.RGBAFormat;
|
|
|
+
|
|
|
+ readbackMaterial = new MeshBasicNodeMaterial();
|
|
|
+ readbackMaterial.colorNode = texture( pixelBufferTexture );
|
|
|
+
|
|
|
+
|
|
|
+ // Scene setup
|
|
|
+
|
|
|
+ scene = new THREE.Scene();
|
|
|
+ scene.background = new THREE.Color( 0x222222 );
|
|
|
+
|
|
|
+ camera = new THREE.PerspectiveCamera( 70, window.innerWidth / window.innerHeight, 0.1, 50 );
|
|
|
+ camera.position.z = 4;
|
|
|
+
|
|
|
+
|
|
|
+ const loader = new THREE.TextureLoader();
|
|
|
+
|
|
|
+ const diffuse = loader.load( 'textures/hardwood2_diffuse.jpg' );
|
|
|
+ diffuse.colorSpace = THREE.SRGBColorSpace;
|
|
|
+ diffuse.wrapS = THREE.RepeatWrapping;
|
|
|
+ diffuse.wrapT = THREE.RepeatWrapping;
|
|
|
+
|
|
|
+ torus = new THREE.Mesh(
|
|
|
+ new THREE.TorusKnotGeometry( 1, 0.3, 128, 32 ),
|
|
|
+ new WriteGBufferMaterial( diffuse )
|
|
|
+ );
|
|
|
+
|
|
|
+ scene.add( torus );
|
|
|
+
|
|
|
+
|
|
|
+ material = new ReadGBufferMaterial( renderTarget.textures[ 0 ], renderTarget.textures[ 1 ] );
|
|
|
+ quadMesh = new QuadMesh( material );
|
|
|
+
|
|
|
+ // Controls
|
|
|
+
|
|
|
+ new OrbitControls( camera, renderer.domElement );
|
|
|
+
|
|
|
+ window.addEventListener( 'resize', onWindowResize );
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ function onWindowResize() {
|
|
|
+
|
|
|
+ camera.aspect = window.innerWidth / window.innerHeight;
|
|
|
+ camera.updateProjectionMatrix();
|
|
|
+
|
|
|
+ renderer.setSize( window.innerWidth, window.innerHeight );
|
|
|
+
|
|
|
+ const dpr = renderer.getPixelRatio();
|
|
|
+ renderTarget.setSize( window.innerWidth * dpr, window.innerHeight * dpr );
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ async function render( time ) {
|
|
|
+
|
|
|
+ torus.rotation.y = ( time / 1000 ) * .4;
|
|
|
+
|
|
|
+ // render scene into target
|
|
|
+ renderer.setRenderTarget( renderTarget );
|
|
|
+ renderer.render( scene, camera );
|
|
|
+
|
|
|
+ // render post FX
|
|
|
+ renderer.setRenderTarget( null );
|
|
|
+
|
|
|
+ if ( options.selection === 'mrt' ) {
|
|
|
+
|
|
|
+ quadMesh.material = material;
|
|
|
+
|
|
|
+ } else {
|
|
|
+
|
|
|
+ quadMesh.material = readbackMaterial;
|
|
|
+
|
|
|
+ await readback();
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ quadMesh.render( renderer );
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ async function readback() {
|
|
|
+
|
|
|
+ renderer.setRenderTarget( readbackTarget );
|
|
|
+ renderer.render( scene, camera );
|
|
|
+ renderer.setRenderTarget( null );
|
|
|
+
|
|
|
+ const width = readbackTarget.width;
|
|
|
+ const height = readbackTarget.height;
|
|
|
+
|
|
|
+ const selection = options.selection;
|
|
|
+
|
|
|
+ if ( selection === 'diffuse' ) {
|
|
|
+
|
|
|
+ pixelBuffer = await renderer.readRenderTargetPixelsAsync( readbackTarget, 0, 0, width, height, 0 ); // zero is optional
|
|
|
+
|
|
|
+ pixelBufferTexture.image.data = pixelBuffer;
|
|
|
+ pixelBufferTexture.needsUpdate = true;
|
|
|
+
|
|
|
+ } else if ( selection === 'normal' ) {
|
|
|
+
|
|
|
+ pixelBuffer = await renderer.readRenderTargetPixelsAsync( readbackTarget, 0, 0, width, height, 1 );
|
|
|
+
|
|
|
+ pixelBufferTexture.image.data = pixelBuffer;
|
|
|
+ pixelBufferTexture.needsUpdate = true;
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ </script>
|
|
|
+
|
|
|
+ </body>
|
|
|
+</html>
|
