+<!DOCTYPE html>
|
|
|
+<html lang="en">
|
|
|
+<head>
|
|
|
+ <title>three.js webgpu - renderbundle</title>
|
|
|
+ <meta charset="utf-8">
|
|
|
+ <meta name="viewport" content="width=device-width, user-scalable=no, minimum-scale=1.0, maximum-scale=1.0">
|
|
|
+ <link type="text/css" rel="stylesheet" href="main.css">
|
|
|
+ <style>
|
|
|
+ #info {
|
|
|
+ background-color: rgba(0,0,0,0.75);
|
|
|
+ }
|
|
|
+ </style>
|
|
|
+</head>
|
|
|
+<body>
|
|
|
+
|
|
|
+ <div id="info">
|
|
|
+
|
|
|
+ <a href="https://threejs.org" target="_blank" rel="noopener">three.js</a> webgpu - renderbundle
|
|
|
+ <br />
|
|
|
+ (WebGL uses 10 times fewer meshes to prevent performance issues.)
|
|
|
+
|
|
|
+ </div>
|
|
|
+
|
|
|
+ <div id="backend" style="position: absolute; top: 200px; left: 0; color: #fff; background-color: rgba(0,0,0,0.75); padding: 5px;">
|
|
|
+ Draw Calls: 0
|
|
|
+ </div>
|
|
|
+
|
|
|
+ <script type="importmap">
|
|
|
+ {
|
|
|
+ "imports": {
|
|
|
+ "three": "../build/three.module.js",
|
|
|
+ "three/addons/": "./jsm/",
|
|
|
+ "three/nodes": "./jsm/nodes/Nodes.js",
|
|
|
+ "stats-gl": "https://cdn.jsdelivr.net/npm/[email protected]/dist/main.js"
|
|
|
+ }
|
|
|
+ }
|
|
|
+ </script>
|
|
|
+
|
|
|
+ <script type="module">
|
|
|
+ import * as THREE from 'three';
|
|
|
+
|
|
|
+ import Stats from 'stats-gl';
|
|
|
+ import { GUI } from 'three/addons/libs/lil-gui.module.min.js';
|
|
|
+ import { OrbitControls } from 'three/addons/controls/OrbitControls.js';
|
|
|
+ import WebGPURenderer from 'three/addons/renderers/webgpu/WebGPURenderer.js';
|
|
|
+ import { MeshToonNodeMaterial } from 'three/nodes';
|
|
|
+
|
|
|
+ let camera, scene, renderer;
|
|
|
+ let controls, stats;
|
|
|
+ let gui;
|
|
|
+ let geometries, group;
|
|
|
+
|
|
|
+ let renderTimeAverages = [];
|
|
|
+ //
|
|
|
+
|
|
|
+ const position = new THREE.Vector3();
|
|
|
+ const rotation = new THREE.Euler();
|
|
|
+ const quaternion = new THREE.Quaternion();
|
|
|
+ const scale = new THREE.Vector3();
|
|
|
+
|
|
|
+ //
|
|
|
+
|
|
|
+ const MAX_GEOMETRY_COUNT = 4000;
|
|
|
+
|
|
|
+ const api = {
|
|
|
+ webgpu: true,
|
|
|
+ renderBundle: true,
|
|
|
+ count: MAX_GEOMETRY_COUNT,
|
|
|
+ opacity: 1,
|
|
|
+ };
|
|
|
+
|
|
|
+
|
|
|
+ init( ! api.webgpu );
|
|
|
+
|
|
|
+ //
|
|
|
+
|
|
|
+ function randomizeMatrix( matrix ) {
|
|
|
+
|
|
|
+ position.x = Math.random() * 80 - 40;
|
|
|
+ position.y = Math.random() * 80 - 40;
|
|
|
+ position.z = Math.random() * 80 - 40;
|
|
|
+
|
|
|
+ rotation.x = Math.random() * 2 * Math.PI;
|
|
|
+ rotation.y = Math.random() * 2 * Math.PI;
|
|
|
+ rotation.z = Math.random() * 2 * Math.PI;
|
|
|
+
|
|
|
+ quaternion.setFromEuler( rotation );
|
|
|
+
|
|
|
+ const factorScale = api.webgpu ? 1 : 2.0;
|
|
|
+ scale.x = scale.y = scale.z = 0.35 * factorScale + ( Math.random() * 0.5 * factorScale );
|
|
|
+
|
|
|
+ return matrix.compose( position, quaternion, scale );
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ function randomizeRotationSpeed( rotation ) {
|
|
|
+
|
|
|
+ rotation.x = Math.random() * .05;
|
|
|
+ rotation.y = Math.random() * .05;
|
|
|
+ rotation.z = Math.random() * .05;
|
|
|
+ return rotation;
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ function initGeometries() {
|
|
|
+
|
|
|
+ geometries = [
|
|
|
+ new THREE.ConeGeometry( 1.0, 2.0, 3, 1 ),
|
|
|
+ new THREE.BoxGeometry( 2.0, 2.0, 2.0 ),
|
|
|
+ new THREE.PlaneGeometry( 2.0, 2, 1, 1 ),
|
|
|
+ new THREE.CapsuleGeometry( ),
|
|
|
+ new THREE.CircleGeometry( 1.0, 3 ),
|
|
|
+ new THREE.CylinderGeometry( 1.0, 1.0, 2.0, 3, 1 ),
|
|
|
+ new THREE.DodecahedronGeometry( 1.0, 0 ),
|
|
|
+ new THREE.IcosahedronGeometry( 1.0, 0 ),
|
|
|
+ new THREE.OctahedronGeometry( 1.0, 0 ),
|
|
|
+ new THREE.PolyhedronGeometry( [ 0, 0, 0 ], [ 0, 0, 0 ], 1, 0 ),
|
|
|
+ new THREE.RingGeometry( 1.0, 1.5, 3 ),
|
|
|
+ new THREE.SphereGeometry( 1.0, 3, 2 ),
|
|
|
+ new THREE.TetrahedronGeometry( 1.0, 0 ),
|
|
|
+ new THREE.TorusGeometry( 1.0, 0.5, 3, 3 ),
|
|
|
+ new THREE.TorusKnotGeometry( 1.0, 0.5, 20, 3, 1, 1 ),
|
|
|
+ ];
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+
|
|
|
+
|
|
|
+
|
|
|
+ function cleanup() {
|
|
|
+
|
|
|
+ if ( group ) {
|
|
|
+
|
|
|
+ group.parent.remove( group );
|
|
|
+
|
|
|
+ if ( group.dispose ) {
|
|
|
+
|
|
|
+ group.dispose();
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ function initMesh( count ) {
|
|
|
+
|
|
|
+ cleanup();
|
|
|
+ initRegularMesh( count );
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+
|
|
|
+ function initRegularMesh( count ) {
|
|
|
+
|
|
|
+ group = new THREE.Group();
|
|
|
+ group.static = api.renderBundle;
|
|
|
+
|
|
|
+ for ( let i = 0; i < count; i ++ ) {
|
|
|
+
|
|
|
+ const material = new MeshToonNodeMaterial( {
|
|
|
+ color: new THREE.Color( Math.random() * 0xffffff ),
|
|
|
+ side: THREE.DoubleSide,
|
|
|
+ } );
|
|
|
+
|
|
|
+ const child = new THREE.Mesh( geometries[ i % geometries.length ], material );
|
|
|
+ randomizeMatrix( child.matrix );
|
|
|
+ child.matrix.decompose( child.position, child.quaternion, child.scale );
|
|
|
+ child.userData.rotationSpeed = randomizeRotationSpeed( new THREE.Euler() );
|
|
|
+ child.frustumCulled = false;
|
|
|
+ group.add( child );
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ scene.add( group );
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ async function init( forceWebGL = false ) {
|
|
|
+
|
|
|
+ const count = api.count / ( api.webgpu ? 1 : 10 );
|
|
|
+
|
|
|
+ renderTimeAverages = [];
|
|
|
+
|
|
|
+ if ( renderer ) {
|
|
|
+
|
|
|
+ renderer.dispose();
|
|
|
+ controls.dispose();
|
|
|
+ document.body.removeChild( stats.dom );
|
|
|
+ document.body.removeChild( renderer.domElement );
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ // camera
|
|
|
+
|
|
|
+ const aspect = window.innerWidth / window.innerHeight;
|
|
|
+
|
|
|
+ camera = new THREE.PerspectiveCamera( 70, aspect, 1, 100 );
|
|
|
+ camera.position.z = 50;
|
|
|
+
|
|
|
+ // renderer
|
|
|
+
|
|
|
+ renderer = new WebGPURenderer( { antialias: true, forceWebGL } );
|
|
|
+ renderer.setPixelRatio( window.devicePixelRatio );
|
|
|
+ renderer.setSize( window.innerWidth, window.innerHeight );
|
|
|
+
|
|
|
+ renderer.setAnimationLoop( animate );
|
|
|
+
|
|
|
+ // scene
|
|
|
+
|
|
|
+ scene = new THREE.Scene();
|
|
|
+ scene.background = new THREE.Color( 0xc1c1c1 );
|
|
|
+
|
|
|
+ const light = new THREE.DirectionalLight( 0xffffff, 3.4 );
|
|
|
+ scene.add( light );
|
|
|
+
|
|
|
+ document.body.appendChild( renderer.domElement );
|
|
|
+
|
|
|
+ await renderer.init();
|
|
|
+
|
|
|
+
|
|
|
+ initGeometries();
|
|
|
+ initMesh( count );
|
|
|
+
|
|
|
+ controls = new OrbitControls( camera, renderer.domElement );
|
|
|
+ controls.autoRotate = true;
|
|
|
+ controls.autoRotateSpeed = 1.0;
|
|
|
+
|
|
|
+ // stats
|
|
|
+
|
|
|
+ stats = new Stats( {
|
|
|
+ precision: 3,
|
|
|
+ horizontal: false
|
|
|
+ } );
|
|
|
+ // stats.init( renderer );
|
|
|
+ document.body.appendChild( stats.dom );
|
|
|
+ stats.dom.style.position = 'absolute';
|
|
|
+
|
|
|
+ // gui
|
|
|
+
|
|
|
+ gui = new GUI();
|
|
|
+ gui.add( api, 'renderBundle' ).onChange( () => {
|
|
|
+
|
|
|
+ init( ! api.webgpu );
|
|
|
+
|
|
|
+ } );
|
|
|
+
|
|
|
+ gui.add( api, 'webgpu' ).onChange( () => {
|
|
|
+
|
|
|
+ init( ! api.webgpu );
|
|
|
+
|
|
|
+ } );
|
|
|
+
|
|
|
+ // listeners
|
|
|
+
|
|
|
+ window.addEventListener( 'resize', onWindowResize );
|
|
|
+
|
|
|
+ function onWindowResize() {
|
|
|
+
|
|
|
+ const width = window.innerWidth;
|
|
|
+ const height = window.innerHeight;
|
|
|
+
|
|
|
+ camera.aspect = width / height;
|
|
|
+ camera.updateProjectionMatrix();
|
|
|
+
|
|
|
+ renderer.setSize( width, height );
|
|
|
+ group.needsUpdate = true;
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ async function animate() {
|
|
|
+
|
|
|
+ animateMeshes();
|
|
|
+
|
|
|
+ controls.update();
|
|
|
+
|
|
|
+ const renderTimeAverage = performance.now();
|
|
|
+ renderer.render( scene, camera );
|
|
|
+
|
|
|
+ // push only the last 60 render times
|
|
|
+ renderTimeAverages.push( performance.now() - renderTimeAverage );
|
|
|
+ if ( renderTimeAverages.length > 60 ) renderTimeAverages.shift();
|
|
|
+
|
|
|
+ const average = renderTimeAverages.reduce( ( a, b ) => a + b, 0 ) / renderTimeAverages.length;
|
|
|
+ stats.update();
|
|
|
+
|
|
|

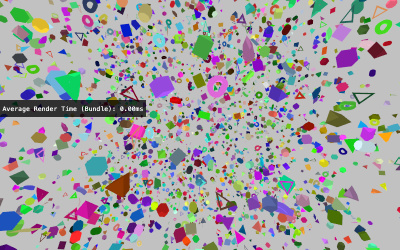

+ document.getElementById( 'backend' ).innerText = `Average Render Time ${api.renderBundle ? '(Bundle)' : ''}: ` + average.toFixed( 2 ) + 'ms';
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ function animateMeshes() {
|
|
|
+
|
|
|
+ const count = api.count / ( api.webgpu ? 1 : 10 );
|
|
|
+ const countDynamic = api.dynamic / ( api.webgpu ? 1 : 10 );
|
|
|
+
|
|
|
+ const loopNum = Math.min( count, countDynamic );
|
|
|
+
|
|
|
+
|
|
|
+ for ( let i = 0; i < loopNum; i ++ ) {
|
|
|
+
|
|
|
+ const child = group.children[ i ];
|
|
|
+ const rotationSpeed = child.userData.rotationSpeed;
|
|
|
+
|
|
|
+ child.rotation.set(
|
|
|
+ child.rotation.x + rotationSpeed.x,
|
|
|
+ child.rotation.y + rotationSpeed.y,
|
|
|
+ child.rotation.z + rotationSpeed.z
|
|
|
+ );
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+}
|
|
|
+ </script>
|
|
|
+
|
|
|
+</body>
|
|
|
+</html>
|
