@@ -0,0 +1,258 @@
|
|
|
+<!DOCTYPE html>
|
|
|
+<html lang="en">
|
|
|
+ <head>
|
|
|
+ <title>three.js xr - controls - trasnform</title>
|
|
|
+ <meta charset="utf-8">
|
|
|
+ <meta name="viewport" content="width=device-width, initial-scale=1.0, user-scalable=no">
|
|
|
+ <link type="text/css" rel="stylesheet" href="main.css">
|
|
|
+ </head>
|
|
|
+ <body>
|
|
|
+
|
|
|
+ <div id="info">
|
|
|
+ <a href="https://threejs.org" target="_blank" rel="noopener">three.js</a> xr - controls - transform
|
|
|
+ </div>
|
|
|
+
|
|
|
+ <script type="importmap">
|
|
|
+ {
|
|
|
+ "imports": {
|
|
|
+ "three": "../build/three.module.js",
|
|
|
+ "three/addons/": "./jsm/"
|
|
|
+ }
|
|
|
+ }
|
|
|
+ </script>
|
|
|
+
|
|
|
+ <script type="module">
|
|
|
+
|
|
|
+ import * as THREE from 'three';
|
|
|
+ import { TransformControls } from 'three/addons/controls/TransformControls.js';
|
|
|
+ import { XRButton } from 'three/addons/webxr/XRButton.js';
|
|
|
+ import { XRControllerModelFactory } from 'three/addons/webxr/XRControllerModelFactory.js';
|
|
|
+
|
|
|
+ let container;
|
|
|
+ let camera, scene, renderer;
|
|
|
+ let controller1, controller2, line;
|
|
|
+ let controllerGrip1, controllerGrip2;
|
|
|
+
|
|
|
+ let raycaster;
|
|
|
+
|
|
|
+ let controls, group;
|
|
|
+
|
|
|
+ init();
|
|
|
+ animate();
|
|
|
+
|
|
|
+ function init() {
|
|
|
+
|
|
|
+ container = document.createElement( 'div' );
|
|
|
+ document.body.appendChild( container );
|
|
|
+
|
|
|
+ scene = new THREE.Scene();
|
|
|
+ scene.background = new THREE.Color( 0x808080 );
|
|
|
+
|
|
|
+ camera = new THREE.PerspectiveCamera( 50, window.innerWidth / window.innerHeight, 0.1, 10 );
|
|
|
+ camera.position.set( 0, 1.6, 0 );
|
|
|
+
|
|
|
+ const floorGeometry = new THREE.PlaneGeometry( 6, 6 );
|
|
|
+ const floorMaterial = new THREE.ShadowMaterial( { opacity: 0.25, blending: THREE.CustomBlending, transparent: false } );
|
|
|
+ const floor = new THREE.Mesh( floorGeometry, floorMaterial );
|
|
|
+ floor.rotation.x = - Math.PI / 2;
|
|
|
+ floor.receiveShadow = true;
|
|
|
+ scene.add( floor );
|
|
|
+
|
|
|
+ scene.add( new THREE.HemisphereLight( 0xbcbcbc, 0xa5a5a5, 3 ) );
|
|
|
+
|
|
|
+ const light = new THREE.DirectionalLight( 0xffffff, 3 );
|
|
|
+ light.position.set( 0, 6, 0 );
|
|
|
+ light.castShadow = true;
|
|
|
+ light.shadow.camera.top = 3;
|
|
|
+ light.shadow.camera.bottom = - 3;
|
|
|
+ light.shadow.camera.right = 3;
|
|
|
+ light.shadow.camera.left = - 3;
|
|
|
+ light.shadow.mapSize.set( 4096, 4096 );
|
|
|
+ scene.add( light );
|
|
|
+
|
|
|
+ group = new THREE.Group();
|
|
|
+ scene.add( group );
|
|
|
+
|
|
|

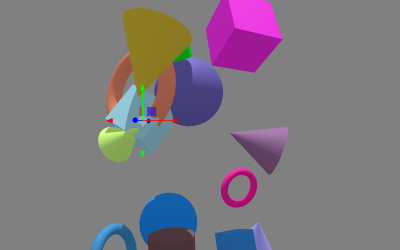

+ const geometries = [
|
|
|
+ new THREE.BoxGeometry( 0.2, 0.2, 0.2 ),
|
|
|
+ new THREE.ConeGeometry( 0.2, 0.4, 64 ),
|
|
|
+ new THREE.CylinderGeometry( 0.2, 0.2, 0.2, 64 ),
|
|
|
+ new THREE.IcosahedronGeometry( 0.2, 8 ),
|
|
|
+ new THREE.TorusGeometry( 0.2, 0.04, 64, 32 )
|
|
|
+ ];
|
|
|
+
|
|
|
+ for ( let i = 0; i < 16; i ++ ) {
|
|
|
+
|
|
|
+ const geometry = geometries[ Math.floor( Math.random() * geometries.length ) ];
|
|
|
+ const material = new THREE.MeshStandardMaterial( {
|
|
|
+ color: Math.random() * 0xffffff,
|
|
|
+ roughness: 0.7,
|
|
|
+ metalness: 0.0
|
|
|
+ } );
|
|
|
+
|
|
|
+ const object = new THREE.Mesh( geometry, material );
|
|
|
+
|
|
|
+ object.position.x = Math.random() - 0.5;
|
|
|
+ object.position.y = Math.random() * 2 + 0.5;
|
|
|
+ object.position.z = Math.random() - 2.5;
|
|
|
+
|
|
|
+ object.rotation.x = Math.random() * 2 * Math.PI;
|
|
|
+ object.rotation.y = Math.random() * 2 * Math.PI;
|
|
|
+ object.rotation.z = Math.random() * 2 * Math.PI;
|
|
|
+
|
|
|
+ object.scale.setScalar( Math.random() + 0.5 );
|
|
|
+
|
|
|
+ object.castShadow = true;
|
|
|
+ object.receiveShadow = true;
|
|
|
+
|
|
|
+ group.add( object );
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ //
|
|
|
+
|
|
|
+ renderer = new THREE.WebGLRenderer( { antialias: true } );
|
|
|
+ renderer.setPixelRatio( window.devicePixelRatio );
|
|
|
+ renderer.setSize( window.innerWidth, window.innerHeight );
|
|
|
+ renderer.shadowMap.enabled = true;
|
|
|
+ renderer.xr.enabled = true;
|
|
|
+ container.appendChild( renderer.domElement );
|
|
|
+
|
|
|
+ document.body.appendChild( XRButton.createButton( renderer ) );
|
|
|
+
|
|
|
+ // controllers
|
|
|
+
|
|
|
+ controller1 = renderer.xr.getController( 0 );
|
|
|
+ controller1.addEventListener( 'select', onSelect );
|
|
|
+ controller1.addEventListener( 'selectstart', onControllerEvent );
|
|
|
+ controller1.addEventListener( 'selectend', onControllerEvent );
|
|
|
+ controller1.addEventListener( 'move', onControllerEvent );
|
|
|
+ controller1.userData.active = false;
|
|
|
+ scene.add( controller1 );
|
|
|
+
|
|
|
+ controller2 = renderer.xr.getController( 1 );
|
|
|
+ controller2.addEventListener( 'select', onSelect );
|
|
|
+ controller2.addEventListener( 'selectstart', onControllerEvent );
|
|
|
+ controller2.addEventListener( 'selectend', onControllerEvent );
|
|
|
+ controller2.addEventListener( 'move', onControllerEvent );
|
|
|
+ controller2.userData.active = true;
|
|
|
+ scene.add( controller2 );
|
|
|
+
|
|
|
+ const controllerModelFactory = new XRControllerModelFactory();
|
|
|
+
|
|
|
+ controllerGrip1 = renderer.xr.getControllerGrip( 0 );
|
|
|
+ controllerGrip1.add( controllerModelFactory.createControllerModel( controllerGrip1 ) );
|
|
|
+ scene.add( controllerGrip1 );
|
|
|
+
|
|
|
+ controllerGrip2 = renderer.xr.getControllerGrip( 1 );
|
|
|
+ controllerGrip2.add( controllerModelFactory.createControllerModel( controllerGrip2 ) );
|
|
|
+ scene.add( controllerGrip2 );
|
|
|
+
|
|
|
+ //
|
|
|
+
|
|
|
+ const geometry = new THREE.BufferGeometry().setFromPoints( [ new THREE.Vector3( 0, 0, 0 ), new THREE.Vector3( 0, 0, - 1 ) ] );
|
|
|
+
|
|
|
+ line = new THREE.Line( geometry );
|
|
|
+ line.name = 'line';
|
|
|
+ line.scale.z = 5;
|
|
|
+
|
|
|
+ raycaster = new THREE.Raycaster();
|
|
|
+
|
|
|
+ // controls
|
|
|
+
|
|
|
+ controls = new TransformControls( camera, renderer.domElement );
|
|
|
+ controls.attach( group.children[ 0 ] );
|
|
|
+ scene.add( controls );
|
|
|
+
|
|
|
+ //
|
|
|
+
|
|
|
+ window.addEventListener( 'resize', onWindowResize );
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ function onSelect( event ) {
|
|
|
+
|
|
|
+ const controller = event.target;
|
|
|
+
|
|
|
+ controller1.userData.active = false;
|
|
|
+ controller2.userData.active = false;
|
|
|
+
|
|
|
+ if ( controller === controller1 ) {
|
|
|
+
|
|
|
+ controller1.userData.active = true;
|
|
|
+ controller1.add( line );
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ if ( controller === controller2 ) {
|
|
|
+
|
|
|
+ controller2.userData.active = true;
|
|
|
+ controller2.add( line );
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ raycaster.setFromXRController( controller );
|
|
|
+
|
|
|
+ const intersects = raycaster.intersectObjects( group.children );
|
|
|
+
|
|
|
+ if ( intersects.length > 0 ) {
|
|
|
+
|
|
|
+ controls.attach( intersects[ 0 ].object );
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ function onControllerEvent( event ) {
|
|
|
+
|
|
|
+ const controller = event.target;
|
|
|
+
|
|
|
+ if ( controller.userData.active === false ) return;
|
|
|
+
|
|
|
+ controls.getRaycaster().setFromXRController( controller );
|
|
|
+
|
|
|
+ switch ( event.type ) {
|
|
|
+
|
|
|
+ case 'selectstart':
|
|
|
+ controls.pointerDown( null );
|
|
|
+ break;
|
|
|
+
|
|
|
+ case 'selectend':
|
|
|
+ controls.pointerUp( null );
|
|
|
+ break;
|
|
|
+
|
|
|
+ case 'move':
|
|
|
+ controls.pointerHover( null );
|
|
|
+ controls.pointerMove( null );
|
|
|
+ break;
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ function onWindowResize() {
|
|
|
+
|
|
|
+ camera.aspect = window.innerWidth / window.innerHeight;
|
|
|
+ camera.updateProjectionMatrix();
|
|
|
+
|
|
|
+ renderer.setSize( window.innerWidth, window.innerHeight );
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ //
|
|
|
+
|
|
|
+ function animate() {
|
|
|
+
|
|
|
+ renderer.setAnimationLoop( render );
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ function render() {
|
|
|
+
|
|
|
+ renderer.render( scene, camera );
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ </script>
|
|
|
+ </body>
|
|
|
+</html>
|
