WebGL2: Added support for Uniform Buffer Objects. (#21558)

* WebGL2: Added support for Uniform Buffer Objects.

* Update WebGLState.js

Clean up.

* Fix example.
Michael Herzog %!s(int64=3) %!d(string=hai) anos
pai
e860e3dfc2
achega
bd61eb4469
Modificáronse 11 ficheiros con 877 adicións e 3 borrados
Dividir vista Mostrar estatísticas de Diff
  1. 1 0
      examples/files.json
  2. BIN=BIN
      examples/screenshots/webgl2_ubo.jpg
  3. 314 0
      examples/webgl2_ubo.html
  4. 1 0
      src/Three.js
  5. 93 0
      src/core/UniformsGroup.js
  6. 3 1
      src/materials/ShaderMaterial.js
  7. 29 1
      src/renderers/WebGLRenderer.js
  8. 14 0
      src/renderers/shaders/UniformsUtils.js
  9. 47 0
      src/renderers/webgl/WebGLState.js
  10. 372 0
      src/renderers/webgl/WebGLUniformsGroups.js
  11. 3 1
      utils/build/rollup.config.js

+ 1 - 0
examples/files.json
Ver ficheiro

@@ -304,6 +304,7 @@

 		"webgl2_multiple_rendertargets",

 		"webgl2_multisampled_renderbuffers",

 		"webgl2_rendertarget_texture2darray",

+		"webgl2_ubo",

 		"webgl2_volume_cloud",

 		"webgl2_volume_instancing",

 		"webgl2_volume_perlin"

BIN=BIN

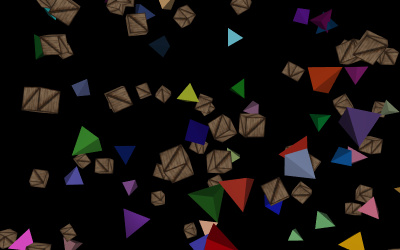

examples/screenshots/webgl2_ubo.jpg
Ver ficheiro


+ 314 - 0
examples/webgl2_ubo.html
Ver ficheiro

@@ -0,0 +1,314 @@

+<!DOCTYPE html>

+<html lang="en">

+	<head>

+		<title>three.js WebGL 2 - Uniform Buffer Objects</title>

+		<meta charset="utf-8">

+		<meta name="viewport" content="width=device-width, user-scalable=no, minimum-scale=1.0, maximum-scale=1.0">

+		<link type="text/css" rel="stylesheet" href="main.css">

+	</head>

+

+	<body>

+

+		<div id="info">

+			<a href="http://threejs.org" target="_blank" rel="noopener">three.js</a> - Uniform Buffer Objects

+		</div>

+		<div id="container"></div>

+

+		<script id="vertexShader1" type="x-shader/x-vertex">

+

+			uniform ViewData {

+				mat4 projectionMatrix;

+				mat4 viewMatrix;

+			};

+

+			uniform mat4 modelMatrix;

+			uniform mat3 normalMatrix;

+

+			in vec3 position;

+			in vec3 normal;

+

+			out vec3 vPositionEye;

+			out vec3 vNormalEye;

+

+			void main()	{

+

+				vec4 vertexPositionEye = viewMatrix * modelMatrix * vec4( position, 1.0 );

+

+				vPositionEye = vertexPositionEye.xyz;

+				vNormalEye = normalMatrix * normal;

+

+				gl_Position = projectionMatrix * vertexPositionEye;

+

+			}

+

+		</script>

+

+		<script id="fragmentShader1" type="x-shader/x-fragment">

+

+			precision highp float;

+

+			uniform LightingData {

+				vec3 position;

+				vec3 ambientColor;

+				vec3 diffuseColor;

+				vec3 specularColor;

+				float shininess;

+			} Light;

+

+			uniform vec3 color;

+

+			in vec3 vPositionEye;

+			in vec3 vNormalEye;

+

+			out vec4 fragColor;

+

+			void main()	{

+

+				// a very basic lighting equation (Phong reflection model) for testing

+

+				vec3 l = normalize( Light.position - vPositionEye );

+				vec3 n = normalize( vNormalEye );

+				vec3 e = - normalize( vPositionEye );

+				vec3 r = normalize( reflect( - l, n ) );

+

+				float diffuseLightWeighting = max( dot( n, l ), 0.0 );

+				float specularLightWeighting = max( dot( r, e ), 0.0 );

+

+				specularLightWeighting = pow( specularLightWeighting, Light.shininess );

+

+				vec3 lightWeighting = Light.ambientColor +

+					Light.diffuseColor * diffuseLightWeighting +

+					Light.specularColor * specularLightWeighting;

+

+				fragColor = vec4( color.rgb * lightWeighting.rgb, 1.0 );

+

+			}

+

+		</script>

+

+		<script id="vertexShader2" type="x-shader/x-vertex">

+

+			uniform ViewData {

+				mat4 projectionMatrix;

+				mat4 viewMatrix;

+			};

+

+			uniform mat4 modelMatrix;

+

+			in vec3 position;

+			in vec2 uv;

+

+			out vec2 vUv;

+

+			void main()	{

+

+				vUv = uv;

+

+				gl_Position = projectionMatrix * viewMatrix * modelMatrix * vec4( position, 1.0 );

+

+			}

+

+		</script>

+

+		<script id="fragmentShader2" type="x-shader/x-fragment">

+

+			precision highp float;

+

+			uniform sampler2D diffuseMap;

+

+			in vec2 vUv;

+

+			out vec4 fragColor;

+

+			void main()	{

+

+				fragColor = texture( diffuseMap, vUv );

+

+			}

+

+		</script>

+

+		<!-- Import maps polyfill -->

+		<!-- Remove this when import maps will be widely supported -->

+		<script async src="https://unpkg.com/[email protected]/dist/es-module-shims.js"></script>

+

+		<script type="importmap">

+			{

+				"imports": {

+					"three": "../build/three.module.js"

+				}

+			}

+		</script>

+

+

+

+		<script type="module">

+

+			import * as THREE from 'three';

+

+			import WebGL from './jsm/capabilities/WebGL.js';

+

+			let camera, scene, renderer, clock;

+

+			init();

+			animate();

+

+			function init() {

+

+				if ( WebGL.isWebGL2Available() === false ) {

+

+					document.body.appendChild( WebGL.getWebGL2ErrorMessage() );

+					return;

+

+				}

+

+				const container = document.getElementById( 'container' );

+

+				camera = new THREE.PerspectiveCamera( 45, window.innerWidth / window.innerHeight, 0.1, 100 );

+				camera.position.set( 0, 0, 25 );

+

+				scene = new THREE.Scene();

+				camera.lookAt( scene.position );

+

+				clock = new THREE.Clock();

+

+				// geometry

+

+				const geometry1 = new THREE.TetrahedronGeometry();

+				const geometry2 = new THREE.BoxGeometry();

+

+				// texture

+

+				const texture = new THREE.TextureLoader().load( 'textures/crate.gif' );

+

+				// uniforms groups

+

+				// Camera and lighting related data are perfect examples of using UBOs since you have to store these

+				// data just once. They can be shared across all shader programs.

+

+				const cameraUniformsGroup = new THREE.UniformsGroup();

+				cameraUniformsGroup.setName( 'ViewData' );

+				cameraUniformsGroup.add( new THREE.Uniform( camera.projectionMatrix ) ); // projection matrix

+				cameraUniformsGroup.add( new THREE.Uniform( camera.matrixWorldInverse ) ); // view matrix

+

+				const lightingUniformsGroup = new THREE.UniformsGroup();

+				lightingUniformsGroup.setName( 'LightingData' );

+				lightingUniformsGroup.add( new THREE.Uniform( new THREE.Vector3( 0, 0, 10 ) ) ); // light position

+				lightingUniformsGroup.add( new THREE.Uniform( new THREE.Color( 0x333333 ) ) ); // ambient color

+				lightingUniformsGroup.add( new THREE.Uniform( new THREE.Color( 0xaaaaaa ) ) ); // diffuse color

+				lightingUniformsGroup.add( new THREE.Uniform( new THREE.Color( 0xcccccc ) ) ); // specular color

+				lightingUniformsGroup.add( new THREE.Uniform( 64 ) ); // shininess

+

+				// materials

+

+				const material1 = new THREE.RawShaderMaterial( {

+					uniforms: {

+						modelMatrix: { value: null },

+						normalMatrix: { value: null },

+						color: { value: null }

+					},

+					vertexShader: document.getElementById( 'vertexShader1' ).textContent,

+					fragmentShader: document.getElementById( 'fragmentShader1' ).textContent,

+					glslVersion: THREE.GLSL3

+				} );

+

+				const material2 = new THREE.RawShaderMaterial( {

+					uniforms: {

+						modelMatrix: { value: null },

+						diffuseMap: { value: null },

+					},

+					vertexShader: document.getElementById( 'vertexShader2' ).textContent,

+					fragmentShader: document.getElementById( 'fragmentShader2' ).textContent,

+					glslVersion: THREE.GLSL3

+				} );

+

+				// meshes

+

+				for ( let i = 0; i < 200; i ++ ) {

+

+					let mesh;

+

+					if ( i % 2 === 0 ) {

+

+						mesh = new THREE.Mesh( geometry1, material1.clone() );

+

+						mesh.material.uniformsGroups = [ cameraUniformsGroup, lightingUniformsGroup ];

+						mesh.material.uniforms.modelMatrix.value = mesh.matrixWorld;

+						mesh.material.uniforms.normalMatrix.value = mesh.normalMatrix;

+						mesh.material.uniforms.color.value = new THREE.Color( 0xffffff * Math.random() );

+

+					} else {

+

+						mesh = new THREE.Mesh( geometry2, material2.clone() );

+

+						mesh.material.uniformsGroups = [ cameraUniformsGroup ];

+						mesh.material.uniforms.modelMatrix.value = mesh.matrixWorld;

+						mesh.material.uniforms.diffuseMap.value = texture;

+

+					}

+

+					scene.add( mesh );

+

+					const s = 1 + Math.random() * 0.5;

+

+					mesh.scale.x = s;

+					mesh.scale.y = s;

+					mesh.scale.z = s;

+

+					mesh.rotation.x = Math.random() * Math.PI;

+					mesh.rotation.y = Math.random() * Math.PI;

+					mesh.rotation.z = Math.random() * Math.PI;

+

+					mesh.position.x = Math.random() * 40 - 20;

+					mesh.position.y = Math.random() * 40 - 20;

+					mesh.position.z = Math.random() * 20 - 10;

+

+				}

+

+				//

+

+				renderer = new THREE.WebGLRenderer( { antialias: true } );

+				renderer.setPixelRatio( window.devicePixelRatio );

+				renderer.setSize( window.innerWidth, window.innerHeight );

+				container.appendChild( renderer.domElement );

+

+				window.addEventListener( 'resize', onWindowResize, false );

+

+			}

+

+			function onWindowResize() {

+

+				camera.aspect = window.innerWidth / window.innerHeight;

+				camera.updateProjectionMatrix();

+

+				renderer.setSize( window.innerWidth, window.innerHeight );

+

+			}

+

+			//

+

+			function animate() {

+

+				requestAnimationFrame( animate );

+

+				const delta = clock.getDelta();

+

+				scene.traverse( function ( child ) {

+

+					if ( child.isMesh ) {

+

+						child.rotation.x += delta * 0.5;

+						child.rotation.y += delta * 0.3;

+

+					}

+

+				} );

+

+				renderer.render( scene, camera );

+

+			}

+

+		</script>

+

+	</body>

+</html>

+ 1 - 0
src/Three.js
Ver ficheiro

@@ -90,6 +90,7 @@ export { AnimationObjectGroup } from './animation/AnimationObjectGroup.js';

 export { AnimationMixer } from './animation/AnimationMixer.js';

 export { AnimationClip } from './animation/AnimationClip.js';

 export { Uniform } from './core/Uniform.js';

+export { UniformsGroup } from './core/UniformsGroup.js';

 export { InstancedBufferGeometry } from './core/InstancedBufferGeometry.js';

 export { BufferGeometry } from './core/BufferGeometry.js';

 export { InterleavedBufferAttribute } from './core/InterleavedBufferAttribute.js';

+ 93 - 0
src/core/UniformsGroup.js
Ver ficheiro

@@ -0,0 +1,93 @@

+import { EventDispatcher } from './EventDispatcher.js';

+import { StaticDrawUsage } from '../constants.js';

+

+let id = 0;

+

+class UniformsGroup extends EventDispatcher {

+

+	constructor() {

+

+		super();

+

+		Object.defineProperty( this, 'id', { value: id ++ } );

+

+		this.name = '';

+

+		this.usage = StaticDrawUsage;

+		this.uniforms = [];

+

+	}

+

+	add( uniform ) {

+

+		this.uniforms.push( uniform );

+

+		return this;

+

+	}

+

+	remove( uniform ) {

+

+		const index = this.uniforms.indexOf( uniform );

+

+		if ( index !== - 1 ) this.uniforms.splice( index, 1 );

+

+		return this;

+

+	}

+

+	setName( name ) {

+

+		this.name = name;

+

+		return this;

+

+	}

+

+	setUsage( value ) {

+

+		this.usage = value;

+

+		return this;

+

+	}

+

+	dispose() {

+

+		this.dispatchEvent( { type: 'dispose' } );

+

+		return this;

+

+	}

+

+	copy( source ) {

+

+		this.name = source.name;

+		this.usage = source.usage;

+

+		const uniformsSource = source.uniforms;

+

+		this.uniforms.length = 0;

+

+		for ( let i = 0, l = uniformsSource.length; i < l; i ++ ) {

+

+			this.uniforms.push( uniformsSource[ i ].clone() );

+

+		}

+

+		return this;

+

+	}

+

+	clone() {

+

+		return new this.constructor().copy( this );

+

+	}

+

+}

+

+UniformsGroup.prototype.isUniformsGroup = true;

+

+

+export { UniformsGroup };

+ 3 - 1
src/materials/ShaderMaterial.js
Ver ficheiro

@@ -1,5 +1,5 @@

 import { Material } from './Material.js';

-import { cloneUniforms } from '../renderers/shaders/UniformsUtils.js';

+import { cloneUniforms, cloneUniformsGroups } from '../renderers/shaders/UniformsUtils.js';


 import default_vertex from '../renderers/shaders/ShaderChunk/default_vertex.glsl.js';

 import default_fragment from '../renderers/shaders/ShaderChunk/default_fragment.glsl.js';

@@ -16,6 +16,7 @@ class ShaderMaterial extends Material {


 		this.defines = {};

 		this.uniforms = {};

+		this.uniformsGroups = [];


 		this.vertexShader = default_vertex;

 		this.fragmentShader = default_fragment;

@@ -71,6 +72,7 @@ class ShaderMaterial extends Material {

 		this.vertexShader = source.vertexShader;


 		this.uniforms = cloneUniforms( source.uniforms );

+		this.uniformsGroups = cloneUniformsGroups( source.uniformsGroups );


 		this.defines = Object.assign( {}, source.defines );

+ 29 - 1
src/renderers/WebGLRenderer.js
Ver ficheiro

@@ -44,6 +44,7 @@ import { WebGLUniforms } from './webgl/WebGLUniforms.js';

 import { WebGLUtils } from './webgl/WebGLUtils.js';

 import { WebXRManager } from './webxr/WebXRManager.js';

 import { WebGLMaterials } from './webgl/WebGLMaterials.js';

+import { WebGLUniformsGroups } from './webgl/WebGLUniformsGroups.js';

 import { createElementNS } from '../utils.js';


 function createCanvasElement() {

@@ -307,7 +308,7 @@ function WebGLRenderer( parameters = {} ) {


 	let background, morphtargets, bufferRenderer, indexedBufferRenderer;


-	let utils, bindingStates;

+	let utils, bindingStates, uniformsGroups;


 	function initGLContext() {


@@ -338,6 +339,7 @@ function WebGLRenderer( parameters = {} ) {

 		renderStates = new WebGLRenderStates( extensions, capabilities );

 		background = new WebGLBackground( _this, cubemaps, state, objects, _alpha, _premultipliedAlpha );

 		shadowMap = new WebGLShadowMap( _this, objects, capabilities );

+		uniformsGroups = new WebGLUniformsGroups( _gl, info, capabilities, state );


 		bufferRenderer = new WebGLBufferRenderer( _gl, extensions, info, capabilities );

 		indexedBufferRenderer = new WebGLIndexedBufferRenderer( _gl, extensions, info, capabilities );

@@ -603,6 +605,7 @@ function WebGLRenderer( parameters = {} ) {

 		cubeuvmaps.dispose();

 		objects.dispose();

 		bindingStates.dispose();

+		uniformsGroups.dispose();

 		programCache.dispose();


 		xr.dispose();

@@ -1783,6 +1786,31 @@ function WebGLRenderer( parameters = {} ) {

 		p_uniforms.setValue( _gl, 'normalMatrix', object.normalMatrix );

 		p_uniforms.setValue( _gl, 'modelMatrix', object.matrixWorld );


+		// UBOs

+

+		if ( material.isShaderMaterial || material.isRawShaderMaterial ) {

+

+			const groups = material.uniformsGroups;

+

+			for ( let i = 0, l = groups.length; i < l; i ++ ) {

+

+				if ( capabilities.isWebGL2 ) {

+

+					const group = groups[ i ];

+

+					uniformsGroups.update( group, program );

+					uniformsGroups.bind( group, program );

+

+				} else {

+

+					console.warn( 'THREE.WebGLRenderer: Uniform Buffer Objects can only be used with WebGL 2.' );

+

+				}

+

+			}

+

+		}

+

 		return program;


 	}

+ 14 - 0
src/renderers/shaders/UniformsUtils.js
Ver ficheiro

@@ -59,6 +59,20 @@ export function mergeUniforms( uniforms ) {


 }


+export function cloneUniformsGroups( src ) {

+

+	const dst = [];

+

+	for ( let u = 0; u < src.length; u ++ ) {

+

+		dst.push( src[ u ].clone() );

+

+	}

+

+	return dst;

+

+}

+

 // Legacy


 const UniformsUtils = { clone: cloneUniforms, merge: mergeUniforms };

+ 47 - 0
src/renderers/webgl/WebGLState.js
Ver ficheiro

@@ -314,6 +314,9 @@ function WebGLState( gl, extensions, capabilities ) {

 	const depthBuffer = new DepthBuffer();

 	const stencilBuffer = new StencilBuffer();


+	const uboBindings = new WeakMap();

+	const uboProgamMap = new WeakMap();

+

 	let enabledCapabilities = {};


 	let currentBoundFramebuffers = {};

@@ -1064,6 +1067,47 @@ function WebGLState( gl, extensions, capabilities ) {


 	}


+	function updateUBOMapping( uniformsGroup, program ) {

+

+		let mapping = uboProgamMap.get( program );

+

+		if ( mapping === undefined ) {

+

+			mapping = new WeakMap();

+

+			uboProgamMap.set( program, mapping );

+

+		}

+

+		let blockIndex = mapping.get( uniformsGroup );

+

+		if ( blockIndex === undefined ) {

+

+			blockIndex = gl.getUniformBlockIndex( program, uniformsGroup.name );

+

+			mapping.set( uniformsGroup, blockIndex );

+

+		}

+

+	}

+

+	function uniformBlockBinding( uniformsGroup, program ) {

+

+		const mapping = uboProgamMap.get( program );

+		const blockIndex = mapping.get( uniformsGroup );

+

+		if ( uboBindings.get( uniformsGroup ) !== blockIndex ) {

+

+			// bind shader specific block index to global block point

+

+			gl.uniformBlockBinding( program, blockIndex, uniformsGroup.__bindingPointIndex );

+

+			uboBindings.set( uniformsGroup, blockIndex );

+

+		}

+

+	}

+

 	//


 	function reset() {

@@ -1191,6 +1235,9 @@ function WebGLState( gl, extensions, capabilities ) {

 		texImage2D: texImage2D,

 		texImage3D: texImage3D,


+		updateUBOMapping: updateUBOMapping,

+		uniformBlockBinding: uniformBlockBinding,

+

 		texStorage2D: texStorage2D,

 		texStorage3D: texStorage3D,

 		texSubImage2D: texSubImage2D,

+ 372 - 0
src/renderers/webgl/WebGLUniformsGroups.js
Ver ficheiro

@@ -0,0 +1,372 @@

+function WebGLUniformsGroups( gl, info, capabilities, state ) {

+

+	let buffers = {};

+	let updateList = {};

+	let allocatedBindingPoints = [];

+

+	const maxBindingPoints = ( capabilities.isWebGL2 ) ? gl.getParameter( gl.MAX_UNIFORM_BUFFER_BINDINGS ) : 0; // binding points are global whereas block indices are per shader program

+

+	function bind( uniformsGroup, program ) {

+

+		const webglProgram = program.program;

+		state.uniformBlockBinding( uniformsGroup, webglProgram );

+

+	}

+

+	function update( uniformsGroup, program ) {

+

+		let buffer = buffers[ uniformsGroup.id ];

+

+		if ( buffer === undefined ) {

+

+			prepareUniformsGroup( uniformsGroup );

+

+			buffer = createBuffer( uniformsGroup );

+			buffers[ uniformsGroup.id ] = buffer;

+

+			uniformsGroup.addEventListener( 'dispose', onUniformsGroupsDispose );

+

+		}

+

+		// ensure to update the binding points/block indices mapping for this program

+

+		const webglProgram = program.program;

+		state.updateUBOMapping( uniformsGroup, webglProgram );

+

+		// update UBO once per frame

+

+		const frame = info.render.frame;

+

+		if ( updateList[ uniformsGroup.id ] !== frame ) {

+

+			updateBufferData( uniformsGroup );

+

+			updateList[ uniformsGroup.id ] = frame;

+

+		}

+

+	}

+

+	function createBuffer( uniformsGroup ) {

+

+		// the setup of an UBO is independent of a particular shader program but global

+

+		const bindingPointIndex = allocateBindingPointIndex();

+		uniformsGroup.__bindingPointIndex = bindingPointIndex;

+

+		const buffer = gl.createBuffer();

+		const size = uniformsGroup.__size;

+		const usage = uniformsGroup.usage;

+

+		gl.bindBuffer( gl.UNIFORM_BUFFER, buffer );

+		gl.bufferData( gl.UNIFORM_BUFFER, size, usage );

+		gl.bindBuffer( gl.UNIFORM_BUFFER, null );

+		gl.bindBufferBase( gl.UNIFORM_BUFFER, bindingPointIndex, buffer );

+

+		return buffer;

+

+	}

+

+	function allocateBindingPointIndex() {

+

+		for ( let i = 0; i < maxBindingPoints; i ++ ) {

+

+			if ( allocatedBindingPoints.indexOf( i ) === - 1 ) {

+

+				allocatedBindingPoints.push( i );

+				return i;

+

+			}

+

+		}

+

+		console.error( 'THREE.WebGLRenderer: Maximum number of simultaneously usable uniforms groups reached.' );

+

+		return 0;

+

+	}

+

+	function updateBufferData( uniformsGroup ) {

+

+		const buffer = buffers[ uniformsGroup.id ];

+		const uniforms = uniformsGroup.uniforms;

+		const cache = uniformsGroup.__cache;

+

+		gl.bindBuffer( gl.UNIFORM_BUFFER, buffer );

+

+		for ( let i = 0, il = uniforms.length; i < il; i ++ ) {

+

+			const uniform = uniforms[ i ];

+

+			// partly update the buffer if necessary

+

+			if ( hasUniformChanged( uniform, i, cache ) === true ) {

+

+				const value = uniform.value;

+				const offset = uniform.__offset;

+

+				if ( typeof value === 'number' ) {

+

+					uniform.__data[ 0 ] = value;

+					gl.bufferSubData( gl.UNIFORM_BUFFER, offset, uniform.__data );

+

+				} else {

+

+					if ( uniform.value.isMatrix3 ) {

+

+						// manually converting 3x3 to 3x4

+

+						uniform.__data[ 0 ] = uniform.value.elements[ 0 ];

+						uniform.__data[ 1 ] = uniform.value.elements[ 1 ];

+						uniform.__data[ 2 ] = uniform.value.elements[ 2 ];

+						uniform.__data[ 3 ] = uniform.value.elements[ 0 ];

+						uniform.__data[ 4 ] = uniform.value.elements[ 3 ];

+						uniform.__data[ 5 ] = uniform.value.elements[ 4 ];

+						uniform.__data[ 6 ] = uniform.value.elements[ 5 ];

+						uniform.__data[ 7 ] = uniform.value.elements[ 0 ];

+						uniform.__data[ 8 ] = uniform.value.elements[ 6 ];

+						uniform.__data[ 9 ] = uniform.value.elements[ 7 ];

+						uniform.__data[ 10 ] = uniform.value.elements[ 8 ];

+						uniform.__data[ 11 ] = uniform.value.elements[ 0 ];

+

+					} else {

+

+						value.toArray( uniform.__data );

+

+					}

+

+					gl.bufferSubData( gl.UNIFORM_BUFFER, offset, uniform.__data );

+

+				}

+

+			}

+

+		}

+

+		gl.bindBuffer( gl.UNIFORM_BUFFER, null );

+

+	}

+

+	function hasUniformChanged( uniform, index, cache ) {

+

+		const value = uniform.value;

+

+		if ( cache[ index ] === undefined ) {

+

+			// cache entry does not exist so far

+

+			if ( typeof value === 'number' ) {

+

+				cache[ index ] = value;

+

+			} else {

+

+				cache[ index ] = value.clone();

+

+			}

+

+			return true;

+

+		} else {

+

+			// compare current value with cached entry

+

+			if ( typeof value === 'number' ) {

+

+				if ( cache[ index ] !== value ) {

+

+					cache[ index ] = value;

+					return true;

+

+				}

+

+			} else {

+

+				const cachedObject = cache[ index ];

+

+				if ( cachedObject.equals( value ) === false ) {

+

+					cachedObject.copy( value );

+					return true;

+

+				}

+

+			}

+

+		}

+

+		return false;

+

+	}

+

+	function prepareUniformsGroup( uniformsGroup ) {

+

+		// determine total buffer size according to the STD140 layout

+		// Hint: STD140 is the only supported layout in WebGL 2

+

+		const uniforms = uniformsGroup.uniforms;

+

+		let offset = 0; // global buffer offset in bytes

+		const chunkSize = 16; // size of a chunk in bytes

+		let chunkOffset = 0; // offset within a single chunk in bytes

+

+		for ( let i = 0, l = uniforms.length; i < l; i ++ ) {

+

+			const uniform = uniforms[ i ];

+			const info = getUniformSize( uniform );

+

+			// the following two properties will be used for partial buffer updates

+

+			uniform.__data = new Float32Array( info.storage / Float32Array.BYTES_PER_ELEMENT );

+			uniform.__offset = offset;

+

+			//

+

+			if ( i > 0 ) {

+

+				chunkOffset = offset % chunkSize;

+

+				const remainingSizeInChunk = chunkSize - chunkOffset;

+

+				// check for chunk overflow

+

+				if ( chunkOffset !== 0 && ( remainingSizeInChunk - info.boundary ) < 0 ) {

+

+					// add padding and adjust offset

+

+					offset += ( chunkSize - chunkOffset );

+					uniform.__offset = offset;

+

+				}

+

+			}

+

+			offset += info.storage;

+

+		}

+

+		// ensure correct final padding

+

+		chunkOffset = offset % chunkSize;

+

+		if ( chunkOffset > 0 ) offset += ( chunkSize - chunkOffset );

+

+		//

+

+		uniformsGroup.__size = offset;

+		uniformsGroup.__cache = {};

+

+		return this;

+

+	}

+

+	function getUniformSize( uniform ) {

+

+		const value = uniform.value;

+

+		const info = {

+			boundary: 0, // bytes

+			storage: 0 // bytes

+		};

+

+		// determine sizes according to STD140

+

+		if ( typeof value === 'number' ) {

+

+			// float/int

+

+			info.boundary = 4;

+			info.storage = 4;

+

+		} else if ( value.isVector2 ) {

+

+			// vec2

+

+			info.boundary = 8;

+			info.storage = 8;

+

+		} else if ( value.isVector3 || value.isColor ) {

+

+			// vec3

+

+			info.boundary = 16;

+			info.storage = 12; // evil: vec3 must start on a 16-byte boundary but it only consumes 12 bytes

+

+		} else if ( value.isVector4 ) {

+

+			// vec4

+

+			info.boundary = 16;

+			info.storage = 16;

+

+		} else if ( value.isMatrix3 ) {

+

+			// mat3 (in STD140 a 3x3 matrix is represented as 3x4)

+

+			info.boundary = 48;

+			info.storage = 48;

+

+		} else if ( value.isMatrix4 ) {

+

+			// mat4

+

+			info.boundary = 64;

+			info.storage = 64;

+

+		} else if ( value.isTexture ) {

+

+			console.warn( 'THREE.WebGLRenderer: Texture samplers can not be part of an uniforms group.' );

+

+		} else {

+

+			console.warn( 'THREE.WebGLRenderer: Unsupported uniform value type.', value );

+

+		}

+

+		return info;

+

+	}

+

+	function onUniformsGroupsDispose( event ) {

+

+		const uniformsGroup = event.target;

+

+		uniformsGroup.removeEventListener( 'dispose', onUniformsGroupsDispose );

+

+		const index = allocatedBindingPoints.indexOf( uniformsGroup.__bindingPointIndex );

+		allocatedBindingPoints.splice( index, 1 );

+

+		gl.deleteBuffer( buffers[ uniformsGroup.id ] );

+

+		delete buffers[ uniformsGroup.id ];

+		delete updateList[ uniformsGroup.id ];

+

+	}

+

+	function dispose() {

+

+		for ( const id in buffers ) {

+

+			gl.deleteBuffer( buffers[ id ] );

+

+		}

+

+		allocatedBindingPoints = [];

+		buffers = {};

+		updateList = {};

+

+	}

+

+	return {

+

+		bind: bind,

+		update: update,

+

+		dispose: dispose

+

+	};

+

+}

+

+

+export { WebGLUniformsGroups };

+ 3 - 1
utils/build/rollup.config.js
Ver ficheiro

@@ -122,6 +122,7 @@ export function glconstants() {

 		MAX_VERTEX_ATTRIBS: 34921,

 		MAX_TEXTURE_IMAGE_UNITS: 34930,

 		ARRAY_BUFFER: 34962,

+		UNIFORM_BUFFER: 35345,

 		ELEMENT_ARRAY_BUFFER: 34963,

 		STATIC_DRAW: 35044,

 		DYNAMIC_DRAW: 35048,

@@ -164,7 +165,8 @@ export function glconstants() {

 		DRAW_FRAMEBUFFER: 36009,

 		SAMPLE_ALPHA_TO_COVERAGE: 32926,

 		SRGB8: 35905,

-		SRGB8_ALPHA8: 35907

+		SRGB8_ALPHA8: 35907,

+		MAX_UNIFORM_BUFFER_BINDINGS: 35375

 	};


 	return {
