+<html lang="en">
|
|
|
+ <head>
|
|
|
+ <title>three.js - shadertoy</title>
|
|
|
+ <meta charset="utf-8">
|
|
|
+ <meta name="viewport" content="width=device-width, user-scalable=no, minimum-scale=1.0, maximum-scale=1.0">
|
|
|
+ <link type="text/css" rel="stylesheet" href="main.css">
|
|
|
+ </head>
|
|
|
+ <body>
|
|
|
+
|
|
|
+ <div id="info">
|
|
|

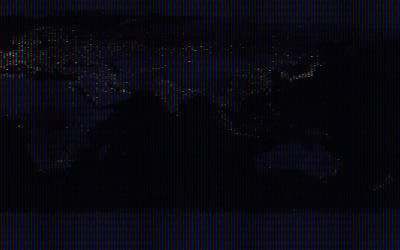

+ <a href="https://threejs.org" target="_blank" rel="noopener">three.js</a> webgpu - WGSL/TSL Node Interoperability
|
|
|
+ <br />CRT Shader adapted from <a href="https://mini.gmshaders.com/p/gm-shaders-mini-crt" target="_blank" rel="noopener"> Xor</a>.
|
|
|
+ </div>
|
|
|
+ <div id="container">
|
|
|
+ <canvas id="c"></canvas>
|
|
|
+ </div>
|
|
|
+
|
|
|
+ <script type="importmap">
|
|
|
+ {
|
|
|
+ "imports": {
|
|
|
+ "three": "../build/three.module.js",
|
|
|
+ "three/addons/": "./jsm/",
|
|
|
+ "three/nodes": "./jsm/nodes/Nodes.js"
|
|
|
+ }
|
|
|
+ }
|
|
|
+ </script>
|
|
|
+
|
|
|
+ <script type="module">
|
|
|
+
|
|
|
+ import * as THREE from 'three';
|
|
|
+ import WebGPU from 'three/addons/capabilities/WebGPU.js';
|
|
|
+ import WebGL from 'three/addons/capabilities/WebGL.js';
|
|
|
+
|
|
|
+ import WebGPURenderer from 'three/addons/renderers/webgpu/WebGPURenderer.js';
|
|
|
+ import { tslFn, attribute, varyingProperty, timerLocal, uniform, wgslFn, texture, uv, clamp, float, vec2, vec3, fract, floor, MeshBasicNodeMaterial, positionGeometry, sin } from 'three/nodes';
|
|
|
+
|
|
|
+ import { GUI } from 'three/addons/libs/lil-gui.module.min.js';
|
|
|
+
|
|
|
+ let renderer, camera, scene;
|
|
|
+ const dpr = window.devicePixelRatio;
|
|
|
+
|
|
|
+ const crtWidthUniform = uniform( 1608 );
|
|
|
+ const crtHeightUniform = uniform( 1608 );
|
|
|
+
|
|
|
+ const canvas = document.getElementById( 'c' );
|
|
|
+
|
|
|
+ function onWindowResize() {
|
|
|
+
|
|
|
+ camera.aspect = window.innerWidth / window.innerHeight;
|
|
|
+ camera.updateProjectionMatrix();
|
|
|
+ renderer.setSize( window.innerWidth, window.innerHeight );
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ function animate() {
|
|
|
+
|
|
|
+ renderer.render( scene, camera );
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ function init() {
|
|
|
+
|
|
|
+ if ( WebGPU.isAvailable() === false && WebGL.isWebGL2Available() === false ) {
|
|
|
+
|
|
|
+ document.body.appendChild( WebGPU.getErrorMessage() );
|
|
|
+
|
|
|
+ throw new Error( 'No WebGPU or WebGL2 support' );
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ const vUv = varyingProperty( 'vec2', 'vUv' );
|
|
|
+
|
|
|
+ // In WGSL, access varying properties from the varying struct
|
|
|
+ const wgslVertexShader = wgslFn( `
|
|
|
+ fn crtVertex(
|
|
|
+ position: vec3f,
|
|
|
+ uv: vec2f
|
|
|
+ ) -> vec3<f32> {
|
|
|
+ varyings.vUv = uv;
|
|
|
+ return position;
|
|
|
+ }
|
|
|
+ `, [
|
|
|
+ vUv
|
|
|
+ ] );
|
|
|
+
|
|
|
+ // Only wgsl vertex shaders take varyings arguments when defined.
|
|
|
+ // For a wgsl fragment shader, pass the varyingProperty node to the
|
|
|
+ // fragment shader's constructor to acess the varying value computed
|
|
|
+ // by the vertex shader.
|
|
|
+ const wgslFragmentShader = wgslFn( `
|
|
|
+ fn crtFragment(
|
|
|
+ vUv: vec2f,
|
|
|
+ tex: texture_2d<f32>,
|
|
|
+ texSampler: sampler,
|
|
|
+ crtWidth: f32,
|
|
|
+ crtHeight: f32,
|
|
|
+ cellOffset: f32,
|
|
|
+ cellSize: f32,
|
|
|
+ borderMask: f32,
|
|
|
+ time: f32,
|
|
|
+ speed: f32,
|
|
|
+ pulseIntensity: f32,
|
|
|
+ pulseWidth: f32,
|
|
|
+ pulseRate: f32
|
|
|
+ ) -> vec3<f32> {
|
|
|
+ // Convert uv into map of pixels
|
|
|
+ var pixel = ( vUv * 0.5 + 0.5 ) * vec2<f32>(
|
|
|
+ crtWidth,
|
|
|
+ crtHeight
|
|
|
+ );
|
|
|
+ // Coordinate for each cell in the pixel map
|
|
|
+ var coord = pixel / cellSize;
|
|
|
+ // Three color values for each cell (r, g, b)
|
|
|
+ var subcoord = coord * vec2f( 3.0, 1.0 );
|
|
|
+ var offset = vec2<f32>( 0, fract( floor( coord.x ) * cellOffset ) );
|
|
|
+
|
|
|
+ var maskCoord = floor( coord + offset ) * cellSize;
|
|
|
+
|
|
|
+ var samplePoint = maskCoord / vec2<f32>(crtWidth, crtHeight);
|
|
|
+ samplePoint.x += fract( time * speed / 20 );
|
|
|
+
|
|
|
+ var color = textureSample(
|
|
|
+ tex,
|
|
|
+ texSampler,
|
|
|
+ samplePoint
|
|
|
+ ).xyz;
|
|
|
+
|
|
|
+ // Current implementation does not give an even amount of space to each r, g, b unit of a cell
|
|
|
+ // Fix/hack this by multiplying subCoord.x by cellSize at cellSizes below 6
|
|
|
+ var ind = floor( subcoord.x ) % 3;
|
|
|
+
|
|
|
+ var maskColor = vec3<f32>(
|
|
|
+ f32( ind == 0.0 ),
|
|
|
+ f32( ind == 1.0 ),
|
|
|
+ f32( ind == 2.0 )
|
|
|
+ ) * 3.0;
|
|
|
+
|
|
|
+ var cellUV = fract( subcoord + offset ) * 2.0 - 1.0;
|
|
|
+ var border: vec2<f32> = 1.0 - cellUV * cellUV * borderMask;
|
|
|
+
|
|
|
+ maskColor *= vec3f( clamp( border.x, 0.0, 1.0 ) * clamp( border.y, 0.0, 1.0) );
|
|
|
+
|
|
|
+ color *= maskColor;
|
|
|
+
|
|
|
+ color.r *= 1.0 + pulseIntensity * sin( pixel.y / pulseWidth + time * pulseRate );
|
|
|
+ color.b *= 1.0 + pulseIntensity * sin( pixel.y / pulseWidth + time * pulseRate );
|
|
|
+ color.g *= 1.0 + pulseIntensity * sin( pixel.y / pulseWidth + time * pulseRate );
|
|
|
+
|
|
|
+ return color;
|
|
|
+ }
|
|
|
+ ` );
|
|
|
+
|
|
|
+ const textureLoader = new THREE.TextureLoader();
|
|
|
+ const planetTexture = textureLoader.load( 'textures/planets/earth_lights_2048.png' );
|
|
|
+ planetTexture.wrapS = THREE.RepeatWrapping;
|
|
|
+ planetTexture.wrapT = THREE.RepeatWrapping;
|
|
|
+
|
|
|
+ // Node Uniforms:
|
|
|
+ // Passed to WGSL Functions.
|
|
|
+ // Manipulated directly in TSL Functions.
|
|
|
+ const cellOffsetUniform = uniform( 0.5 );
|
|
|
+ const cellSizeUniform = uniform( 6 );
|
|
|
+ const borderMaskUniform = uniform( 1 );
|
|
|
+ const pulseIntensityUniform = uniform( 0.06 );
|
|
|
+ const pulseWidthUniform = uniform( 60 );
|
|
|
+ const pulseRateUniform = uniform( 20 );
|
|
|
+ const wgslShaderSpeedUniform = uniform( 1.0 );
|
|
|
+ const tslShaderSpeedUniform = uniform( 1.0 );
|
|
|
+
|
|
|
+ //
|
|
|
+
|
|
|
+ const wgslShaderMaterial = new MeshBasicNodeMaterial();
|
|
|
+
|
|
|
+ // Accessed attributes correspond to a Mesh or BufferGeometry's setAttribute() calls.
|
|
|
+ wgslShaderMaterial.positionNode = wgslVertexShader( {
|
|
|
+ position: attribute( 'position' ),
|
|
|
+ uv: attribute( 'uv' )
|
|
|
+ } );
|
|
|
+
|
|
|
+ wgslShaderMaterial.fragmentNode = wgslFragmentShader( {
|
|
|
+ vUv: vUv,
|
|
|
+ tex: texture( planetTexture ),
|
|
|
+ texSampler: texture( planetTexture ),
|
|
|
+ crtWidth: crtWidthUniform,
|
|
|
+ crtHeight: crtHeightUniform,
|
|
|
+ cellOffset: cellOffsetUniform,
|
|
|
+ cellSize: cellSizeUniform,
|
|
|
+ borderMask: borderMaskUniform,
|
|
|
+ time: timerLocal(),
|
|
|
+ speed: wgslShaderSpeedUniform,
|
|
|
+ pulseIntensity: pulseIntensityUniform,
|
|
|
+ pulseWidth: pulseWidthUniform,
|
|
|
+ pulseRate: pulseRateUniform
|
|
|
+ } );
|
|
|
+
|
|
|
+ //
|
|
|
+
|
|
|
+ const tslVertexShader = tslFn( () => {
|
|
|
+
|
|
|
+ vUv.assign( uv() );
|
|
|
+ return positionGeometry;
|
|
|
+
|
|
|
+ } );
|
|
|
+
|
|
|
+ const tslFragmentShader = tslFn( () => {
|
|
|
+
|
|
|
+ const dimensions = vec2( crtWidthUniform, crtHeightUniform );
|
|
|
+ const translatedUV = vUv.mul( 0.5 ).add( 0.5 );
|
|
|
+ const pixel = translatedUV.mul( dimensions );
|
|
|
+
|
|
|
+ const coord = pixel.div( cellSizeUniform );
|
|
|
+ const subCoord = coord.mul( vec2( 3.0, 1.0 ) );
|
|
|
+
|
|
|
+ const cellOffset = vec2(
|
|
|
+ 0.0,
|
|
|
+ fract( floor( coord.x ).mul( cellOffsetUniform ) )
|
|
|
+ );
|
|
|
+
|
|
|
+ const maskCoord = floor( coord.add( cellOffset ) ).mul( cellSizeUniform );
|
|
|
+ const samplePoint = maskCoord.div( dimensions );
|
|
|
+ const time = timerLocal().mul( tslShaderSpeedUniform );
|
|
|
+ samplePoint.x = samplePoint.x.add( fract( time.div( 20 ) ) );
|
|
|
+ samplePoint.y = samplePoint.y.sub( 1.5 );
|
|
|
+
|
|
|
+ let color = texture( planetTexture, samplePoint );
|
|
|
+
|
|
|
+ const ind = floor( subCoord.x ).mod( 3 );
|
|
|
+
|
|
|
+ let maskColor = vec3(
|
|
|
+ ind.equal( 0.0 ),
|
|
|
+ ind.equal( 1.0 ),
|
|
|
+ ind.equal( 2.0 )
|
|
|
+ ).mul( 3.0 );
|
|
|
+
|
|
|
+ const subCoordOffset = fract( subCoord.add( cellOffset ) );
|
|
|
+ let cellUV = subCoordOffset.mul( 2.0 );
|
|
|
+ cellUV = cellUV.sub( 1.0 );
|
|
|
+
|
|
|
+ const border = float( 1.0 ).sub(
|
|
|
+ cellUV.mul( cellUV ).mul( borderMaskUniform )
|
|
|
+ );
|
|
|
+
|
|
|
+ const clampX = clamp( border.x, 0.0, 1.0 );
|
|
|
+ const clampY = clamp( border.y, 0.0, 1.0 );
|
|
|
+ const borderClamp = clampX.mul( clampY );
|
|
|
+ maskColor = maskColor.mul( borderClamp );
|
|
|
+
|
|
|
+ color = color.mul( maskColor );
|
|
|
+
|
|
|
+ const pixelDampen = pixel.y.div( pulseWidthUniform );
|
|
|
+ let pulse = sin( pixelDampen.add( time.mul( pulseRateUniform ) ) );
|
|
|
+ pulse = pulse.mul( pulseIntensityUniform );
|
|
|
+ color = color.mul( float( 1.0 ).add( pulse ) );
|
|
|
+
|
|
|
+ return color;
|
|
|
+
|
|
|
+ } );
|
|
|
+
|
|
|
+ const tslShaderMaterial = new MeshBasicNodeMaterial();
|
|
|
+ tslShaderMaterial.positionNode = tslVertexShader();
|
|
|
+ tslShaderMaterial.colorNode = tslFragmentShader();
|
|
|
+
|
|
|
+ camera = new THREE.OrthographicCamera( - 1, 1, 1, - 1, 0, 1 );
|
|
|
+ scene = new THREE.Scene();
|
|
|
+
|
|
|
+ const geometry = new THREE.PlaneGeometry( 2, 1 );
|
|
|
+
|
|
|
+ const wgslQuad = new THREE.Mesh( geometry, wgslShaderMaterial );
|
|
|
+ wgslQuad.position.y += 0.5;
|
|
|
+ scene.add( wgslQuad );
|
|
|
+
|
|
|
+ const tslQuad = new THREE.Mesh( geometry, tslShaderMaterial );
|
|
|
+ tslQuad.position.y -= 0.5;
|
|
|
+ scene.add( tslQuad );
|
|
|
+
|
|
|
+ renderer = new WebGPURenderer( { antialias: true, canvas: canvas } );
|
|
|
+ renderer.setPixelRatio( dpr );
|
|
|
+ renderer.setSize( window.innerWidth, window.innerHeight );
|
|
|
+ renderer.setAnimationLoop( animate );
|
|
|
+ renderer.outputColorSpace = THREE.LinearSRGBColorSpace;
|
|
|
+ document.body.appendChild( renderer.domElement );
|
|
|
+
|
|
|
+ window.addEventListener( 'resize', onWindowResize );
|
|
|
+
|
|
|
+ const gui = new GUI();
|
|
|
+
|
|
|
+ gui.add( cellSizeUniform, 'value', 6, 50, 1 ).name( 'Cell Size' );
|
|
|
+ gui.add( cellOffsetUniform, 'value', 0, 1, 0.1 ).name( 'Cell Offset' );
|
|
|
+ gui.add( borderMaskUniform, 'value', 0, 5, 0.1 ).name( 'Border Mask' );
|
|
|
+ gui.add( pulseIntensityUniform, 'value', 0, 0.5, 0.01 ).name( 'Pulse Intensity' );
|
|
|
+ gui.add( pulseWidthUniform, 'value', 10, 100, 5 ).name( 'Pulse Width' );
|
|
|
+ gui.add( wgslShaderSpeedUniform, 'value', 1, 10 ).name( 'WGSL Shader Speed' );
|
|
|
+ gui.add( tslShaderSpeedUniform, 'value', 1, 10 ).name( 'TSL Shader Speed' );
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ init();
|
|
|
+
|
|
|
+ </script>
|
|
|
+ </body>
|
|
|
+</html>
|
