+<!DOCTYPE html>
|
|
|
+<html lang="en">
|
|
|
+ <head>
|
|
|
+ <title>three.js webgpu - compute geometry</title>
|
|
|
+ <meta charset="utf-8">
|
|
|
+ <meta name="viewport" content="width=device-width, user-scalable=no, minimum-scale=1.0, maximum-scale=1.0">
|
|
|
+ <link type="text/css" rel="stylesheet" href="main.css">
|
|
|
+ </head>
|
|
|
+ <body>
|
|
|
+
|
|
|
+ <div id="info">
|
|
|
+ <a href="https://threejs.org" target="_blank" rel="noopener">three.js webgpu</a> - compute geometry
|
|
|
+ </div>
|
|
|
+
|
|
|
+ <script type="importmap">
|
|
|
+ {
|
|
|
+ "imports": {
|
|
|
+ "three": "../build/three.module.js",
|
|
|
+ "three/addons/": "./jsm/",
|
|
|
+ "three/nodes": "./jsm/nodes/Nodes.js"
|
|
|
+ }
|
|
|
+ }
|
|
|
+ </script>
|
|
|
+
|
|
|
+ <script type="module">
|
|
|
+
|
|
|
+ import * as THREE from 'three';
|
|
|
+ import { vec3, cos, sin, mat3, storage, tslFn, instanceIndex, timerLocal } from 'three/nodes';
|
|
|
+
|
|
|
+ import { GLTFLoader } from 'three/addons/loaders/GLTFLoader.js';
|
|
|
+
|
|
|
+ import WebGPURenderer from 'three/addons/renderers/webgpu/WebGPURenderer.js';
|
|
|
+
|
|
|
+ import { OrbitControls } from 'three/addons/controls/OrbitControls.js';
|
|
|
+
|
|
|
+ import StorageBufferAttribute from 'three/addons/renderers/common/StorageBufferAttribute.js';
|
|
|
+
|
|
|
+ let camera, scene, renderer;
|
|
|
+ let computeUpdate;
|
|
|
+
|
|
|
+ init();
|
|
|
+
|
|
|
+ function init() {
|
|
|
+
|
|
|
+ camera = new THREE.PerspectiveCamera( 50, window.innerWidth / window.innerHeight, 0.1, 10 );
|
|
|
+ camera.position.set( 0, 0, 1 );
|
|
|
+
|
|
|
+ scene = new THREE.Scene();
|
|
|
+ scene.background = new THREE.Color( 0x333333 );
|
|
|
+
|
|
|

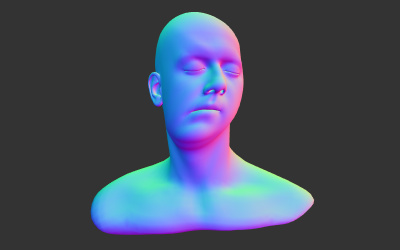

+ new GLTFLoader().load( 'models/gltf/LeePerrySmith/LeePerrySmith.glb', function ( gltf ) {
|
|
|
+
|
|
|
+ const mesh = gltf.scene.children[ 0 ];
|
|
|
+ mesh.scale.setScalar( .1 );
|
|
|
+ mesh.material = new THREE.MeshNormalMaterial();
|
|
|
+ scene.add( mesh );
|
|
|
+
|
|
|
+ //
|
|
|
+
|
|
|
+ const positionBaseAttribute = mesh.geometry.attributes.position;
|
|
|
+ const normalBaseAttribute = mesh.geometry.attributes.normal;
|
|
|
+
|
|
|
+ // replace geometry attributes for storage buffer attributes
|
|
|
+
|
|
|
+ const positionStorageBufferAttribute = new StorageBufferAttribute( positionBaseAttribute.count, 4 );
|
|
|
+ const normalStorageBufferAttribute = new StorageBufferAttribute( normalBaseAttribute.count, 4 );
|
|
|
+
|
|
|
+ mesh.geometry.setAttribute( 'position', positionStorageBufferAttribute );
|
|
|
+ mesh.geometry.setAttribute( 'normal', normalStorageBufferAttribute );
|
|
|
+
|
|
|
+ // compute shader
|
|
|
+
|
|
|
+ const computeFn = tslFn( () => {
|
|
|
+
|
|
|
+ const positionAttribute = storage( positionBaseAttribute, 'vec3', positionBaseAttribute.count );
|
|
|
+ const normalAttribute = storage( normalBaseAttribute, 'vec3', normalBaseAttribute.count );
|
|
|
+
|
|
|
+ const positionStorageAttribute = storage( positionStorageBufferAttribute, 'vec4', positionStorageBufferAttribute.count );
|
|
|
+ const normalStorageAttribute = storage( normalStorageBufferAttribute, 'vec4', normalStorageBufferAttribute.count );
|
|
|
+
|
|
|
+ const time = timerLocal( 1 );
|
|
|
+ const scale = 0.3;
|
|
|
+
|
|
|
+ //
|
|
|
+
|
|
|
+ const position = vec3( positionAttribute.element( instanceIndex ) );
|
|
|
+ const normal = vec3( normalAttribute.element( instanceIndex ) );
|
|
|
+
|
|
|
+ const theta = sin( time.add( position.y ) ).mul( scale );
|
|
|
+
|
|
|
+ const c = cos( theta );
|
|
|
+ const s = sin( theta );
|
|
|
+
|
|
|
+ const m = mat3(
|
|
|
+ c, 0, s,
|
|
|
+ 0, 1, 0,
|
|
|
+ s.negate(), 0, c
|
|
|
+ );
|
|
|
+
|
|
|
+ const transformed = position.mul( m );
|
|
|
+ const transformedNormal = normal.mul( m );
|
|
|
+
|
|
|
+ positionStorageAttribute.element( instanceIndex ).assign( transformed );
|
|
|
+ normalStorageAttribute.element( instanceIndex ).assign( transformedNormal );
|
|
|
+
|
|
|
+ } );
|
|
|
+
|
|
|
+ computeUpdate = computeFn().compute( positionBaseAttribute.count );
|
|
|
+
|
|
|
+ } );
|
|
|
+
|
|
|
+ // renderer
|
|
|
+
|
|
|
+ renderer = new WebGPURenderer( { antialias: true } );
|
|
|
+ renderer.setPixelRatio( window.devicePixelRatio );
|
|
|
+ renderer.setSize( window.innerWidth, window.innerHeight );
|
|
|
+ renderer.setAnimationLoop( animate );
|
|
|
+ document.body.appendChild( renderer.domElement );
|
|
|
+
|
|
|
+ const controls = new OrbitControls( camera, renderer.domElement );
|
|
|
+ controls.minDistance = .7;
|
|
|
+ controls.maxDistance = 2;
|
|
|
+
|
|
|
+ window.addEventListener( 'resize', onWindowResize );
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ function onWindowResize() {
|
|
|
+
|
|
|
+ camera.aspect = window.innerWidth / window.innerHeight;
|
|
|
+ camera.updateProjectionMatrix();
|
|
|
+
|
|
|
+ renderer.setSize( window.innerWidth, window.innerHeight );
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ async function animate() {
|
|
|
+
|
|
|
+ if ( computeUpdate ) await renderer.computeAsync( computeUpdate );
|
|
|
+
|
|
|
+ renderer.render( scene, camera );
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ </script>
|
|
|
+ </body>
|
|
|
+</html>
|
