@@ -1,204 +0,0 @@
|
|
|
-<!DOCTYPE html>
|
|
|
-<html lang="en">
|
|
|
- <head>
|
|
|

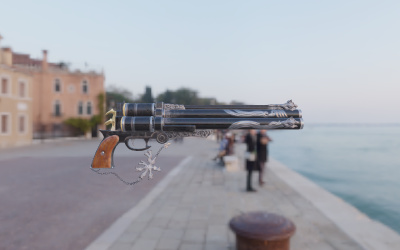

- <title>three.js webgl - materials - standard</title>
|
|
|
- <meta charset="utf-8">
|
|
|
- <meta name="viewport" content="width=device-width, user-scalable=no, minimum-scale=1.0, maximum-scale=1.0">
|
|
|
- <link type="text/css" rel="stylesheet" href="main.css">
|
|
|
- </head>
|
|
|
-
|
|
|
- <body>
|
|
|
- <div id="info">
|
|
|
- <a href="https://threejs.org" target="_blank" rel="noopener">three.js</a> - webgl physically based material<br/>
|
|
|
- <a href="http://www.polycount.com/forum/showthread.php?t=130641" target="_blank" rel="noopener">Cerberus(FFVII Gun) model</a> by Andrew Maximov.
|
|
|
- </div>
|
|
|
-
|
|
|
- <!-- Import maps polyfill -->
|
|
|
- <!-- Remove this when import maps will be widely supported -->
|
|
|
- <script async src="https://unpkg.com/[email protected]/dist/es-module-shims.js"></script>
|
|
|
-
|
|
|
- <script type="importmap">
|
|
|
- {
|
|
|
- "imports": {
|
|
|
- "three": "../build/three.module.js",
|
|
|
- "three/addons/": "./jsm/"
|
|
|
- }
|
|
|
- }
|
|
|
- </script>
|
|
|
-
|
|
|
- <script type="module">
|
|
|
-
|
|
|
- import * as THREE from 'three';
|
|
|
-
|
|
|
- import Stats from 'three/addons/libs/stats.module.js';
|
|
|
-
|
|
|
- import { GUI } from 'three/addons/libs/lil-gui.module.min.js';
|
|
|
- import { TrackballControls } from 'three/addons/controls/TrackballControls.js';
|
|
|
- import { OBJLoader } from 'three/addons/loaders/OBJLoader.js';
|
|
|
- import { RGBELoader } from 'three/addons/loaders/RGBELoader.js';
|
|
|
-
|
|
|
- const statsEnabled = true;
|
|
|
-
|
|
|
- let container, stats;
|
|
|
-
|
|
|
- let camera, scene, renderer, controls;
|
|
|
-
|
|
|
- init();
|
|
|
- animate();
|
|
|
-
|
|
|
- function init() {
|
|
|
-
|
|
|
- container = document.createElement( 'div' );
|
|
|
- document.body.appendChild( container );
|
|
|
-
|
|
|
- renderer = new THREE.WebGLRenderer( { antialias: true } );
|
|
|
- renderer.setPixelRatio( window.devicePixelRatio );
|
|
|
- renderer.setSize( window.innerWidth, window.innerHeight );
|
|
|
- container.appendChild( renderer.domElement );
|
|
|
-
|
|
|
- renderer.toneMapping = THREE.ReinhardToneMapping;
|
|
|
- renderer.toneMappingExposure = 3;
|
|
|
-
|
|
|
- //
|
|
|
-
|
|
|
- scene = new THREE.Scene();
|
|
|
-
|
|
|
- camera = new THREE.PerspectiveCamera( 50, window.innerWidth / window.innerHeight, 0.01, 1000 );
|
|
|
- camera.position.z = 2;
|
|
|
-
|
|
|
- controls = new TrackballControls( camera, renderer.domElement );
|
|
|
-
|
|
|
- //
|
|
|
-
|
|
|
- scene.add( new THREE.HemisphereLight( 0x443333, 0x222233, 4 ) );
|
|
|
-
|
|
|
- //
|
|
|
-
|
|
|
- const material = new THREE.MeshStandardMaterial();
|
|
|
-
|
|
|
- new OBJLoader()
|
|
|
- .setPath( 'models/obj/cerberus/' )
|
|
|
- .load( 'Cerberus.obj', function ( group ) {
|
|
|
-
|
|
|
- const loader = new THREE.TextureLoader()
|
|
|
- .setPath( 'models/obj/cerberus/' );
|
|
|
-
|
|
|
- material.roughness = 1; // attenuates roughnessMap
|
|
|
- material.metalness = 1; // attenuates metalnessMap
|
|
|
-
|
|
|
- const diffuseMap = loader.load( 'Cerberus_A.jpg' );
|
|
|
- diffuseMap.colorSpace = THREE.SRGBColorSpace;
|
|
|
- material.map = diffuseMap;
|
|
|
- // roughness is in G channel, metalness is in B channel
|
|
|
- material.metalnessMap = material.roughnessMap = loader.load( 'Cerberus_RM.jpg' );
|
|
|
- material.normalMap = loader.load( 'Cerberus_N.jpg' );
|
|
|
-
|
|
|
- material.map.wrapS = THREE.RepeatWrapping;
|
|
|
- material.roughnessMap.wrapS = THREE.RepeatWrapping;
|
|
|
- material.metalnessMap.wrapS = THREE.RepeatWrapping;
|
|
|
- material.normalMap.wrapS = THREE.RepeatWrapping;
|
|
|
-
|
|
|
- group.traverse( function ( child ) {
|
|
|
-
|
|
|
- if ( child.isMesh ) {
|
|
|
-
|
|
|
- child.material = material;
|
|
|
-
|
|
|
- }
|
|
|
-
|
|
|
- } );
|
|
|
-
|
|
|
- group.position.x = - 0.45;
|
|
|
- group.rotation.y = - Math.PI / 2;
|
|
|
- scene.add( group );
|
|
|
-
|
|
|
- } );
|
|
|
-
|
|
|
- const environments = {
|
|
|
-
|
|
|
- 'Venice Sunset': { filename: 'venice_sunset_1k.hdr' },
|
|
|
- 'Overpass': { filename: 'pedestrian_overpass_1k.hdr' }
|
|
|
-
|
|
|
- };
|
|
|
-
|
|
|
- function loadEnvironment( name ) {
|
|
|
-
|
|
|
- if ( environments[ name ].texture !== undefined ) {
|
|
|
-
|
|
|
- scene.background = environments[ name ].texture;
|
|
|
- scene.environment = environments[ name ].texture;
|
|
|
- return;
|
|
|
-
|
|
|
- }
|
|
|
-
|
|
|
- const filename = environments[ name ].filename;
|
|
|
- new RGBELoader()
|
|
|
- .setPath( 'textures/equirectangular/' )
|
|
|
- .load( filename, function ( hdrEquirect ) {
|
|
|
-
|
|
|
- hdrEquirect.mapping = THREE.EquirectangularReflectionMapping;
|
|
|
-
|
|
|
- scene.background = hdrEquirect;
|
|
|
- scene.environment = hdrEquirect;
|
|
|
- environments[ name ].texture = hdrEquirect;
|
|
|
-
|
|
|
- } );
|
|
|
-
|
|
|
- }
|
|
|
-
|
|
|
- const params = {
|
|
|
-
|
|
|
- environment: Object.keys( environments )[ 0 ]
|
|
|
-
|
|
|
- };
|
|
|
- loadEnvironment( params.environment );
|
|
|
-
|
|
|
- const gui = new GUI();
|
|
|
- gui.add( params, 'environment', Object.keys( environments ) ).onChange( function ( value ) {
|
|
|
-
|
|
|
- loadEnvironment( value );
|
|
|
-
|
|
|
- } );
|
|
|
- gui.open();
|
|
|
-
|
|
|
- //
|
|
|
-
|
|
|
- if ( statsEnabled ) {
|
|
|
-
|
|
|
- stats = new Stats();
|
|
|
- container.appendChild( stats.dom );
|
|
|
-
|
|
|
- }
|
|
|
-
|
|
|
- window.addEventListener( 'resize', onWindowResize );
|
|
|
-
|
|
|
- }
|
|
|
-
|
|
|
- //
|
|
|
-
|
|
|
- function onWindowResize() {
|
|
|
-
|
|
|
- renderer.setSize( window.innerWidth, window.innerHeight );
|
|
|
-
|
|
|
- camera.aspect = window.innerWidth / window.innerHeight;
|
|
|
- camera.updateProjectionMatrix();
|
|
|
-
|
|
|
- }
|
|
|
-
|
|
|
- //
|
|
|
-
|
|
|
- function animate() {
|
|
|
-
|
|
|
- requestAnimationFrame( animate );
|
|
|
-
|
|
|
- controls.update();
|
|
|
- renderer.render( scene, camera );
|
|
|
-
|
|
|
- if ( statsEnabled ) stats.update();
|
|
|
-
|
|
|
- }
|
|
|
-
|
|
|
- </script>
|
|
|
-
|
|
|
- </body>
|
|
|
-</html>
|
Mr.doob
