-.. _doc_gdnative_cpp_example:
|
|
|
-
|
|
|
-GDNative C++ example
|
|
|
-====================
|
|
|
-
|
|
|
-Introduction
|
|
|
-------------
|
|
|
-
|
|
|
-This tutorial builds on top of the information given in the
|
|
|
-:ref:`GDNative C example <doc_gdnative_c_example>`, so we highly recommend you
|
|
|
-read that first.
|
|
|
-
|
|
|
-The C++ bindings for GDNative are built on top of the NativeScript GDNative API
|
|
|
-and provide a nicer way to "extend" nodes in Godot using C++. This is equivalent
|
|
|
-to writing scripts in GDScript, but in C++ instead.
|
|
|
-
|
|
|
-You can download the full example we'll be creating in this tutorial `on
|
|
|
-GitHub <https://github.com/BastiaanOlij/gdnative_cpp_example>`__.
|
|
|
-
|
|
|
-Setting up the project
|
|
|
-----------------------
|
|
|
-
|
|
|
-There are a few prerequisites you'll need:
|
|
|
-
|
|
|
-- a Godot 3.x executable,
|
|
|
-- a C++ compiler,
|
|
|
-- SCons as a build tool,
|
|
|
-- a copy of the `godot-cpp
|
|
|
- repository <https://github.com/godotengine/godot-cpp>`__.
|
|
|
-
|
|
|
-See also :ref:`Compiling <toc-devel-compiling>` as the build tools are identical
|
|
|
-to the ones you need to compile Godot from source.
|
|
|
-
|
|
|
-You can download these repositories from GitHub or let Git do the work for you.
|
|
|
-Note that these repositories now have different branches for different versions
|
|
|
-of Godot. GDNative modules written for an earlier version of Godot will work in
|
|
|
-newer versions (with the exception of one breaking change in ARVR interfaces
|
|
|
-between 3.0 and 3.1) but not vice versa, so make sure you download the correct
|
|
|
-branch. Also, note that the version of Godot you use to generate the ``api.json``
|
|
|
-with becomes your minimum version.
|
|
|
-
|
|
|
-.. note::
|
|
|
-
|
|
|
- `GDExtension <https://godotengine.org/article/introducing-gd-extensions>`__
|
|
|
- has been merged in the ``master`` branch of godot-cpp,
|
|
|
- but it is only compatible with the upcoming Godot 4.0.
|
|
|
- Therefore, you need to use the ``3.x`` branch of godot-cpp to use GDNative
|
|
|
- and follow this example.
|
|
|
-
|
|
|
- This tutorial covers only GDNative in Godot 3.x, *not* GDExtension in Godot 4.0.
|
|
|
-
|
|
|
-If you are versioning your project using Git, it is a good idea to add them as
|
|
|
-Git submodules:
|
|
|
-
|
|
|
-.. code-block:: none
|
|
|
-
|
|
|
- mkdir gdnative_cpp_example
|
|
|
- cd gdnative_cpp_example
|
|
|
- git init
|
|
|
- git submodule add -b 3.x https://github.com/godotengine/godot-cpp
|
|
|
- cd godot-cpp
|
|
|
- git submodule update --init
|
|
|
-
|
|
|
-If you decide to just download the repositories or clone them into your project
|
|
|
-folder, make sure to keep the folder layout identical to the one described here,
|
|
|
-as much of the code we'll be showcasing here assumes the project follows this
|
|
|
-layout.
|
|
|
-
|
|
|
-Do make sure you clone recursive to pull in both repositories:
|
|
|
-
|
|
|
-.. code-block:: none
|
|
|
-
|
|
|
- mkdir gdnative_cpp_example
|
|
|
- cd gdnative_cpp_example
|
|
|
- git clone --recursive -b 3.x https://github.com/godotengine/godot-cpp
|
|
|
-
|
|
|
-.. note::
|
|
|
-
|
|
|
- ``godot-cpp`` now includes ``godot-headers`` as a nested submodule, if you've
|
|
|
- manually downloaded them please make sure to place ``godot-headers`` inside
|
|
|
- of the ``godot-cpp`` folder.
|
|
|
-
|
|
|
- You don't have to do it this way, but we've found it easiest to manage. If you
|
|
|
- decide to download the repositories or clone them into your folder,
|
|
|
- make sure to keep the folder layout the same as we've setup here. Much of
|
|
|
- the code we'll be showcasing here assumes the project has this layout.
|
|
|
-
|
|
|
-If you cloned the example from the link specified in the introduction, the
|
|
|
-submodules are not automatically initialized. You will need to execute the
|
|
|
-following commands:
|
|
|
-
|
|
|
-.. code-block:: none
|
|
|
-
|
|
|
- cd gdnative_cpp_example
|
|
|
- git submodule update --init --recursive
|
|
|
-
|
|
|
-This will clone these two repositories into your project folder.
|
|
|
-
|
|
|
-Building the C++ bindings
|
|
|
--------------------------
|
|
|
-
|
|
|
-Now that we've downloaded our prerequisites, it is time to build the C++
|
|
|
-bindings.
|
|
|
-
|
|
|
-The repository contains a copy of the metadata for the current Godot release,
|
|
|
-but if you need to build these bindings for a newer version of Godot, simply
|
|
|
-call the Godot executable:
|
|
|
-
|
|
|
-.. code-block:: none
|
|
|
-
|
|
|
- godot --gdnative-generate-json-api api.json
|
|
|
-
|
|
|
-Place the resulting ``api.json`` file in the project folder and add
|
|
|
-``use_custom_api_file=yes custom_api_file=../api.json`` to the scons command
|
|
|
-below.
|
|
|
-
|
|
|
-To generate and compile the bindings, use this command (replacing ``<platform>``
|
|
|
-with ``windows``, ``linux`` or ``macos`` depending on your OS):
|
|
|
-
|
|
|
-To speed up compilation, add `-jN` at the end of the SCons command line where `N`
|
|
|
-is the number of CPU threads you have on your system. The example below uses 4 threads.
|
|
|
-
|
|
|
-.. code-block:: none
|
|
|
-
|
|
|
- cd godot-cpp
|
|
|
- scons platform=<platform> generate_bindings=yes -j4
|
|
|
- cd ..
|
|
|
-
|
|
|
-This step will take a while. When it is completed, you should have static
|
|
|
-libraries that can be compiled into your project stored in ``godot-cpp/bin/``.
|
|
|
-
|
|
|
-.. note::
|
|
|
-
|
|
|
- You may need to add ``bits=64`` to the command on Windows or Linux.
|
|
|
-
|
|
|
-Creating a simple plugin
|
|
|
-------------------------
|
|
|
-
|
|
|
-Now it's time to build an actual plugin. We'll start by creating an empty Godot
|
|
|
-project in which we'll place a few files.
|
|
|
-
|
|
|
-Open Godot and create a new project. For this example, we will place it in a
|
|
|
-folder called ``demo`` inside our GDNative module's folder structure.
|
|
|
-
|
|
|

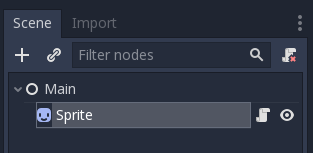

-In our demo project, we'll create a scene containing a Node called "Main" and
|
|
|
-we'll save it as ``main.tscn``. We'll come back to that later.
|
|
|
-
|
|
|
-Back in the top-level GDNative module folder, we're also going to create a
|
|
|
-subfolder called ``src`` in which we'll place our source files.
|
|
|
-
|
|
|
-You should now have ``demo``, ``godot-cpp``, and ``src``
|
|
|
-directories in your GDNative module.
|
|
|
-
|
|
|
-In the ``src`` folder, we'll start with creating our header file for the
|
|
|
-GDNative node we'll be creating. We will name it ``gdexample.h``:
|
|
|
-
|
|
|
-.. code-block:: C++
|
|
|
-
|
|
|
- #ifndef GDEXAMPLE_H
|
|
|
- #define GDEXAMPLE_H
|
|
|
-
|
|
|
- #include <Godot.hpp>
|
|
|
- #include <Sprite2D.hpp>
|
|
|
-
|
|
|
- namespace godot {
|
|
|
-
|
|
|
- class GDExample : public Sprite2D {
|
|
|
- GODOT_CLASS(GDExample, Sprite2D)
|
|
|
-
|
|
|
- private:
|
|
|
- float time_passed;
|
|
|
-
|
|
|
- public:
|
|
|
- static void _register_methods();
|
|
|
-
|
|
|
- GDExample();
|
|
|
- ~GDExample();
|
|
|
-
|
|
|
- void _init(); // our initializer called by Godot
|
|
|
-
|
|
|
- void _process(float delta);
|
|
|
- };
|
|
|
-
|
|
|
- }
|
|
|
-
|
|
|
- #endif
|
|
|
-
|
|
|
-There are a few things of note to the above. We're including ``Godot.hpp`` which
|
|
|
-contains all our basic definitions. After that, we include ``Sprite2D.hpp`` which
|
|
|
-contains bindings to the Sprite2D class. We'll be extending this class in our
|
|
|
-module.
|
|
|
-
|
|
|
-We're using the namespace ``godot``, since everything in GDNative is defined
|
|
|
-within this namespace.
|
|
|
-
|
|
|
-Then we have our class definition, which inherits from our Sprite2D through a
|
|
|
-container class. We'll see a few side effects of this later on. The
|
|
|
-``GODOT_CLASS`` macro sets up a few internal things for us.
|
|
|
-
|
|
|
-After that, we declare a single member variable called ``time_passed``.
|
|
|
-
|
|
|
-In the next block we're defining our methods, we obviously have our constructor
|
|
|
-and destructor defined, but there are two other functions that will likely look
|
|
|
-familiar to some, and one new method.
|
|
|
-
|
|
|
-The first is ``_register_methods``, which is a static function that Godot will
|
|
|
-call to find out which methods can be called on our NativeScript and which
|
|
|
-properties it exposes. The second is our ``_process`` function, which will work
|
|
|
-exactly the same as the ``_process`` function you're used to in GDScript. The
|
|
|
-third is our ``_init`` function which is called after Godot has properly set up
|
|
|
-our object.
|
|
|
-
|
|
|
-.. warning::
|
|
|
-
|
|
|
- The ``_init`` function has to exist even if you don't place any code in it.
|
|
|
- Otherwise, the class won't be instantiable.
|
|
|
-
|
|
|
-Let's implement our functions by creating our ``gdexample.cpp`` file:
|
|
|
-
|
|
|
-.. code-block:: C++
|
|
|
-
|
|
|
- #include "gdexample.h"
|
|
|
-
|
|
|
- using namespace godot;
|
|
|
-
|
|
|
- void GDExample::_register_methods() {
|
|
|
- register_method("_process", &GDExample::_process);
|
|
|
- }
|
|
|
-
|
|
|
- GDExample::GDExample() {
|
|
|
- }
|
|
|
-
|
|
|
- GDExample::~GDExample() {
|
|
|
- // add your cleanup here
|
|
|
- }
|
|
|
-
|
|
|
- void GDExample::_init() {
|
|
|
- // initialize any variables here
|
|
|
- time_passed = 0.0;
|
|
|
- }
|
|
|
-
|
|
|
- void GDExample::_process(float delta) {
|
|
|
- time_passed += delta;
|
|
|
-
|
|
|
- Vector2 new_position = Vector2(10.0 + (10.0 * sin(time_passed * 2.0)), 10.0 + (10.0 * cos(time_passed * 1.5)));
|
|
|
-
|
|
|
- set_position(new_position);
|
|
|
- }
|
|
|
-
|
|
|
-This one should be straightforward. We're implementing each method of our class
|
|
|
-that we defined in our header file. Note that the ``register_method`` call
|
|
|
-**must** expose the ``_process`` method, otherwise Godot will not be able to use
|
|
|
-it. However, we do not have to tell Godot about our constructor, destructor and
|
|
|
-``_init`` functions.
|
|
|
-
|
|
|
-The other method of note is our ``_process`` function, which keeps track
|
|
|
-of how much time has passed and calculates a new position for our sprite using a
|
|
|
-sine and cosine function. What stands out is calling
|
|
|
-``owner->set_position`` to call one of the built-in methods of our Sprite2D. This
|
|
|
-is because our class is a container class; ``owner`` points to the actual Sprite2D
|
|
|
-node our script relates to.
|
|
|
-
|
|
|
-There is one more C++ file we need; we'll name it ``gdlibrary.cpp``. Our
|
|
|
-GDNative plugin can contain multiple NativeScripts, each with their own header
|
|
|
-and source file like we've implemented ``GDExample`` up above. What we need now
|
|
|
-is a small bit of code that tells Godot about all the NativeScripts in our
|
|
|
-GDNative plugin.
|
|
|
-
|
|
|
-.. code-block:: C++
|
|
|
-
|
|
|
- #include "gdexample.h"
|
|
|
-
|
|
|
- extern "C" void GDN_EXPORT godot_gdnative_init(godot_gdnative_init_options *o) {
|
|
|
- godot::Godot::gdnative_init(o);
|
|
|
- }
|
|
|
-
|
|
|
- extern "C" void GDN_EXPORT godot_gdnative_terminate(godot_gdnative_terminate_options *o) {
|
|
|
- godot::Godot::gdnative_terminate(o);
|
|
|
- }
|
|
|
-
|
|
|
- extern "C" void GDN_EXPORT godot_nativescript_init(void *handle) {
|
|
|
- godot::Godot::nativescript_init(handle);
|
|
|
-
|
|
|
- godot::register_class<godot::GDExample>();
|
|
|
- }
|
|
|
-
|
|
|
-Note that we are not using the ``godot`` namespace here, since the three
|
|
|
-functions implemented here need to be defined without a namespace.
|
|
|
-
|
|
|
-The ``godot_gdnative_init`` and ``godot_gdnative_terminate`` functions get
|
|
|
-called respectively when Godot loads our plugin and when it unloads it. All
|
|
|
-we're doing here is parse through the functions in our bindings module to
|
|
|
-initialize them, but you might have to set up more things depending on your
|
|
|
-needs.
|
|
|
-
|
|
|
-The important function is the third function called ``godot_nativescript_init``.
|
|
|
-We first call a function in our bindings library that does its usual stuff.
|
|
|
-After that, we call the function ``register_class`` for each of our classes in
|
|
|
-our library.
|
|
|
-
|
|
|
-Compiling the plugin
|
|
|
---------------------
|
|
|
-
|
|
|
-We cannot easily write by hand a ``SConstruct`` file that SCons would use for
|
|
|
-building. For the purpose of this example, just use
|
|
|
-:download:`this hardcoded SConstruct file <files/cpp_example/SConstruct>` we've
|
|
|
-prepared. We'll cover a more customizable, detailed example on how to use these
|
|
|
-build files in a subsequent tutorial.
|
|
|
-
|
|
|
-.. note::
|
|
|
-
|
|
|
- This ``SConstruct`` file was written to be used with the latest ``godot-cpp``
|
|
|
- master, you may need to make small changes using it with older versions or
|
|
|
- refer to the ``SConstruct`` file in the Godot 3.0 documentation.
|
|
|
-
|
|
|
-Once you've downloaded the ``SConstruct`` file, place it in your GDNative module
|
|
|
-folder besides ``godot-cpp``, ``src`` and ``demo``, then run:
|
|
|
-
|
|
|
-.. code-block:: none
|
|
|
-
|
|
|
- scons platform=<platform>
|
|
|
-
|
|
|
-You should now be able to find the module in ``demo/bin/<platform>``.
|
|
|
-
|
|
|
-.. note::
|
|
|
-
|
|
|
- Here, we've compiled both godot-cpp and our gdexample library as debug
|
|
|
- builds. For optimized builds, you should compile them using the
|
|
|
- ``target=release`` switch.
|
|
|
-
|
|
|
-Using the GDNative module
|
|
|
--------------------------
|
|
|
-
|
|
|
-Before we jump back into Godot, we need to create two more files in
|
|
|
-``demo/bin/``. Both can be created using the Godot editor, but it may be faster
|
|
|
-to create them directly.
|
|
|
-
|
|
|

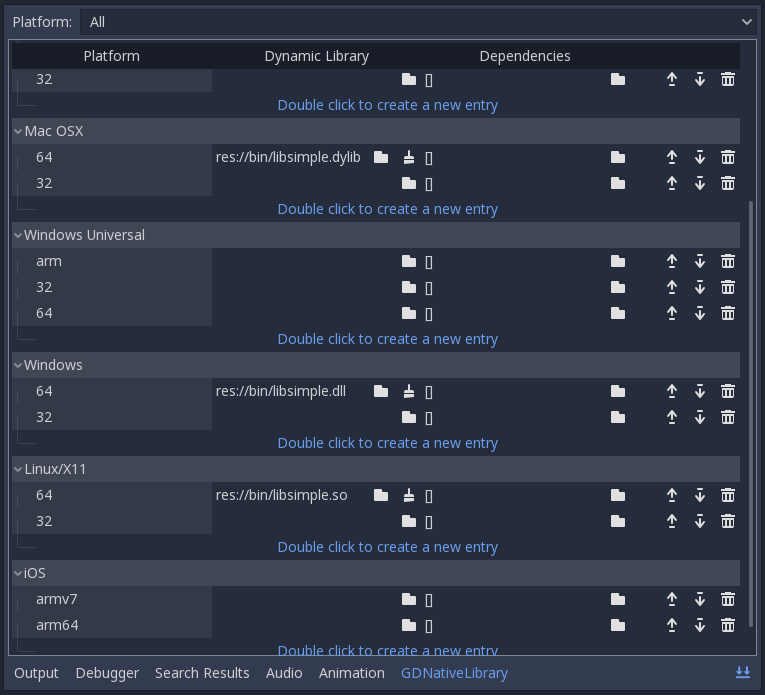

-The first one is a file that lets Godot know what dynamic libraries should be
|
|
|
-loaded for each platform and is called ``gdexample.gdnlib``.
|
|
|
-
|
|
|
-.. code-block:: none
|
|
|
-
|
|
|
- [general]
|
|
|
-
|
|
|
- singleton=false
|
|
|
- load_once=true
|
|
|
- symbol_prefix="godot_"
|
|
|
- reloadable=false
|
|
|
-
|
|
|
- [entry]
|
|
|
-
|
|
|
- Linux.64="res://bin/linux/libgdexample.so"
|
|
|
- Windows.64="res://bin/win64/libgdexample.dll"
|
|
|
- OSX.64="res://bin/osx/libgdexample.dylib"
|
|
|
-
|
|
|
- [dependencies]
|
|
|
-
|
|
|
- Linux.64=[]
|
|
|
- Windows.64=[]
|
|
|
- OSX.64=[]
|
|
|
-
|
|
|
-This file contains a ``general`` section that controls how the module is loaded.
|
|
|
-It also contains a prefix section which should be left on ``godot_`` for now. If
|
|
|
-you change this, you'll need to rename various functions that are used as entry
|
|
|
-points. This was added for the iPhone platform because it doesn't allow dynamic
|
|
|
-libraries to be deployed, yet GDNative modules are linked statically.
|
|
|
-
|
|
|
-The ``entry`` section is the important bit: it tells Godot the location of the
|
|
|
-dynamic library in the project's filesystem for each supported platform. It will
|
|
|
-also result in *just* that file being exported when you export the project,
|
|
|
-which means the data pack won't contain libraries that are incompatible with the
|
|
|
-target platform.
|
|
|
-
|
|
|
-Finally, the ``dependencies`` section allows you to name additional dynamic
|
|
|
-libraries that should be included as well. This is important when your GDNative
|
|
|
-plugin implements someone else's library and requires you to supply a
|
|
|
-third-party dynamic library with your project.
|
|
|
-
|
|
|
-If you double click on the ``gdexample.gdnlib`` file within Godot, you'll see
|
|
|
-there are far more options to set:
|
|
|
-
|
|
|
-.. image:: img/gdnative_library.png
|
|
|
-
|
|
|
-The second file we need to create is a file used by each NativeScript we've
|
|
|
-added to our plugin. We'll name it ``gdexample.gdns`` for our gdexample
|
|
|
-NativeScript.
|
|
|
-
|
|
|
-.. code-block:: none
|
|
|
-
|
|
|
- [gd_resource type="NativeScript" load_steps=2 format=2]
|
|
|
-
|
|
|
- [ext_resource path="res://bin/gdexample.gdnlib" type="GDNativeLibrary" id=1]
|
|
|
-
|
|
|
- [resource]
|
|
|
-
|
|
|
- resource_name = "gdexample"
|
|
|
- class_name = "GDExample"
|
|
|
- library = ExtResource( 1 )
|
|
|
-
|
|
|

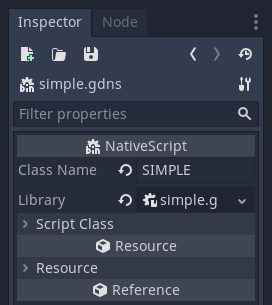

-This is a standard Godot resource; you could just create it directly in your
|
|
|
-scene, but saving it to a file makes it much easier to reuse it in other places.
|
|
|
-This resource points to our gdnlib file, so that Godot can know which dynamic
|
|
|
-library contains our NativeScript. It also defines the ``class_name`` which
|
|
|
-identifies the NativeScript in our plugin we want to use.
|
|
|
-
|
|
|
-Time to jump back into Godot. We load up the main scene we created way back in
|
|
|
-the beginning and now add a Sprite2D to our scene:
|
|
|
-
|
|
|
-.. image:: img/gdnative_cpp_nodes.png
|
|
|
-
|
|
|
-We're going to assign the Godot logo to this sprite as our texture, disable the
|
|
|
-``centered`` property and drag our ``gdexample.gdns`` file onto the ``script``
|
|
|
-property of the sprite:
|
|
|
-
|
|
|
-.. image:: img/gdnative_cpp_sprite.png
|
|
|
-
|
|
|
-We're finally ready to run the project:
|
|
|
-
|
|
|
-.. image:: img/gdnative_cpp_animated.gif
|
|
|
-
|
|
|
-Adding properties
|
|
|
------------------
|
|
|
-
|
|
|
-GDScript allows you to add properties to your script using the ``export``
|
|
|
-keyword. In GDNative you have to register the properties and there are two ways
|
|
|
-of doing this. You can either bind directly to a member or use a setter and
|
|
|
-getter function.
|
|
|
-
|
|
|
-.. note::
|
|
|
-
|
|
|
- There is a third option, just like in GDScript you can directly implement the
|
|
|
- ``_get_property_list``, ``_get`` and ``_set`` methods of an object but that
|
|
|
- goes far beyond the scope of this tutorial.
|
|
|
-
|
|
|
-We'll examine both starting with the direct bind. Lets add a property that
|
|
|
-allows us to control the amplitude of our wave.
|
|
|
-
|
|
|
-In our ``gdexample.h`` file we simply need to add a member variable like so:
|
|
|
-
|
|
|
-.. code-block:: C++
|
|
|
-
|
|
|
- ...
|
|
|
- private:
|
|
|
- float time_passed;
|
|
|
- float amplitude;
|
|
|
- ...
|
|
|
-
|
|
|
-In our ``gdexample.cpp`` file we need to make a number of changes, we will only
|
|
|
-show the methods we end up changing, don't remove the lines we're omitting:
|
|
|
-
|
|
|
-.. code-block:: C++
|
|
|
-
|
|
|
- void GDExample::_register_methods() {
|
|
|
- register_method("_process", &GDExample::_process);
|
|
|
- register_property<GDExample, float>("amplitude", &GDExample::amplitude, 10.0);
|
|
|
- }
|
|
|
-
|
|
|
- void GDExample::_init() {
|
|
|
- // initialize any variables here
|
|
|
- time_passed = 0.0;
|
|
|
- amplitude = 10.0;
|
|
|
- }
|
|
|
-
|
|
|
- void GDExample::_process(float delta) {
|
|
|
- time_passed += delta;
|
|
|
-
|
|
|
- Vector2 new_position = Vector2(
|
|
|
- amplitude + (amplitude * sin(time_passed * 2.0)),
|
|
|
- amplitude + (amplitude * cos(time_passed * 1.5))
|
|
|
- );
|
|
|
-
|
|
|
- set_position(new_position);
|
|
|
- }
|
|
|
-
|
|
|
-Once you compile the module with these changes in place, you will see that a
|
|
|
-property has been added to our interface. You can now change this property and
|
|
|
-when you run your project, you will see that our Godot icon travels along a
|
|
|
-larger figure.
|
|
|
-
|
|
|
-.. note::
|
|
|
-
|
|
|
- The ``reloadable`` property in the ``gdexample.gdnlib`` file must be set to
|
|
|
- ``true`` for the Godot editor to automatically pick up the newly added
|
|
|
- property.
|
|
|
-
|
|
|
- However, this setting should be used with care, especially when tool classes
|
|
|
- are used, as the editor might hold objects then that have script instances
|
|
|
- attached to them that are managed by a GDNative library.
|
|
|
-
|
|
|
-Let's do the same but for the speed of our animation and use a setter and getter
|
|
|
-function. Our ``gdexample.h`` header file again only needs a few more lines of
|
|
|
-code:
|
|
|
-
|
|
|
-.. code-block:: C++
|
|
|
-
|
|
|
- ...
|
|
|
- float amplitude;
|
|
|
- float speed;
|
|
|
- ...
|
|
|
- void _process(float delta);
|
|
|
- void set_speed(float p_speed);
|
|
|
- float get_speed();
|
|
|
- ...
|
|
|
-
|
|
|
-This requires a few more changes to our ``gdexample.cpp`` file, again we're only
|
|
|
-showing the methods that have changed so don't remove anything we're omitting:
|
|
|
-
|
|
|
-.. code-block:: C++
|
|
|
-
|
|
|
- void GDExample::_register_methods() {
|
|
|
- register_method("_process", &GDExample::_process);
|
|
|
- register_property<GDExample, float>("amplitude", &GDExample::amplitude, 10.0);
|
|
|
- register_property<GDExample, float>("speed", &GDExample::set_speed, &GDExample::get_speed, 1.0);
|
|
|
- }
|
|
|
-
|
|
|
- void GDExample::_init() {
|
|
|
- // initialize any variables here
|
|
|
- time_passed = 0.0;
|
|
|
- amplitude = 10.0;
|
|
|
- speed = 1.0;
|
|
|
- }
|
|
|
-
|
|
|
- void GDExample::_process(float delta) {
|
|
|
- time_passed += speed * delta;
|
|
|
-
|
|
|
- Vector2 new_position = Vector2(
|
|
|
- amplitude + (amplitude * sin(time_passed * 2.0)),
|
|
|
- amplitude + (amplitude * cos(time_passed * 1.5))
|
|
|
- );
|
|
|
-
|
|
|
- set_position(new_position);
|
|
|
- }
|
|
|
-
|
|
|
- void GDExample::set_speed(float p_speed) {
|
|
|
- speed = p_speed;
|
|
|
- }
|
|
|
-
|
|
|
- float GDExample::get_speed() {
|
|
|
- return speed;
|
|
|
- }
|
|
|
-
|
|
|
-Now when the project is compiled, we'll see another property called speed.
|
|
|
-Changing its value will make the animation go faster or slower.
|
|
|
-
|
|
|
-For this example, there is no obvious advantage of using a setter and getter.
|
|
|
-A good reason for a setter would be if you wanted to react on the variable being changed.
|
|
|
-If you don't need to do something like that, binding the variable is enough.
|
|
|
-
|
|
|
-Getters and setters become far more useful in more complex scenarios where you
|
|
|
-need to make additional choices based on the state of your object.
|
|
|
-
|
|
|
-.. note::
|
|
|
-
|
|
|
- For simplicity, we've left out the optional parameters in the
|
|
|
- register_property<class, type> method call. These parameters are
|
|
|
- ``rpc_mode``, ``usage``, ``hint`` and ``hint_string``. These can be used to
|
|
|
- further configure how properties are displayed and set on the Godot side.
|
|
|
-
|
|
|
- Modern C++ compilers are able to infer the class and variable type and allow
|
|
|
- you to omit the ``<GDExample, float>`` part of our ``register_property``
|
|
|
- method. We've had mixed experiences with this however.
|
|
|
-
|
|
|
-Signals
|
|
|
--------
|
|
|
-
|
|
|
-Last but not least, signals fully work in GDNative as well. Having your module
|
|
|
-react to a signal given out by another object requires you to call ``connect``
|
|
|
-on that object. We can't think of a good example for our wobbling Godot icon, we
|
|
|
-would need to showcase a far more complete example.
|
|
|
-
|
|
|
-This is the required syntax:
|
|
|
-
|
|
|
-.. code-block:: C++
|
|
|
-
|
|
|
- some_other_node->connect("the_signal", this, "my_method");
|
|
|
-
|
|
|
-Note that you can only call ``my_method`` if you've previously registered it in
|
|
|
-your ``_register_methods`` method.
|
|
|
-
|
|
|
-Having your object sending out signals is more common. For our wobbling
|
|
|
-Godot icon, we'll do something silly just to show how it works. We're going to
|
|
|
-emit a signal every time a second has passed and pass the new location along.
|
|
|
-
|
|
|
-In our ``gdexample.h`` header file, we need to define a new member ``time_emit``:
|
|
|
-
|
|
|
-.. code-block:: C++
|
|
|
-
|
|
|
- ...
|
|
|
- float time_passed;
|
|
|
- float time_emit;
|
|
|
- float amplitude;
|
|
|
- ...
|
|
|
-
|
|
|
-This time, the changes in ``gdexample.cpp`` are more elaborate. First,
|
|
|
-you'll need to set ``time_emit = 0.0;`` in either our ``_init`` method or in our
|
|
|
-constructor. We'll look at the other 2 needed changes one by one.
|
|
|
-
|
|
|
-In our ``_register_methods`` method, we need to declare our signal. This is done
|
|
|
-as follows:
|
|
|
-
|
|
|
-.. code-block:: C++
|
|
|
-
|
|
|
- void GDExample::_register_methods() {
|
|
|
- register_method("_process", &GDExample::_process);
|
|
|
- register_property<GDExample, float>("amplitude", &GDExample::amplitude, 10.0);
|
|
|
- register_property<GDExample, float>("speed", &GDExample::set_speed, &GDExample::get_speed, 1.0);
|
|
|
-
|
|
|
- register_signal<GDExample>((char *)"position_changed", "node", GODOT_VARIANT_TYPE_OBJECT, "new_pos", GODOT_VARIANT_TYPE_VECTOR2);
|
|
|
- }
|
|
|
-
|
|
|
-Here, our ``register_signal`` method can be a single call first taking the
|
|
|
-signals name, then having pairs of values specifying the parameter name and
|
|
|
-type of each parameter we'll send along with this signal.
|
|
|
-
|
|
|
-Next, we'll need to change our ``_process`` method:
|
|
|
-
|
|
|
-.. code-block:: C++
|
|
|
-
|
|
|
- void GDExample::_process(float delta) {
|
|
|
- time_passed += speed * delta;
|
|
|
-
|
|
|
- Vector2 new_position = Vector2(
|
|
|
- amplitude + (amplitude * sin(time_passed * 2.0)),
|
|
|
- amplitude + (amplitude * cos(time_passed * 1.5))
|
|
|
- );
|
|
|
-
|
|
|
- set_position(new_position);
|
|
|
-
|
|
|
- time_emit += delta;
|
|
|
- if (time_emit > 1.0) {
|
|
|
- emit_signal("position_changed", this, new_position);
|
|
|
-
|
|
|
- time_emit = 0.0;
|
|
|
- }
|
|
|
- }
|
|
|
-
|
|
|
-After a second has passed, we emit our signal and reset our counter. We can add
|
|
|
-our parameter values directly to ``emit_signal``.
|
|
|
-
|
|
|
-Once the GDNative library is compiled, we can go into Godot and select our sprite
|
|
|
-node. In the **Node** dock, we can find our new signal and link it up by pressing
|
|
|
-the **Connect** button or double-clicking the signal. We've added a script on
|
|
|
-our main node and implemented our signal like this:
|
|
|
-
|
|
|
-.. code-block:: gdscript
|
|
|
-
|
|
|
- extends Node
|
|
|
-
|
|
|
- func _on_Sprite2D_position_changed(node, new_pos):
|
|
|
- print("The position of " + node.name + " is now " + str(new_pos))
|
|
|
-
|
|
|
-Every second, we output our position to the console.
|
|
|
-
|
|
|
-Next steps
|
|
|
-----------
|
|
|
-
|
|
|
-We hope the above example showed you the basics. You can
|
|
|
-build upon this example to create full-fledged scripts to control nodes in Godot
|
|
|
-using C++.
|
|
|
-
|
|
|
-To edit and recompile the plugin while the Godot editor
|
|
|
-remains open, re-run the project after the library has finished building.
|
Max Hilbrunner
