Merging latest dev and resolving conflic inside README.md

Signed-off-by: Gene Walters <[email protected]>

.github/dco.yml

@@ -0,0 +1,3 @@
+allowRemediationCommits:
+  individual: true
+  thirdParty: true

Documentation/GamplayConfiguration.md

@@ -37,6 +37,26 @@ Gem Spawn Points should be created wherever you want a gem to appear in the leve
 -   **Tag** - Here you will enter the tags that correspond with the gems you want to spawn in this location. Entry [0] should be the Gem Spawn tag (set above in the Gem Spawn Tables Per Round component). Additional entries correspond with the gem(s) type you want to spawn in this location. You can add more than one gem type here. When this happens, the Gem Weight will influence which gem spawns each time. e.g. If you add yellow and green gems and give each a weight of 1, there will be an even chance of either to spawn. If one is set to greater than 1, that gem is more likely to spawn.
 -   **Script Canvas & Mesh & Material components** - By default, gem spawn points have no visual indicator in the editor as gems only appear in those positions when the game is running. To allow you to visualize gem spawn points in the editor we add the mesh component and assign the gem model and a material that matches the gem that will appear in game. Then, when the game starts, we hide the placeholder gem models using the script canvas component

+## Tunable Registry Settings
+
+The file `Registry\multiplayersample.setreg` contains a number of tunable settings:
+
+```
+	"MultiplayerSample": {
+		"Settings": {
+			"WinningCoinCount": 400,              # Condition to win the game early
+			"EnergyBall": {                       # Controls the impact of the energy balls
+				"KnockbackDistanceMeters": 2.0,
+				"Speed": 15.0,
+				"ArmorDamage": 10
+			},
+			"EnergyCannon": {                     # Controls for energy cannons
+				"FiringPeriodMilliseconds": 2000
+			}
+```
+
+> Some of the code still references `coins` as an early build used coin pickups rather than gems.
+
 ## **Setting Up Teleporters**

 Teleporters are another new feature introduced in the MPS. These can be setup to teleport players anywhere in the level when they pass through the teleport volume.

Documentation/PackedAssetBuilds.md

@@ -0,0 +1,123 @@
+# Packaged MultiplayerSample Builds
+To make relocatable client and server builds for the MultiplayerSample, we recommend making packaged builds. These package builds will contain the Game or Server Launcher and the bundled assets needed to run the launcher outside of the developer environment.
+
+You can make both release packaged builds or profile packaged builds. For more information about creating release builds, see the O3DE documentation on [Creating a Project Game Release Layout for Windows](https://www.o3de.org/docs/user-guide/packaging/windows-release-builds/).
+
+The guide below covers how to make profile packaged builds which are very useful for early sharing and play testing.
+
+## Windows Profile PAK Setup
+
+### Install WWise

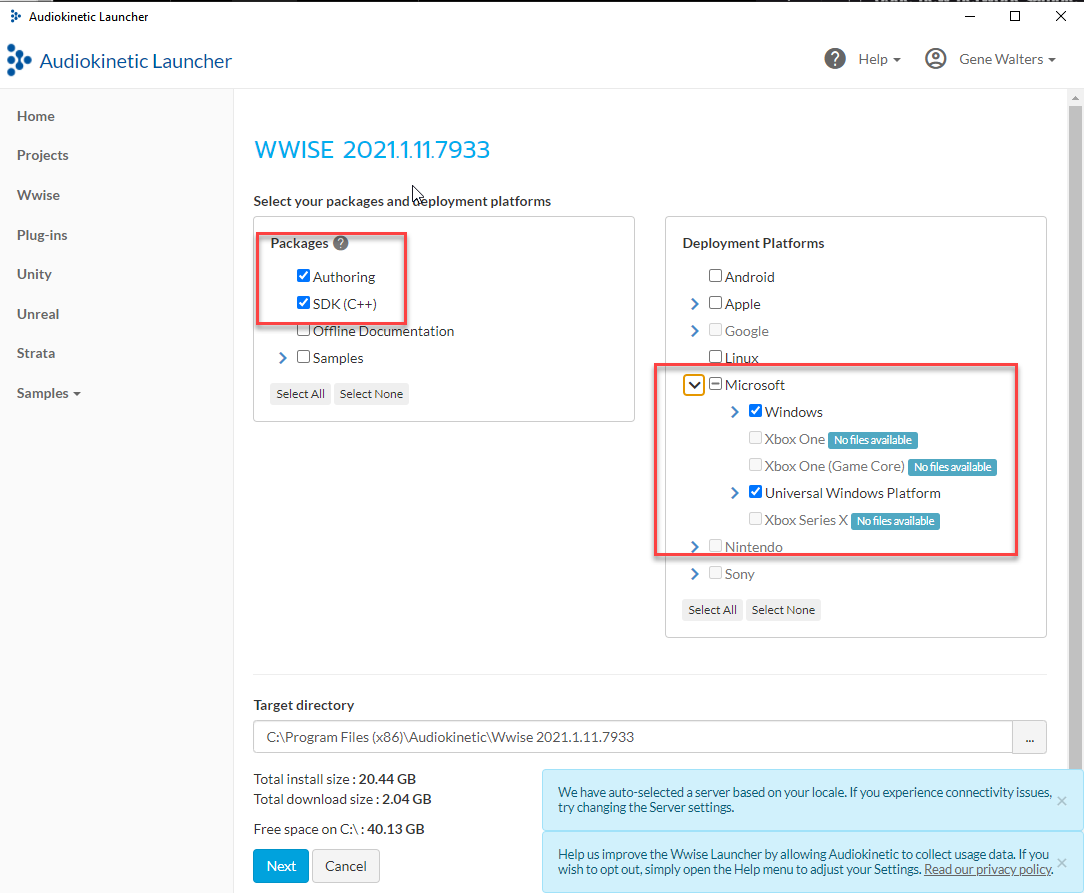

+Go to https://www.audiokinetic.com/download/, create a login, log in, and download the installer. WWise is needed to process and package audio assets in the project.
+
+![WWise installer options](Media/wwise_installer_options.png)
+
+Inside the installer select the version to use.  Install version **2021.1.11.7933**, select both Authoring and SDK, Microsoft platform.
+
+![WWise version selection](Media/wwise_installer_version_selection.png)
+
+> REBOOT (or logout / login). Otherwise, the environment settings won't get picked up for any builds in Visual Studio. They will only apply to command-line builds, and only for any command-line windows that have been opened after the installer finishes.
+
+### Build profile build and process assets
+
+Build and run MPS as per the [README.md](../README.md) and ensure all assets are built.
+
+### Test the profile build
+
+* Open the game in editor
+    * load `NewStarBase` level
+    * Verify that game can launch and connect to local server from editor
+* Validate local game launcher can connect to local server
+
+### Build AssetBuilder
+
+You will need to build the [AssetBundler](https://www.o3de.org/docs/user-guide/packaging/asset-bundler/overview/) tool if not built.
+
+For example:
+```shell
+cmake --build build\windows --target AssetBundler --config profile -- /m /nologo
+```
+
+### Build monolithic game
+
+Build a second version of the executables as monolithic pak builds.
+
+``` shell
+# Create build files for a monolithic build that also disables all user/project registry settings overrides
+cmake -B build\windows_mono -S . -G "Visual Studio 16" -DLY_3RDPARTY_PATH=c:\your\path\to\3rdParty -DLY_MONOLITHIC_GAME=1 -DALLOW_SETTINGS_REGISTRY_DEVELOPMENT_OVERRIDES=0
+
+# Build the profile versions of all the executables
+cmake --build build\windows_mono --target MultiplayerSample.GameLauncher MultiplayerSample.ServerLauncher MultiplayerSample.UnifiedLauncher --config profile -- /m /nologo
+```
+
+The outputs in windows_mono\bin\profile can be copied and run anywhere, once the pak files are put in the proper location.
+
+
+### Bundle Content
+
+Run the AssetBundler
+
+```
+build\windows\bin\profile\AssetBundler.exe --project-path="c:\your\path\to\o3de-multiplayersample"
+```
+
+Follow steps for "Create a bundle for game assets", "Create a bundle for engine assets" and "Add bundles to the release game layout" from https://www.o3de.org/docs/user-guide/packaging/asset-bundler/bundle-assets-for-release/
+
+* The "default seed lists" choice should choose all but 4 seed lists to make the `engine_pc.pak`
+* The other [seed lists](https://github.com/o3de/o3de-multiplayersample/tree/development/AssetBundling/SeedLists) should all get selected to make the `game_pc.pak`.
+
+> It's important to make sure that the bootstrap.game.profile.setreg file has been added to one of the seed files. (also add debug if you want to support debug builds)
+
+### Create the Launcher Zip file
+
+Use the following .bat file or equivalent copy steps to create a directory with the launchers in it:
+```shell
+rem Use this by calling 'make_release D:\my\output\dir' to make a release directory
+mkdir %1
+mkdir %1\Cache
+mkdir %1\Cache\pc
+mkdir %1\Gems
+mkdir %1\Gems\AWSCore
+
+rem Copy the pak files
+copy c:\your\path\to\o3de-multiplayersample\AssetBundling\Bundles\*.pak %1\Cache\pc
+
+rem Copy the executables and DLLs
+copy c:\your\path\to\o3de-multiplayersample\build\windows_mono\bin\profile\*.* %1
+
+rem Copy the AWSCore files
+copy c:\your\path\to\o3de-multiplayersample\build\windows_mono\bin\profile\Gems\AWSCore\*.* %1\Gems\AWSCore
+
+rem Copy the launch_client / launch_server files
+copy c:\your\path\to\o3de-multiplayersample\launch_*.* %1
+
+rem Copy the PIX DLLs if PIX is enabled in the build
+:: copy c:\your\path\to\3rdParty\WinPixEventRuntime\bin\x64 %1
+```
+
+Note: The script above will copy everything from the profile directory. You can either remove files you don't require such as .pdb files to save space, or modify the script to copy just whats needed.
+
+It's recommended during testing that you include source information for your build, such as the commit IDs for o3de, o3de-multiplayersample, and o3de-multiplayersample-assets.
+You can add this as .txt file in the build folder.
+
+Zip up the directory before running it to make sure the zip is "pure" without any logs or artifacts.
+
+### Run the final build to verify it
+
+```shell
+MultiplayerSample.ServerLauncher.exe --console-command-file=launch_server.cfg --rhi=null -NullRenderer -bg_ConnectToAssetProcessor=0 -sys_PakPriority=2 -sv_terminateOnPlayerExit=false
+MultiplayerSample.GameLauncher.exe --console-command-file=launch_client.cfg -bg_ConnectToAssetProcessor=0 -sys_PakPriority=2
+```
+
+After running, check the output logs to verify there aren't any crashes, missing assets, etc. If any assets are missing, go back to the AssetBundler step, add the assets, and repeat.
+
+## Linux profile packaged builds
+
+Instructions for Linux are similar to Windows instructions above. All examples are Ubuntu 22.04 which is the primary Linux platform for O3DE. See https://www.o3de.org/docs/welcome-guide/requirements/ for more details.
+
+## Install WWise
+See instructions above but install Wwise for Linux Ubuntu
+
+### Build profile build and process assets
+
+Build and run MPS as per the [README_LINUX.md](../README_LINUX.md) and ensure all assets are built.

Documentation/ReleaseNotes.md

@@ -0,0 +1,29 @@
+# Release Notes for MultiplayerSample
+
+## O3DE 2305 Release
+
+![2305 Screenshot](Media/2305_screenshot.png)
+
+2305 is the base version of the game. It is expected to be functional and support up to 10 players.
+
+### Testing Notes
+
+| Platform         | In Editor    | Profile PAKs | Release + PAKs |
+|------------------|--------------|--------------|----------------|
+| Windows          | yes - stable | yes - stable | no             |
+| Ubuntu           | yes -stable  | no           | no             |
+| Mobile Platforms | n/a          | no           | no             |
+
+MPS was tested using both LAN hosted servers and using AWS EC2 for remote server testing.
+
+### Known Issues
+
+There are some notable known issues:
+
+* On Linux there's a problem with some actor motionsets appearing to have root motion applied: https://github.com/o3de/o3de-multiplayersample/issues/315
+* For the ServerLauncher there are serialization warnings in the log relating to PopcornFX which are harmless, as PopcornFX is ignored on the Server by design.
+* The game has fixed support for 10 players: https://github.com/o3de/o3de-multiplayersample/issues/351. More than 10 players can join the server, but they will not be able to play the game (nor show correctly in UX).
+* Opening ImGUI can block player input: https://github.com/o3de/o3de-multiplayersample/issues/353
+
+For the complete and up-to-date list of issues, please see [MPS issues](https://github.com/o3de/o3de-multiplayersample/issues?q=is%3Aissue+is%3Aopen+label%3Akind%2Fbug) and [MPS SampleAssets issue](https://github.com/o3de/o3de-multiplayersample-assets/issues).
+

Documentation/SettingsScreen.md

@@ -0,0 +1,47 @@
+# Settings screen
+
+The settings screen contains a set of controls for modifying various options in O3DE. This screen demonstrates how to expose settings from O3DE to the user and how to persist those settings to a file.
+
+## User settings
+### Graphics api
+
+O3DE supports running with multiple different graphics APIs, depending on the platform. The full set of APIs currently supported are the following:
+
+* "null" - A null renderer, nothing is drawn to the screen
+* "dx12" - The DirectX 12 API (Windows only)
+* "vulkan" - The Vulkan API (all platforms)
+* "metal" - The Metal API (iOS / Mac platforms only)
+
+The different APIs use different OS-level and driver-level code, which can result in performance differences based on a user's specific operating system, graphics card, and graphics drivers.
+
+Normally the API is selected through a command-line argument, such as `-rhi="null"`. The setting on the settings screen provides the ability to specify the default API to use on subsequent runs of the launcher.
+
+The implementation of this setting is more complex than the other settings due to how early the setting needs to be applied. The user setting needs to be read in after enough of the engine has been initialized to be able to load in settings from project-specific code, but before the renderer itself has been initialized; the API choice cannot be changed once the renderer is initialized. This timing occurs during the construction of the project's Module class. This setting is implemented by modifying a settings registry key that controls what priority the renderer should use to select an API.
+
+### Texture quality
+
+The Texture Quality setting controls the "mip bias", which is the highest mip level to load for each streamed texture. A value of `0` is the highest-resolution mipmap, `1` is the second-highest mipmap, and so on. This value exposes the tradeoff between quality and memory - the highest-resolution textures look the best but use the most VRAM. The user can choose to lower the quality and lower the VRAM usage, which can help with performance.
+
+In O3DE, the mip bias is exposed through a [CVAR](https://www.o3de.org/docs/user-guide/appendix/cvars/), a settings registry key, and an API. The settings screen uses the API to directly modify the setting.
+
+### Audio volume
+
+The Audio Volume setting controls the master volume for the entire audio system, from `0` (min) to `100` (max). The audio system has data-driven volume channels; each project's audio setup may have a different set of more granular volume controls, such as for music, sound effects, voice, and ambient noise. This setting implements a master volume control, but any of the more granular controls would be implemented in a similar way.
+
+Volume controls for the audio system are exposed through an API, and not through any CVAR or settings registry keys. The settings screen uses the API directly to modify the value.
+
+### Fullscreen
+
+The Fullscreen setting controls whether the launcher is running in a window on the desktop or in fullscreen mode.
+
+The fullscreen/windowed mode selection is controlled by the `r_fullscreen` CVAR. The settings screen demonstrates how to set the cvar from a user setting.
+
+## Modifying and extending the settings screen
+
+See the following source files for the settings screen implementation:
+* [https://github.com/o3de/o3de-multiplayersample/blob/development/Gem/Code/Source/UserSettings/MultiplayerSampleUserSettings.cpp](https://github.com/o3de/o3de-multiplayersample/blob/development/Gem/Code/Source/UserSettings/MultiplayerSampleUserSettings.cpp)
+* [https://github.com/o3de/o3de-multiplayersample/blob/development/Gem/Code/Source/Components/UI/UiSettingsComponent.cpp](https://github.com/o3de/o3de-multiplayersample/blob/development/Gem/Code/Source/Components/UI/UiSettingsComponent.cpp)
+
+The `MultiplayerSampleUserSettings.cpp` file contains the backend logic for loading and saving the user settings and applying the settings to the engine. The default values for each setting can be found here as well. More settings could be exposed and implemented here.
+
+The `UiSettingsComponent.cpp` file contains the UX logic for turning the setting values into user-friendly names and toggle controls. The names and specific choices of which values to expose can be found here. For example, the Master Volume control exposes the volume in increments of 10, but it could be modified to expose more volume values to increment it by 5 or by 1. Similarly, the Graphics API control could be modified to only expose APIs that exist for that platform.
