+<!DOCTYPE html>
|
|
|
+<html lang="en">
|
|
|
+ <head>
|
|
|

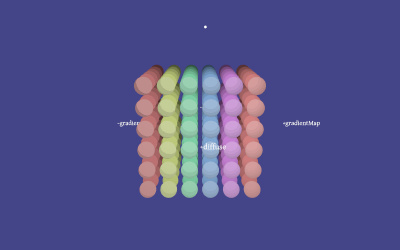

+ <title>three.js webgpu - materials - toon</title>
|
|
|
+ <meta charset="utf-8">
|
|
|
+ <meta name="viewport" content="width=device-width, user-scalable=no, minimum-scale=1.0, maximum-scale=1.0">
|
|
|
+ <link type="text/css" rel="stylesheet" href="main.css">
|
|
|
+ </head>
|
|
|
+ <body>
|
|
|
+
|
|
|
+ <div id="container"></div>
|
|
|
+ <div id="info"><a href="https://threejs.org" target="_blank" rel="noopener">three.js</a> - Toon Material</div>
|
|
|
+
|
|
|
+ <script type="importmap">
|
|
|
+ {
|
|
|
+ "imports": {
|
|
|
+ "three": "../build/three.module.js",
|
|
|
+ "three/addons/": "./jsm/",
|
|
|
+ "three/nodes": "./jsm/nodes/Nodes.js"
|
|
|
+ }
|
|
|
+ }
|
|
|
+ </script>
|
|
|
+
|
|
|
+ <script type="module">
|
|
|
+
|
|
|
+ import * as THREE from 'three';
|
|
|
+
|
|
|
+ import { MeshBasicNodeMaterial, MeshToonNodeMaterial } from 'three/nodes';
|
|
|
+
|
|
|
+ import WebGPU from 'three/addons/capabilities/WebGPU.js';
|
|
|
+ import WebGL from 'three/addons/capabilities/WebGL.js';
|
|
|
+
|
|
|
+ import WebGPURenderer from 'three/addons/renderers/webgpu/WebGPURenderer.js';
|
|
|
+
|
|
|
+ import Stats from 'three/addons/libs/stats.module.js';
|
|
|
+
|
|
|
+ import { OrbitControls } from 'three/addons/controls/OrbitControls.js';
|
|
|
+ import { FontLoader } from 'three/addons/loaders/FontLoader.js';
|
|
|
+ import { TextGeometry } from 'three/addons/geometries/TextGeometry.js';
|
|
|
+
|
|
|
+ let container, stats;
|
|
|
+
|
|
|
+ let camera, scene, renderer;
|
|
|
+ let particleLight;
|
|
|
+
|
|
|
+ const loader = new FontLoader();
|
|
|
+ loader.load( 'fonts/gentilis_regular.typeface.json', function ( font ) {
|
|
|
+
|
|
|
+ init( font );
|
|
|
+
|
|
|
+ } );
|
|
|
+
|
|
|
+ function init( font ) {
|
|
|
+
|
|
|
+ if ( WebGPU.isAvailable() === false && WebGL.isWebGL2Available() === false ) {
|
|
|
+
|
|
|
+ document.body.appendChild( WebGPU.getErrorMessage() );
|
|
|
+
|
|
|
+ throw new Error( 'No WebGPU or WebGL2 support' );
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ container = document.createElement( 'div' );
|
|
|
+ document.body.appendChild( container );
|
|
|
+
|
|
|
+ camera = new THREE.PerspectiveCamera( 40, window.innerWidth / window.innerHeight, 1, 2500 );
|
|
|
+ camera.position.set( 0.0, 400, 400 * 3.5 );
|
|
|
+
|
|
|
+ //
|
|
|
+
|
|
|
+ scene = new THREE.Scene();
|
|
|
+ scene.background = new THREE.Color( 0x444488 );
|
|
|
+
|
|
|
+ //
|
|
|
+
|
|
|
+ renderer = new WebGPURenderer( { antialias: true } );
|
|
|
+ renderer.setPixelRatio( window.devicePixelRatio );
|
|
|
+ renderer.setSize( window.innerWidth, window.innerHeight );
|
|
|
+ renderer.setAnimationLoop( render );
|
|
|
+ container.appendChild( renderer.domElement );
|
|
|
+
|
|
|
+ // Materials
|
|
|
+
|
|
|
+ const cubeWidth = 400;
|
|
|
+ const numberOfSphersPerSide = 5;
|
|
|
+ const sphereRadius = ( cubeWidth / numberOfSphersPerSide ) * 0.8 * 0.5;
|
|
|
+ const stepSize = 1.0 / numberOfSphersPerSide;
|
|
|
+
|
|
|
+ const geometry = new THREE.SphereGeometry( sphereRadius, 32, 16 );
|
|
|
+
|
|
|
+ for ( let alpha = 0, alphaIndex = 0; alpha <= 1.0; alpha += stepSize, alphaIndex ++ ) {
|
|
|
+
|
|
|
+ const colors = new Uint8Array( alphaIndex + 2 );
|
|
|
+
|
|
|
+ for ( let c = 0; c <= colors.length; c ++ ) {
|
|
|
+
|
|
|
+ colors[ c ] = ( c / colors.length ) * 256;
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ const gradientMap = new THREE.DataTexture( colors, colors.length, 1, THREE.RedFormat );
|
|
|
+ gradientMap.needsUpdate = true;
|
|
|
+
|
|
|
+ for ( let beta = 0; beta <= 1.0; beta += stepSize ) {
|
|
|
+
|
|
|
+ for ( let gamma = 0; gamma <= 1.0; gamma += stepSize ) {
|
|
|
+
|
|
|
+ // basic monochromatic energy preservation
|
|
|
+ const diffuseColor = new THREE.Color().setHSL( alpha, 0.5, gamma * 0.5 + 0.1 ).multiplyScalar( 1 - beta * 0.2 );
|
|
|
+
|
|
|
+ const material = new MeshToonNodeMaterial( {
|
|
|
+ color: diffuseColor,
|
|
|
+ gradientMap: gradientMap
|
|
|
+ } );
|
|
|
+
|
|
|
+ const mesh = new THREE.Mesh( geometry, material );
|
|
|
+
|
|
|
+ mesh.position.x = alpha * 400 - 200;
|
|
|
+ mesh.position.y = beta * 400 - 200;
|
|
|
+ mesh.position.z = gamma * 400 - 200;
|
|
|
+
|
|
|
+ scene.add( mesh );
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ function addLabel( name, location ) {
|
|
|
+
|
|
|
+ const textGeo = new TextGeometry( name, {
|
|
|
+
|
|
|
+ font: font,
|
|
|
+
|
|
|
+ size: 20,
|
|
|
+ depth: 1,
|
|
|
+ curveSegments: 1
|
|
|
+
|
|
|
+ } );
|
|
|
+
|
|
|
+ const textMaterial = new MeshBasicNodeMaterial();
|
|
|
+ const textMesh = new THREE.Mesh( textGeo, textMaterial );
|
|
|
+ textMesh.position.copy( location );
|
|
|
+ scene.add( textMesh );
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ addLabel( '-gradientMap', new THREE.Vector3( - 350, 0, 0 ) );
|
|
|
+ addLabel( '+gradientMap', new THREE.Vector3( 350, 0, 0 ) );
|
|
|
+
|
|
|
+ addLabel( '-diffuse', new THREE.Vector3( 0, 0, - 300 ) );
|
|
|
+ addLabel( '+diffuse', new THREE.Vector3( 0, 0, 300 ) );
|
|
|
+
|
|
|
+ particleLight = new THREE.Mesh(
|
|
|
+ new THREE.SphereGeometry( 4, 8, 8 ),
|
|
|
+ new MeshBasicNodeMaterial( { color: 0xffffff } )
|
|
|
+ );
|
|
|
+ scene.add( particleLight );
|
|
|
+
|
|
|
+ // Lights
|
|
|
+
|
|
|
+ scene.add( new THREE.AmbientLight( 0xc1c1c1, 3 ) );
|
|
|
+
|
|
|
+ const pointLight = new THREE.PointLight( 0xffffff, 2, 800, 0 );
|
|
|
+ particleLight.add( pointLight );
|
|
|
+
|
|
|
+ //
|
|
|
+
|
|
|
+ stats = new Stats();
|
|
|
+ container.appendChild( stats.dom );
|
|
|
+
|
|
|
+ const controls = new OrbitControls( camera, renderer.domElement );
|
|
|
+ controls.minDistance = 200;
|
|
|
+ controls.maxDistance = 2000;
|
|
|
+
|
|
|
+ window.addEventListener( 'resize', onWindowResize );
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ function onWindowResize() {
|
|
|
+
|
|
|
+ camera.aspect = window.innerWidth / window.innerHeight;
|
|
|
+ camera.updateProjectionMatrix();
|
|
|
+
|
|
|
+ renderer.setSize( window.innerWidth, window.innerHeight );
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ //
|
|
|
+
|
|
|
+ function render() {
|
|
|
+
|
|
|
+ const timer = Date.now() * 0.00025;
|
|
|
+
|
|
|
+ particleLight.position.x = Math.sin( timer * 7 ) * 300;
|
|
|
+ particleLight.position.y = Math.cos( timer * 5 ) * 400;
|
|
|
+ particleLight.position.z = Math.cos( timer * 3 ) * 300;
|
|
|
+
|
|
|
+ stats.begin();
|
|
|
+
|
|
|
+ renderer.render( scene, camera );
|
|
|
+
|
|
|
+ stats.end();
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ </script>
|
|
|
+
|
|
|
+ </body>
|
|
|
+</html>
|
