#include <simObject.h>

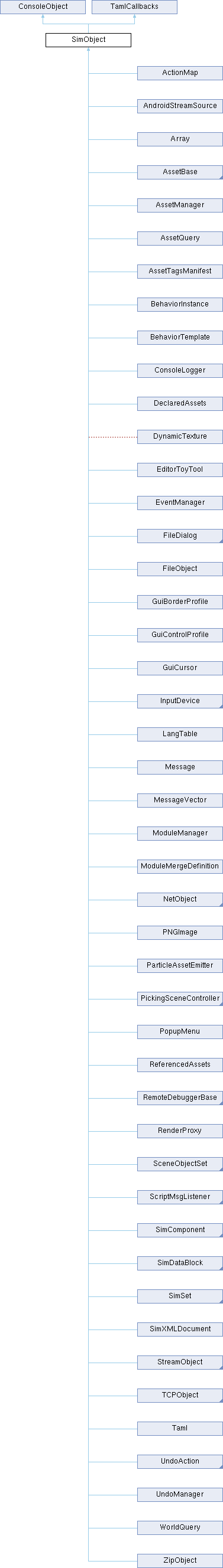

Inheritance diagram for SimObject:

Classes
struct	Notify

Public Types
enum	WriteFlags { SelectedOnly = BIT(0) }

Public Member Functions
StringTableEntry	getClassNamespace () const

StringTableEntry	getSuperClassNamespace () const

void	setClassNamespace (const char *classNamespace)

void	setSuperClassNamespace (const char *superClassNamespace)

void	pushScriptCallbackGuard (void)

void	popScriptCallbackGuard (void)

S32	getScriptCallbackGuard (void)

virtual SimObject *	findObject (const char *name)

Namespace *	getNamespace ()
	Return the object's namespace.

const char *	tabComplete (const char *prevText, S32 baseLen, bool)

virtual void	dump ()

virtual void	dumpClassHierarchy ()

SimObject *	clone (const bool copyDynamicFields)

virtual void	copyTo (SimObject *object)

template<typename T >
bool	isType (void)

virtual bool	handlesConsoleMethod (const char fname, S32 routingId)

	DECLARE_CONOBJECT (SimObject)

Public Member Functions inherited from ConsoleObject
const AbstractClassRep::Field *	findField (StringTableEntry fieldName) const
	Get a reference to a field by name.

virtual AbstractClassRep *	getClassRep () const
	Gets the ClassRep.

bool	setField (const char fieldName, const char value)
	Set the value of a field.

virtual	~ConsoleObject ()

const AbstractClassRep::FieldList &	getFieldList () const
	Get a list of all the fields. This information cannot be modified.

AbstractClassRep::FieldList &	getModifiableFieldList ()

bool &	getDynamicGroupExpand ()

S32	getClassId (U32 netClassGroup) const

const char *	getClassName () const

Static Public Member Functions
static void	initPersistFields ()

Static Public Member Functions inherited from ConsoleObject
static const char *	lookupClassName (const U32 in_classTag)
	Get the classname from a class tag.

static void	initPersistFields ()

static void	consoleInit ()

static AbstractClassRep *	getStaticClassRep ()
	Get the abstract class information for this class.

static AbstractClassRep *	getParentStaticClassRep ()
	Get the abstract class information for this class's superclass.

static ConsoleObject *	create (const char *in_pClassName)

static ConsoleObject *	create (const U32 groupId, const U32 typeId, const U32 in_classId)

Protected Member Functions
virtual void	onTamlPreWrite (void)
	Taml callbacks.

virtual void	onTamlPostWrite (void)
	Called after Taml has finished writing the object.

virtual void	onTamlPreRead (void)
	Called prior to Taml reading the object.

virtual void	onTamlPostRead (const TamlCustomNodes &customNodes)

virtual void	onTamlAddParent (SimObject *pParentObject)
	Called after Taml has finished reading the object and has added the object to any parent.

virtual void	onTamlCustomWrite (TamlCustomNodes &customNodes)
	Called during the writing of the object to allow custom properties to be written.

virtual void	onTamlCustomRead (const TamlCustomNodes &customNodes)
	Called during the reading of the object to allow custom properties to be read.

void	linkNamespaces ()

void	unlinkNamespaces ()

Protected Member Functions inherited from ConsoleObject
	ConsoleObject ()

	ConsoleObject (const ConsoleObject &)

Static Protected Member Functions
static bool	setClass (void obj, const char data)

static bool	setSuperClass (void obj, const char data)

static bool	writeObjectName (void *obj, StringTableEntry pFieldName)

static bool	writeCanSaveDynamicFields (void *obj, StringTableEntry pFieldName)

static bool	writeInternalName (void *obj, StringTableEntry pFieldName)

static bool	setParentGroup (void obj, const char data)

static bool	writeParentGroup (void *obj, StringTableEntry pFieldName)

static bool	writeSuperclass (void *obj, StringTableEntry pFieldName)

static bool	writeClass (void *obj, StringTableEntry pFieldName)

static bool	setProtectedName (void obj, const char data)

Static Protected Member Functions inherited from ConsoleObject
static void	addGroup (const char in_pGroupname, const char in_pGroupDocs=NULL)

static void	endGroup (const char *in_pGroupname)

static void	addField (const char in_pFieldname, const U32 in_fieldType, const dsize_t in_fieldOffset, const U32 in_elementCount=1, EnumTable in_table=NULL, const char *in_pFieldDocs=NULL)

static void	addField (const char in_pFieldname, const U32 in_fieldType, const dsize_t in_fieldOffset, AbstractClassRep::WriteDataNotify in_writeDataFn, const U32 in_elementCount=1, EnumTable in_table=NULL, const char *in_pFieldDocs=NULL)

static void	addField (const char in_pFieldname, const U32 in_fieldType, const dsize_t in_fieldOffset, const char in_pFieldDocs)

static void	addField (const char in_pFieldname, const U32 in_fieldType, const dsize_t in_fieldOffset, AbstractClassRep::WriteDataNotify in_writeDataFn, const char in_pFieldDocs)

static void	addFieldV (const char in_pFieldname, const U32 in_fieldType, const dsize_t in_fieldOffset, ConsoleTypeValidator v, const char *in_pFieldDocs=NULL)

static void	addProtectedField (const char in_pFieldname, const U32 in_fieldType, const dsize_t in_fieldOffset, AbstractClassRep::SetDataNotify in_setDataFn, AbstractClassRep::GetDataNotify in_getDataFn=&defaultProtectedGetFn, const U32 in_elementCount=1, EnumTable in_table=NULL, const char *in_pFieldDocs=NULL)

static void	addProtectedField (const char in_pFieldname, const U32 in_fieldType, const dsize_t in_fieldOffset, AbstractClassRep::SetDataNotify in_setDataFn, AbstractClassRep::GetDataNotify in_getDataFn=&defaultProtectedGetFn, AbstractClassRep::WriteDataNotify in_writeDataFn=&defaultProtectedWriteFn, const U32 in_elementCount=1, EnumTable in_table=NULL, const char *in_pFieldDocs=NULL)

static void	addProtectedField (const char in_pFieldname, const U32 in_fieldType, const dsize_t in_fieldOffset, AbstractClassRep::SetDataNotify in_setDataFn, AbstractClassRep::GetDataNotify in_getDataFn=&defaultProtectedGetFn, const char in_pFieldDocs=NULL)

static void	addProtectedField (const char in_pFieldname, const U32 in_fieldType, const dsize_t in_fieldOffset, AbstractClassRep::SetDataNotify in_setDataFn, AbstractClassRep::GetDataNotify in_getDataFn=&defaultProtectedGetFn, AbstractClassRep::WriteDataNotify in_writeDataFn=&defaultProtectedWriteFn, const char in_pFieldDocs=NULL)

static void	addDepricatedField (const char *fieldName)

static bool	removeField (const char *in_pFieldname)

Protected Attributes
SimObjectId	mId
	Id number for this object.

StringTableEntry	mIdString

Namespace *	mNameSpace

U32	mTypeMask

S32	mScriptCallbackGuard
	Whether the object is executing a script callback.

bool	mCanSaveFieldDictionary
	true if dynamic fields (added at runtime) should be saved, defaults to true

StringTableEntry	mInternalName
	Stores object Internal Name.

StringTableEntry	mClassName
	Stores the class name to link script class namespaces.

StringTableEntry	mSuperClassName
	Stores super class name to link script class namespaces.

Friends
class	SimManager

class	SimGroup

class	SimNameDictionary

class	SimManagerNameDictionary

class	SimIdDictionary

Notification
static SimObject::Notify *	mNotifyFreeList = NULL

static SimObject::Notify *	allocNotify ()
	Get a free Notify structure.

static void	freeNotify (SimObject::Notify *)
	Mark a Notify structure as free.

Notify *	removeNotify (void *ptr, Notify::Type)
	Remove a notification from the list.

void	deleteNotify (SimObject *obj)
	Notify an object when we are deleted.

void	clearNotify (SimObject *obj)
	Notify an object when we are cleared.

void	clearAllNotifications ()
	Remove all notifications for this object.

void	processDeleteNotifies ()
	Send out deletion notifications.

void	registerReference (SimObject **obj)

void	unregisterReference (SimObject **obj)

void	addListener (std::string objID)

void	removeListener (std::string objID)

void	removeAllListeners ()

void	postEvent (std::string eventName, std::string data)

Accessors
static bool	disableNameChanging = false

const char *	getDataField (StringTableEntry slotName, const char *array)

virtual void	setDataField (StringTableEntry slotName, const char array, const char value)

const char *	getPrefixedDataField (StringTableEntry fieldName, const char *array)

void	setPrefixedDataField (StringTableEntry fieldName, const char array, const char value)

const char *	getPrefixedDynamicDataField (StringTableEntry fieldName, const char *array, const S32 fieldType=-1)

void	setPrefixedDynamicDataField (StringTableEntry fieldName, const char array, const char value, const S32 fieldType=-1)

StringTableEntry	getDataFieldPrefix (StringTableEntry fieldName)

U32	getDataFieldType (StringTableEntry slotName, const char *array)

SimFieldDictionary *	getFieldDictionary ()

void	clearDynamicFields (void)
	Clear all dynamic fields.

void	setCanSaveDynamicFields (bool bCanSave)
	Set whether fields created at runtime should be saved. Default is true.

bool	getCanSaveDynamicFields (void) const
	Get whether fields created at runtime should be saved. Default is true.

void	setInternalName (const char *newname)

StringTableEntry	getInternalName ()
	Get the internal of of this control.

virtual bool	save (const char *pcFilePath, bool bOnlySelected=false)
	Save object as a TorqueScript File.

virtual bool	isMethod (const char *methodName)
	Check if a method exists in the objects current namespace.

SimObjectId	getId (void) const

StringTableEntry	getIdString (void) const

U32	getType () const

const StringTableEntry	getName (void) const

void	setId (SimObjectId id)

void	assignName (const char *name)

SimGroup *	getGroup () const

bool	isChildOfGroup (SimGroup *pGroup)

bool	isProperlyAdded () const

bool	isDeleted () const

bool	isRemoved () const

bool	isLocked () const

void	setLocked (bool b)

bool	isHidden () const

void	setHidden (bool b)

void	setProgenitorFile (const char *pFile)

StringTableEntry	getProgenitorFile (void) const

void	setPeriodicTimerID (const S32 timerID)

S32	getPeriodicTimerID (void) const

bool	isPeriodicTimerActive (void) const

bool	isSelected () const

bool	isExpanded () const

void	setSelected (bool sel)

void	setExpanded (bool exp)

void	setModDynamicFields (bool dyn)

void	setModStaticFields (bool sta)

Initialization
	SimObject ()

virtual	~SimObject ()

virtual bool	processArguments (S32 argc, const char **argv)
	Process constructor options. (ie, new SimObject(1,2,3))

Events
virtual bool	onAdd ()
	Called when the object is added to the sim.

virtual void	onRemove ()
	Called when the object is removed from the sim.

virtual void	onGroupAdd ()
	Called when the object is added to a SimGroup.

virtual void	onGroupRemove ()
	Called when the object is removed from a SimGroup.

virtual void	onNameChange (const char *name)
	Called when the object's name is changed.

virtual void	onStaticModified (const char slotName, const char newValue=NULL)

virtual void	inspectPreApply ()

virtual void	inspectPostApply ()

virtual void	onDeleteNotify (SimObject *object)

virtual void	onEditorEnable ()
	Called when the editor is activated.

virtual void	onEditorDisable ()
	Called when the editor is deactivated.

Registration
SimObjects must be registered with the object system.
bool	registerObject ()

bool	registerObject (U32 id)

bool	registerObject (const char *name)

bool	registerObject (const char *name, U32 id)

void	unregisterObject ()

void	deleteObject ()

Sets
The object must be properly registered before you can add/remove it to/from a set. All these functions accept either a name or ID to identify the set you wish to operate on. Then they call addObject or removeObject on the set, which sets up appropriate notifications. An object may be in multiple sets at a time.
bool	addToSet (SimObjectId)

bool	addToSet (const char *)

bool	removeFromSet (SimObjectId)

bool	removeFromSet (const char *)

Serialization
virtual bool	writeField (StringTableEntry fieldname, const char *value)

virtual void	write (Stream &stream, U32 tabStop, U32 flags=0)

virtual void	writeFields (Stream &stream, U32 tabStop)

virtual bool	writeObject (Stream *stream)

virtual bool	readObject (Stream *stream)

virtual void	buildFilterList ()

void	addFieldFilter (const char *fieldName)

void	removeFieldFilter (const char *fieldName)

void	clearFieldFilters ()

bool	isFiltered (const char *fieldName)

void	assignFieldsFrom (SimObject *obj)

void	assignDynamicFieldsFrom (SimObject *obj)

Detailed Description

Base class for objects involved in the simulation.

Introduction

SimObject is a base class for most of the classes you'll encounter working in Torque. It provides fundamental services allowing "smart" object referencing, creation, destruction, organization, and location. Along with SimEvent, it gives you a flexible event-scheduling system, as well as laying the foundation for the in-game editors, GUI system, and other vital subsystems.

Subclassing

You will spend a lot of your time in Torque subclassing, or working with subclasses of, SimObject. SimObject is designed to be easy to subclass.

You should not need to override anything in a subclass except:

The constructor/destructor.
processArguments()
onAdd()/onRemove()
onGroupAdd()/onGroupRemove()
onNameChange()
onStaticModified()
onDeleteNotify()
onEditorEnable()/onEditorDisable()
inspectPreApply()/inspectPostApply()
things from ConsoleObject (see ConsoleObject docs for specifics)

Of course, if you know what you're doing, go nuts! But in most cases, you shouldn't need to touch things not on that list.

When you subclass, you should define a typedef in the class, called Parent, that references the class you're inheriting from.

class mySubClass : public SimObject {
    typedef SimObject Parent;
    ...

Then, when you override a method, put in:

bool mySubClass::onAdd()
{
    if(!Parent::onAdd())
        return false;

    // ... do other things ...
}

Of course, you want to replace onAdd with the appropriate method call.

A SimObject's Life Cycle

SimObjects do not live apart. One of the primary benefits of using a SimObject is that you can uniquely identify it and easily find it (using its ID). Torque does this by keeping a global hierarchy of SimGroups - a tree - containing every registered SimObject. You can then query for a given object using Sim::findObject() (or SimSet::findObject() if you want to search only a specific set).

// Three examples of registering an object.

// Method 1:
AIClient *aiPlayer = new AIClient();
aiPlayer->registerObject();

// Method 2:
ActionMap* globalMap = new ActionMap;
globalMap->registerObject("GlobalActionMap");

// Method 3:
bool reg = mObj->registerObject(id);

Registering a SimObject performs these tasks:

Marks the object as not cleared and not removed.
Assigns the object a unique SimObjectID if it does not have one already.
Adds the object to the global name and ID dictionaries so it can be found again.
Calls the object's onAdd() method. Note: SimObject::onAdd() performs some important initialization steps. See here for details" on how to properly subclass SimObject. - If onAdd() fails (returns false), it calls unregisterObject(). - Checks to make sure that the SimObject was properly initialized (and asserts if not). Calling registerObject() and passing an ID or a name will cause the object to be assigned that name and/or ID before it is registered. Congratulations, you have now registered your object! What now? Well, hopefully, the SimObject will have a long, useful life. But eventually, it must die. There are a two ways a SimObject can die. - First, the game can be shut down. This causes the root SimGroup to be unregistered and deleted. When a SimGroup is unregistered, it unregisters all of its member SimObjects; this results in everything that has been registered with Sim being unregistered, as everything registered with Sim is in the root group. - Second, you can manually kill it off, either by calling unregisterObject() or by calling deleteObject(). When you unregister a SimObject, the following tasks are performed: - The object is flagged as removed. - Notifications are cleaned up. - If the object is in a group, then it removes itself from the group. - Delete notifications are sent out. - Finally, the object removes itself from the Sim globals, and tells Sim to get rid of any pending events for it. If you call deleteObject(), all of the above tasks are performed, in addition to some sanity checking to make sure the object was previously added properly, and isn't in the process of being deleted. After the object is unregistered, it de-allocates itself. @section simobject_editor Torque Editors SimObjects are one of the building blocks for the in-game editors. They provide a basic interface for the editor to be able to list the fields of the object, update them safely and reliably, and inform the object things have changed. This interface is implemented in the following areas: - onNameChange() is called when the object is renamed. - onStaticModified() is called whenever a static field is modified. - inspectPreApply() is called before the object's fields are updated, when changes are being applied. - inspectPostApply() is called after the object's fields are updated. - onEditorEnable() is called whenever an editor is enabled (for instance, when you hit F11 to bring up the world editor). - onEditorDisable() is called whenever the editor is disabled (for instance, when you hit F11 again to close the world editor). (Note: you can check the variable gEditingMission to see if the mission editor is running; if so, you may want to render special indicators. For instance, the fxFoliageReplicator renders inner and outer radii when the mission editor is running.) @section simobject_console The Console SimObject extends ConsoleObject by allowing you to to set arbitrary dynamic fields on the object, as well as statically defined fields. This is done through two methods, setDataField and getDataField, which deal with the complexities of allowing access to two different types of object fields. Static fields take priority over dynamic fields. This is to be expected, as the role of dynamic fields is to allow data to be stored in addition to the predefined fields. The fields in a SimObject are like properties (or fields) in a class. Some fields may be arrays, which is what the array parameter is for; if it's non-null, then it is parsed with dAtoI and used as an index into the array. If you access something as an array which isn't, then you get an empty string. <b>You don't need to read any further than this.</b> Right now, set/getDataField are called a total of 6 times through the entire Torque codebase. Therefore, you probably don't need to be familiar with the details of accessing them. You may want to look at Con::setData instead. Most of the time you will probably be accessing fields directly, or using the scripting language, which in either case means you don't need to do anything special. The functions to get/set these fields are very straightforward: @code setDataField(StringTable->insert("locked", false), NULL, b ? "true" : "false" ); curObject->setDataField(curField, curFieldArray, STR.getStringValue()); setDataField(slotName, array, value);

For advanced users: There are two flags which control the behavior of these functions. The first is ModStaticFields, which controls whether or not the DataField functions look through the static fields (defined with addField; see ConsoleObject for details) of the class. The second is ModDynamicFields, which controls dynamically defined fields. They are set automatically by the console constructor code.

Member Enumeration Documentation

◆ WriteFlags

enum WriteFlags

Enumerator
SelectedOnly	Passed to SimObject::write to indicate that only objects

Constructor & Destructor Documentation

◆ SimObject()

SimObject ( )

◆ ~SimObject()

~SimObject ( )

virtual

Member Function Documentation

◆ addFieldFilter()

void addFieldFilter ( const char * fieldName )

◆ addListener()

void addListener ( std::string objID )

◆ addToSet() [1/2]

bool addToSet ( const char * ObjectName )

◆ addToSet() [2/2]

bool addToSet ( SimObjectId spid )

◆ allocNotify()

SimObject::Notify * allocNotify ( )

staticprotected

Get a free Notify structure.

◆ assignDynamicFieldsFrom()

void assignDynamicFieldsFrom ( SimObject * obj )

Copy dynamic fields from another object onto this one.

Everything from obj will overwrite what's in this object.

Parameters

obj	Object to copy from.

◆ assignFieldsFrom()

void assignFieldsFrom ( SimObject * obj )

Copy fields from another object onto this one.

Objects must be of same type. Everything from obj will overwrite what's in this object; extra fields in this object will remain. This includes dynamic fields.

Parameters

obj	Object to copy from.

◆ assignName()

void assignName ( const char * name )

◆ buildFilterList()

void buildFilterList ( )

virtual

◆ clearAllNotifications()

void clearAllNotifications ( )

Remove all notifications for this object.

◆ clearDynamicFields()

void clearDynamicFields ( void )

inline

Clear all dynamic fields.

◆ clearFieldFilters()

void clearFieldFilters ( )

◆ clearNotify()

void clearNotify ( SimObject * obj )

Notify an object when we are cleared.

◆ clone()

SimObject * clone ( const bool copyDynamicFields )

◆ copyTo()

void copyTo ( SimObject * object )

virtual

◆ DECLARE_CONOBJECT()

DECLARE_CONOBJECT ( SimObject )

◆ deleteNotify()

void deleteNotify ( SimObject * obj )

Notify an object when we are deleted.

◆ deleteObject()

void deleteObject ( )

Unregister, mark as deleted, and free the object.

◆ dump()

void dump ( )

virtual

◆ dumpClassHierarchy()

void dumpClassHierarchy ( )

virtual

◆ findObject()

SimObject * findObject ( const char * name )

virtual

Find a named sub-object of this object.

This is subclassed in the SimGroup and SimSet classes.

For a single object, it just returns NULL, as normal objects cannot have children.

Reimplemented in SceneObjectSet, SimSet, and SimGroup.

◆ freeNotify()

void freeNotify ( SimObject::Notify * note )

staticprotected

Mark a Notify structure as free.

◆ getCanSaveDynamicFields()

bool getCanSaveDynamicFields ( void ) const

inline

Get whether fields created at runtime should be saved. Default is true.

◆ getClassNamespace()

StringTableEntry getClassNamespace ( ) const

inline

◆ getDataField()

const char * getDataField	(	StringTableEntry	slotName,
		const char *	array
	)

◆ getDataFieldPrefix()

StringTableEntry getDataFieldPrefix ( StringTableEntry fieldName )

◆ getDataFieldType()

U32 getDataFieldType	(	StringTableEntry	slotName,
		const char *	array
	)

Get the type of a field on the object.

Parameters

slotName	Field to access.
array	String containing index into array (if field is an array); if NULL, it is ignored.

◆ getFieldDictionary()

SimFieldDictionary * getFieldDictionary ( )

inline

Get reference to the dictionary containing dynamic fields.

See here for a detailed discussion of what this function does.

This dictionary can be iterated over using a SimFieldDictionaryIterator.

◆ getGroup()

SimGroup * getGroup ( ) const

inline

◆ getId()

SimObjectId getId ( void ) const

inline

◆ getIdString()

StringTableEntry getIdString ( void ) const

inline

◆ getInternalName()

StringTableEntry getInternalName ( )

Get the internal of of this control.

◆ getName()

const StringTableEntry getName ( void ) const

inline

◆ getNamespace()

Namespace * getNamespace ( )

inline

Return the object's namespace.

◆ getPeriodicTimerID()

S32 getPeriodicTimerID ( void ) const

inline

◆ getPrefixedDataField()

const char * getPrefixedDataField	(	StringTableEntry	fieldName,
		const char *	array
	)

◆ getPrefixedDynamicDataField()

const char * getPrefixedDynamicDataField	(	StringTableEntry	fieldName,
		const char *	array,
		const S32	fieldType = `-1`
	)

◆ getProgenitorFile()

StringTableEntry getProgenitorFile ( void ) const

inline

◆ getScriptCallbackGuard()

S32 getScriptCallbackGuard ( void )

inline

◆ getSuperClassNamespace()

StringTableEntry getSuperClassNamespace ( ) const

inline

◆ getType()

U32 getType ( ) const

inline

◆ handlesConsoleMethod()

virtual bool handlesConsoleMethod	(	const char *	fname,
		S32 *	routingId
	)

inlinevirtual

Reimplemented in BehaviorComponent, and DynamicConsoleMethodComponent.

◆ initPersistFields()

void initPersistFields ( )

static

◆ inspectPostApply()

void inspectPostApply ( )

virtual

Called after any property of the object is changed in the world editor.

See also: inspectPreApply

Reimplemented in GuiSceneObjectCtrl, GuiChainCtrl, GuiFrameSetCtrl, GuiGridCtrl, GuiScrollCtrl, GuiInspector, GuiMenuBarCtrl, GuiMenuItemCtrl, GuiControl, GuiMessageVectorCtrl, and GuiTextEditCtrl.

◆ inspectPreApply()

void inspectPreApply ( )

virtual

Specifically, this is called by setDataField when a static field is modified, see the console details. Called before any property of the object is changed in the world editor.

The calling order here is:

Reimplemented in GuiChainCtrl, and GuiControl.

◆ isChildOfGroup()

bool isChildOfGroup ( SimGroup * pGroup )

◆ isDeleted()

bool isDeleted ( ) const

inline

◆ isExpanded()

bool isExpanded ( ) const

inline

◆ isFiltered()

bool isFiltered ( const char * fieldName )

◆ isHidden()

bool isHidden ( ) const

inline

◆ isLocked()

bool isLocked ( ) const

inline

◆ isMethod()

bool isMethod ( const char * methodName )

virtual

Check if a method exists in the objects current namespace.

◆ isPeriodicTimerActive()

bool isPeriodicTimerActive ( void ) const

inline

◆ isProperlyAdded()

bool isProperlyAdded ( ) const

inline

◆ isRemoved()

bool isRemoved ( ) const

inline

◆ isSelected()

bool isSelected ( ) const

inline

◆ isType()

template<typename T >

bool isType ( void )

inline

◆ linkNamespaces()

void linkNamespaces ( )

protected

◆ onAdd()

bool onAdd ( void )

virtual

Called when the object is added to the sim.

Reimplemented in AnimationAsset, FontAsset, ImageAsset, EditorToySceneWindow, EditorToyTool, SceneWindow, Scene, CompositeSprite, LightObject, SceneObject, Scroller, ShapeVector, TextSprite, Trigger, AssetManager, NameTags, UndoScriptAction, BehaviorComponent, BehaviorInstance, BehaviorTemplate, SimComponent, Array, GameConnection, GuiFrameSetCtrl, GuiFrameSetCtrl, GuiPanelCtrl, GuiTabBookCtrl, GuiEditCtrl, GuiInspectorField, GuiInspectorGroup, GuiInspectorDynamicField, GuiControl, GuiMessageVectorCtrl, GuiTextEditCtrl, GuiBorderProfile, GuiControlProfile, MessageVector, ActionMap, FileStreamObject, StreamObject, ModuleManager, NetObject, TCPObject, SimXMLDocument, Taml, PopupMenu, UInputManager, SimDataBlock, and GuiCursor.

◆ onDeleteNotify()

void onDeleteNotify ( SimObject * object )

virtual

Called when a SimObject is deleted.

When you are on the notification list for another object and it is deleted, this method is called.

Reimplemented in ParticleAsset, Scene, Path, SceneObjectSet, BehaviorComponent, ModuleManager, UInputManager, and SimSet.

◆ onEditorDisable()

virtual void onEditorDisable ( )

inlinevirtual

Called when the editor is deactivated.

◆ onEditorEnable()

virtual void onEditorEnable ( )

inlinevirtual

Called when the editor is activated.

◆ onGroupAdd()

void onGroupAdd ( )

virtual

Called when the object is added to a SimGroup.

◆ onGroupRemove()

void onGroupRemove ( )

virtual

Called when the object is removed from a SimGroup.

Reimplemented in GuiControl.

◆ onNameChange()

void onNameChange ( const char * name )

virtual

Called when the object's name is changed.

◆ onRemove()

void onRemove ( )

virtual

Called when the object is removed from the sim.

Reimplemented in AnimationAsset, FontAsset, ImageAsset, EditorToySceneWindow, EditorToyTool, SceneWindow, Scene, CompositeSprite, LightObject, SceneObject, SceneObjectSet, Scroller, ShapeVector, TextSprite, AssetManager, UndoScriptAction, BehaviorComponent, BehaviorInstance, BehaviorTemplate, SimComponent, Array, GameConnection, GuiTabBookCtrl, GuiEditCtrl, GuiControl, GuiMessageVectorCtrl, GuiCursor, GuiBorderProfile, MessageVector, ModuleManager, NetConnection, NetObject, SimXMLDocument, Taml, PopupMenu, UInputManager, SimDataBlock, SimSet, and SimGroup.

◆ onStaticModified()

void onStaticModified	(	const char *	slotName,
		const char *	newValue = `NULL`
	)

virtual

Called when a static field is modified.

Reimplemented in SimDataBlock.

◆ onTamlAddParent()

virtual void onTamlAddParent ( SimObject * pParentObject )

inlineprotectedvirtual

Called after Taml has finished reading the object and has added the object to any parent.

Implements TamlCallbacks.

Reimplemented in ParticlePlayer.

◆ onTamlCustomRead()

virtual void onTamlCustomRead ( const TamlCustomNodes & customNodes )

inlineprotectedvirtual

Called during the reading of the object to allow custom properties to be read.

Implements TamlCallbacks.

Reimplemented in FontAsset, ImageAsset, ParticleAsset, ParticleAssetEmitter, Scene, CompositeSprite, SceneObject, AssetQuery, AssetTagsManifest, BehaviorComponent, and GuiFrameSetCtrl.

◆ onTamlCustomWrite()

virtual void onTamlCustomWrite ( TamlCustomNodes & customNodes )

inlineprotectedvirtual

Called during the writing of the object to allow custom properties to be written.

Implements TamlCallbacks.

Reimplemented in FontAsset, ImageAsset, ParticleAsset, ParticleAssetEmitter, Scene, CompositeSprite, SceneObject, AssetQuery, AssetTagsManifest, BehaviorComponent, and GuiFrameSetCtrl.

◆ onTamlPostRead()

virtual void onTamlPostRead ( const TamlCustomNodes & customNodes )

inlineprotectedvirtual

Called after Taml has finished reading the object. The custom properties is additionally passed here for object who want to process it at the end of reading.

Implements TamlCallbacks.

Reimplemented in Scene.

◆ onTamlPostWrite()

virtual void onTamlPostWrite ( void )

inlineprotectedvirtual

Called after Taml has finished writing the object.

Implements TamlCallbacks.

Reimplemented in FontAsset, ImageAsset, and AudioAsset.

◆ onTamlPreRead()

virtual void onTamlPreRead ( void )

inlineprotectedvirtual

Called prior to Taml reading the object.

Implements TamlCallbacks.

Reimplemented in Scene.

◆ onTamlPreWrite()

virtual void onTamlPreWrite ( void )

inlineprotectedvirtual

Taml callbacks.

Implements TamlCallbacks.

Reimplemented in FontAsset, ImageAsset, and AudioAsset.

◆ popScriptCallbackGuard()

void popScriptCallbackGuard ( void )

inline

◆ postEvent()

void postEvent	(	std::string	eventName,
		std::string	data
	)

◆ processArguments()

bool processArguments	(	S32	argc,
		const char **	argv
	)

virtual

Process constructor options. (ie, new SimObject(1,2,3))

Reimplemented in SimComponent, ConsoleLogger, TCPObject, SimXMLDocument, and SimGroup.

◆ processDeleteNotifies()

void processDeleteNotifies ( )

Send out deletion notifications.

◆ pushScriptCallbackGuard()

void pushScriptCallbackGuard ( void )

inline

◆ readObject()

bool readObject ( Stream * stream )

virtual

Reimplemented in SimSet.

◆ registerObject() [1/4]

bool registerObject ( )

Register an object with the object system.

This must be called if you want to keep the object around. In the rare case that you will delete the object immediately, or don't want to be able to use Sim::findObject to locate it, then you don't need to register it.

registerObject adds the object to the global ID and name dictionaries, after first assigning it a new ID number. It calls onAdd(). If onAdd fails, it unregisters the object and returns false.

If a subclass's onAdd doesn't eventually call SimObject::onAdd(), it will cause an assertion.

◆ registerObject() [2/4]

bool registerObject ( const char * name )

Register the object, assigning the name.

See also: registerObject()

Parameters

name	Name to assign to the object.

◆ registerObject() [3/4]

bool registerObject	(	const char *	name,
		U32	id
	)

Register the object, assigning a name and ID.

See also: registerObject()

Parameters

name	Name to assign to the object.
id	ID to assign to the object.

◆ registerObject() [4/4]

bool registerObject ( U32 id )

Register the object, forcing the id.

See also: registerObject()

Parameters

id	ID to assign to the object.

◆ registerReference()

void registerReference ( SimObject ** obj )

Register a reference to this object.

You pass a pointer to your reference to this object.

When the object is deleted, it will null your pointer, ensuring you don't access old memory.

Parameters

obj	Pointer to your reference to the object.

◆ removeAllListeners()

void removeAllListeners ( )

◆ removeFieldFilter()

void removeFieldFilter ( const char * fieldName )

◆ removeFromSet() [1/2]

bool removeFromSet ( const char * objectName )

◆ removeFromSet() [2/2]

bool removeFromSet ( SimObjectId sid )

◆ removeListener()

void removeListener ( std::string objID )

◆ removeNotify()

SimObject::Notify * removeNotify	(	void *	ptr,
		Notify::Type	type
	)

Remove a notification from the list.

◆ save()

bool save	(	const char *	pcFilePath,
		bool	bOnlySelected = `false`
	)

virtual

Save object as a TorqueScript File.

◆ setCanSaveDynamicFields()

void setCanSaveDynamicFields ( bool bCanSave )

inline

Set whether fields created at runtime should be saved. Default is true.

◆ setClass()

static bool setClass	(	void *	obj,
		const char *	data
	)

inlinestaticprotected

◆ setClassNamespace()

void setClassNamespace ( const char * classNamespace )

◆ setDataField()

void setDataField	(	StringTableEntry	slotName,
		const char *	array,
		const char *	value
	)

virtual

Set the value of a field on the object.

See here for a detailed discussion of what this function does.

Parameters

slotName	Field to access.
array	String containing index into array; if NULL, it is ignored.
value	Value to store.

Reimplemented in GuiControl.

◆ setExpanded()

void setExpanded ( bool exp )

inline

◆ setHidden()

void setHidden ( bool b = true )

◆ setId()

void setId ( SimObjectId id )

◆ setInternalName()

void setInternalName ( const char * newname )

These functions support internal naming that is not namespace bound for locating child controls in a generic way.

Set the internal name of this control (Not linked to a namespace)

◆ setLocked()

void setLocked ( bool b = true )

◆ setModDynamicFields()

void setModDynamicFields ( bool dyn )

inline

◆ setModStaticFields()

void setModStaticFields ( bool sta )

inline

◆ setParentGroup()

bool setParentGroup	(	void *	obj,
		const char *	data
	)

staticprotected

◆ setPeriodicTimerID()

void setPeriodicTimerID ( const S32 timerID )

inline

◆ setPrefixedDataField()

void setPrefixedDataField	(	StringTableEntry	fieldName,
		const char *	array,
		const char *	value
	)

◆ setPrefixedDynamicDataField()

void setPrefixedDynamicDataField	(	StringTableEntry	fieldName,
		const char *	array,
		const char *	value,
		const S32	fieldType = `-1`
	)

◆ setProgenitorFile()

void setProgenitorFile ( const char * pFile )

inline

◆ setProtectedName()

bool setProtectedName	(	void *	obj,
		const char *	data
	)

staticprotected

◆ setSelected()

void setSelected ( bool sel )

inline

◆ setSuperClass()

static bool setSuperClass	(	void *	obj,
		const char *	data
	)

inlinestaticprotected

◆ setSuperClassNamespace()

void setSuperClassNamespace ( const char * superClassNamespace )

◆ tabComplete()

const char * tabComplete	(	const char *	prevText,
		S32	baseLen,
		bool	fForward
	)

Get next matching item in namespace.

This wraps a call to Namespace::tabComplete; it gets the next thing in the namespace, given a starting value and a base length of the string. See Namespace::tabComplete for details.

◆ unlinkNamespaces()

void unlinkNamespaces ( )

protected

◆ unregisterObject()

void unregisterObject ( )

Unregister the object from Sim.

This performs several operations:

Sets the removed flag.
Call onRemove()
Clear out notifications.
Remove the object from...
- its group, if any. (via getGroup)
- Sim::gNameDictionary
- Sim::gIDDictionary
Finally, cancel any pending events for this object (as it can't receive them now).

◆ unregisterReference()

void unregisterReference ( SimObject ** obj )

Unregister a reference to this object.

Remove a reference from the list, so that it won't get nulled inappropriately.

Call this when you're done with your reference to the object, especially if you're going to free the memory. Otherwise, you may erroneously get something overwritten.

See also: registerReference

◆ write()

void write	(	Stream &	stream,
		U32	tabStop,
		U32	flags = `0`
	)

virtual

Output the TorqueScript to recreate this object.

This calls writeFields internally.

Parameters

stream	Stream to output to.
tabStop	Indentation level for this object.
flags	If SelectedOnly is passed here, then only objects marked as selected (using setSelected) will output themselves.

Reimplemented in GuiControl, NameTags, BehaviorComponent, SimComponent, and SimSet.

◆ writeCanSaveDynamicFields()

static bool writeCanSaveDynamicFields	(	void *	obj,
		StringTableEntry	pFieldName
	)

inlinestaticprotected

◆ writeClass()

static bool writeClass	(	void *	obj,
		StringTableEntry	pFieldName
	)

inlinestaticprotected

◆ writeField()

bool writeField	(	StringTableEntry	fieldname,
		const char *	value
	)

virtual

Determine whether or not a field should be written.

Parameters

fieldname	The name of the field being written.
value	The value of the field.

Reimplemented in SceneObject, and SimComponent.

◆ writeFields()

void writeFields	(	Stream &	stream,
		U32	tabStop
	)

virtual

Write the fields of this object in TorqueScript.

Parameters

stream	Stream for output.
tabStop	Indentation level for the fields.

Reimplemented in NameTags, and GuiFrameSetCtrl.

◆ writeInternalName()

static bool writeInternalName	(	void *	obj,
		StringTableEntry	pFieldName
	)

inlinestaticprotected

◆ writeObject()

bool writeObject ( Stream * stream )

virtual

Reimplemented in SimSet.

◆ writeObjectName()

static bool writeObjectName	(	void *	obj,
		StringTableEntry	pFieldName
	)

inlinestaticprotected

◆ writeParentGroup()

static bool writeParentGroup	(	void *	obj,
		StringTableEntry	pFieldName
	)

inlinestaticprotected

◆ writeSuperclass()

static bool writeSuperclass	(	void *	obj,
		StringTableEntry	pFieldName
	)

inlinestaticprotected

Friends And Related Symbol Documentation

◆ SimGroup

friend class SimGroup

friend

◆ SimIdDictionary

friend class SimIdDictionary

friend

◆ SimManager

friend class SimManager

friend

◆ SimManagerNameDictionary

friend class SimManagerNameDictionary

friend

◆ SimNameDictionary

friend class SimNameDictionary

friend

Member Data Documentation

◆ disableNameChanging

bool disableNameChanging = false

static

Get the value of a field on the object.

See here for a detailed discussion of what this function does.

Parameters

slotName	Field to access.
array	String containing index into array (if field is an array); if NULL, it is ignored.

◆ mCanSaveFieldDictionary

bool mCanSaveFieldDictionary

protected

true if dynamic fields (added at runtime) should be saved, defaults to true

◆ mClassName

StringTableEntry mClassName

protected

Stores the class name to link script class namespaces.

◆ mId

SimObjectId mId

protected

Id number for this object.

◆ mIdString

StringTableEntry mIdString

protected

◆ mInternalName

StringTableEntry mInternalName

protected

Stores object Internal Name.

◆ mNameSpace

Namespace* mNameSpace

protected

◆ mNotifyFreeList

SimObject::Notify * mNotifyFreeList = NULL

staticprotected

◆ mScriptCallbackGuard

S32 mScriptCallbackGuard

protected

Whether the object is executing a script callback.

◆ mSuperClassName

StringTableEntry mSuperClassName

protected

Stores super class name to link script class namespaces.

◆ mTypeMask

U32 mTypeMask

protected

The documentation for this class was generated from the following files:

sim/simObject.h
sim/simObject.cc
sim/simSerialize.cpp
sim/simSet.cc

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Friends

Notification

Accessors

Initialization

Events

Registration

Sets

Serialization

Detailed Description

Introduction

Subclassing

A SimObject's Life Cycle

Member Enumeration Documentation

◆ WriteFlags

Constructor & Destructor Documentation

◆ SimObject()

◆ ~SimObject()

Member Function Documentation

◆ addFieldFilter()

◆ addListener()

◆ addToSet() [1/2]

◆ addToSet() [2/2]

◆ allocNotify()

◆ assignDynamicFieldsFrom()

◆ assignFieldsFrom()

◆ assignName()

◆ buildFilterList()

◆ clearAllNotifications()

◆ clearDynamicFields()

◆ clearFieldFilters()

◆ clearNotify()

◆ clone()

◆ copyTo()

◆ DECLARE_CONOBJECT()

◆ deleteNotify()

◆ deleteObject()

◆ dump()

◆ dumpClassHierarchy()

◆ findObject()

◆ freeNotify()

◆ getCanSaveDynamicFields()

◆ getClassNamespace()

◆ getDataField()

◆ getDataFieldPrefix()

◆ getDataFieldType()

◆ getFieldDictionary()

◆ getGroup()

◆ getId()

◆ getIdString()

◆ getInternalName()

◆ getName()

◆ getNamespace()

◆ getPeriodicTimerID()

◆ getPrefixedDataField()

◆ getPrefixedDynamicDataField()

◆ getProgenitorFile()

◆ getScriptCallbackGuard()

◆ getSuperClassNamespace()

◆ getType()

◆ handlesConsoleMethod()

◆ initPersistFields()

◆ inspectPostApply()

◆ inspectPreApply()

◆ isChildOfGroup()

◆ isDeleted()

◆ isExpanded()

◆ isFiltered()

◆ isHidden()

◆ isLocked()

◆ isMethod()

◆ isPeriodicTimerActive()

◆ isProperlyAdded()

◆ isRemoved()
